5
Parts included:
1. SDV2950 Antenna 1
2. 12VDC, 200mA Power Injector 1
3. Main Bracket 1
4. 1/2" washer screws 6
5. U-Bolts 2
6. Mast clamps 2
7. Wing-nuts 4
8. L-Bracket (already mounted) 2
9. 2" Wood Screws 2
10. 20' RG-59U cable with connectors 1
11. Weather Boot 1

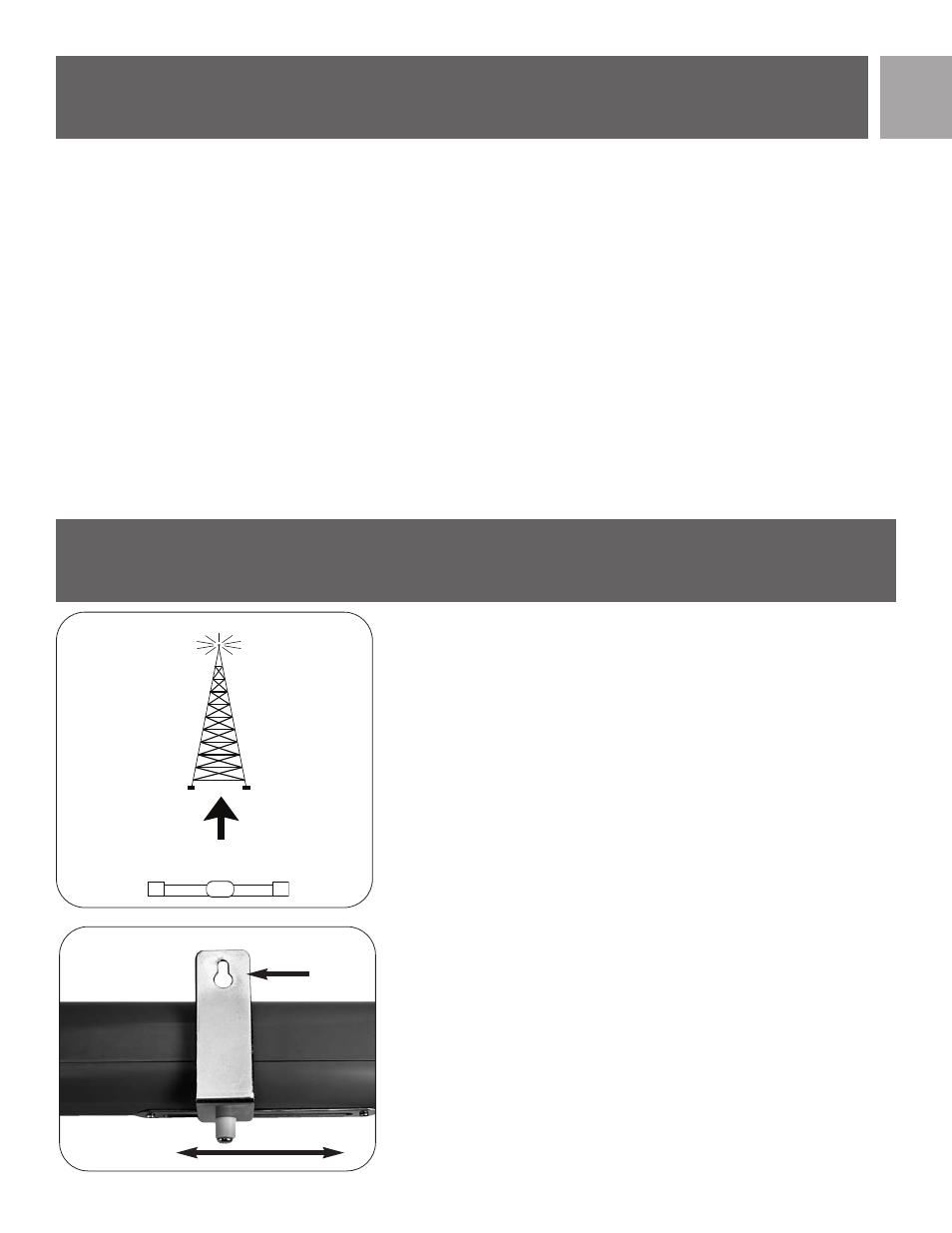

Determining signal strength
Before Installation determine the best location for optimum
reception. It is important for the antenna to have an unobstructed
path to the transmitter. To determine the transmitter(s) location
you can consult the website http://www.antennaweb.org. For best
results the antenna should be facing to the transmitter locations as
shown at left.
Wall mounting the unit (indoor or outdoor)
Do all the antenna assembly work on the ground. Raise the
completed antenna after assembly.
1. Using the L brackets as a guide mark position for the two 2” wood
screws. If possible locate a stud to screw into, adjusting the L brack-
ets accordingly.If studs are not available use appropriate wall anchors
(not included, available at any hardware store). Screw the wood
screws into the wall but leave about 1/2” to allow for the last step.
Included with Antenna
Mounting Antenna
Fig A
EN
