- 13 (E) -

How to set up the system

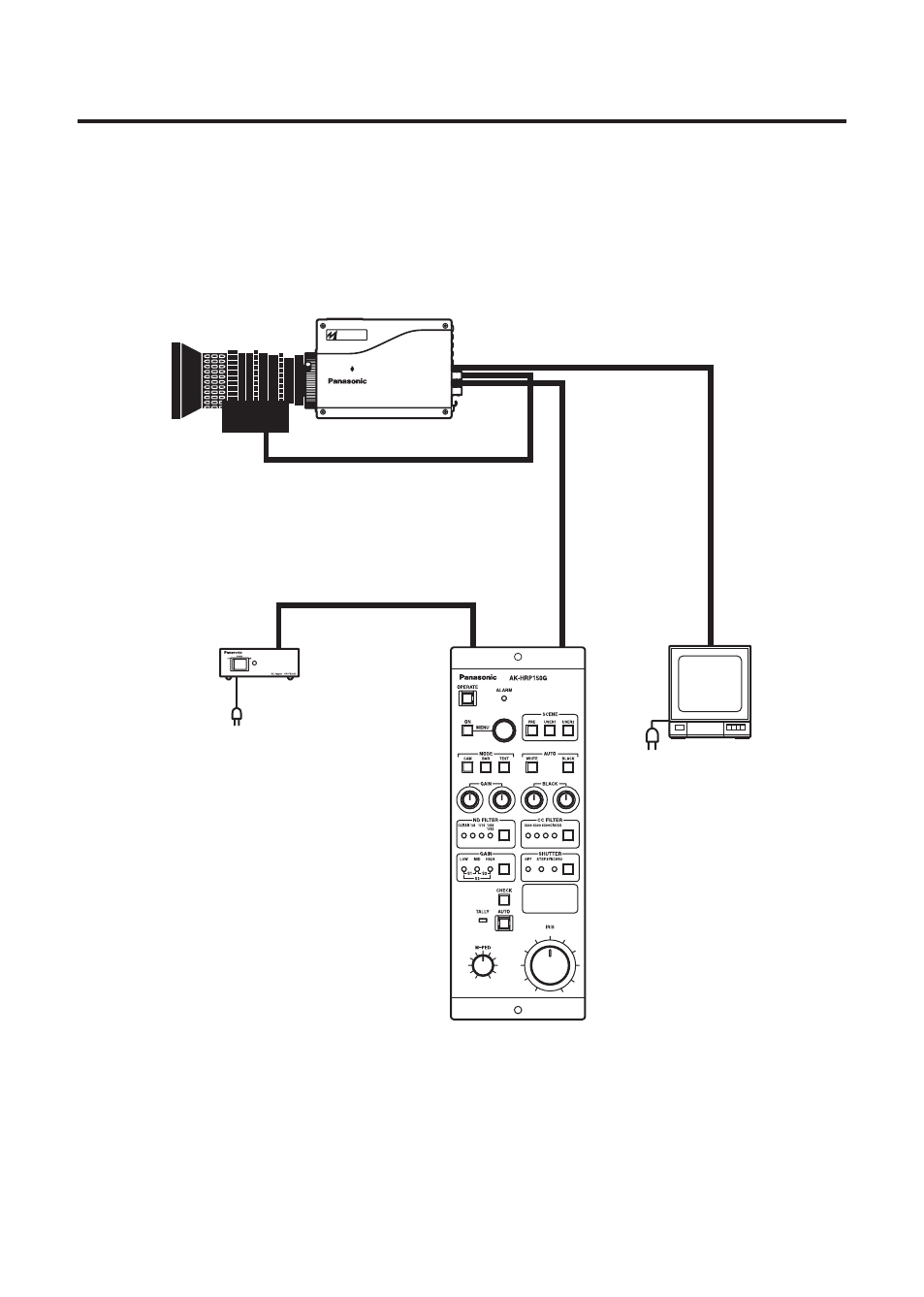

Configuration example 1: Connection of camera controller

 Use multi cable supplied with AK-HRP150G for the connection of camera controller

AK-HRP150G and this unit.



Before connecting the cables, be sure to set the power switch of AC adapter to OFF.



Connect the multi cable to the interface connector of the camera, and the opposite

side to camera controller.



Set the AC adapter power switch to ON, then the camera can be controlled.



After shooting, set the AC adapter power switch to OFF.

AK-HC1500G

ULTI FORMAT

DIGITAL CAMERA SYSTEM

Multi cable

(POWER + CONTROL)

Lens

Multi purpose camera

AK-HC1500G

Camera controller

AK-HRP150G

AC adapter

AW-PS505A

Monitor

HD SDI OUT

IRIS
