2.2 POE-400 and POE-152S, the IEEE 802.3af Injector / Splitter and equipment installation
For the places hard to find the power inlet, the POE-400 provide the easiest way to power your Ethernet devices such as
PLANET IEEE 802.3af Power over Ethernet Splitter( POE-152S) with Internet Camera (ICA-210 ) or Wireless Access
Point (WAP-4060PE) installed in the small office.
To control the power system of your networking devices, the POE-400 can directly co-work with PLANET ICA-100PE and
POE IP Phone VIP-153PT to build VoIP telephony network in the office. Besides, the POE-400 can be directly deployed to
connect the third party IEEE 802.3af devices like Cisco AP and POE switches installed 100 meters away.

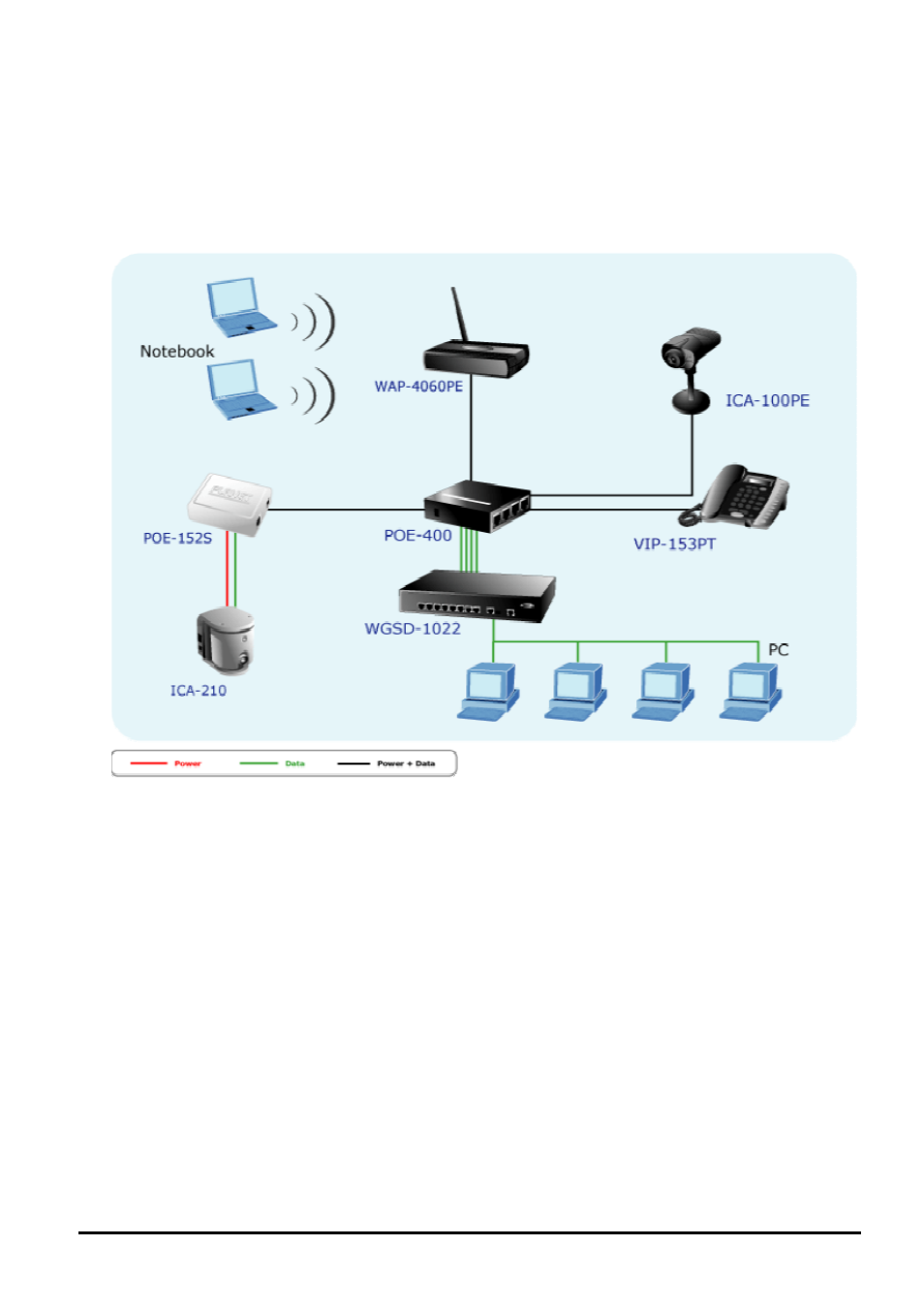

Figure 1: Connection architecture over POE-400
Notice:
1. According to IEEE 802.3af standard, the POE-400 will not inject power to the cable if not connecting to IEEE 802.3af
devices.
2. Due to the capability of IEEE 802.3af standard, the POE-400 can directly connect with any IEEE 802.3af end-nodes.
