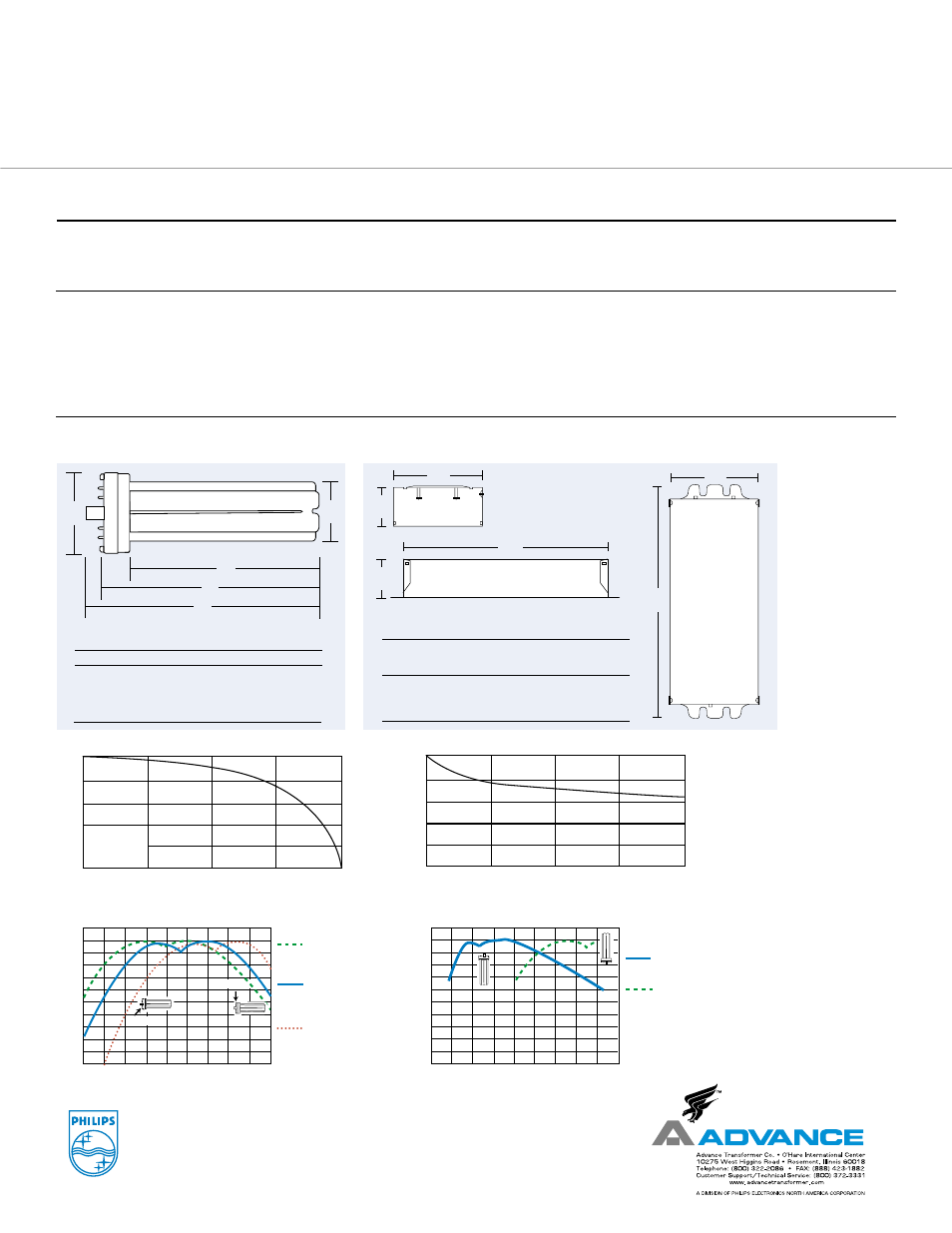

ALTO ® PL-H ™ Compact Fluorescent Lamps
Electrical,Technical and Ordering Data (Subject to change without notice)
6.89"
1.31"
3.00"
1.31"
7.79"
3.00"
Ballast Side View
Ballast Top View
System Lumen
Ballast For Wattage Output
Type Lamp (W) (Lumens)
1 x 60W PL-H 70 4000
2 x 60W PL-H 137 8000 ICF-1H120-M4-LD
1 x 85W PL-H 98 6000 ICF1H120-M4-BS
1 x 120W PL-H 137 9000
Ballast
End View
Advance Transformer
Type A Max. B Max. C Max.
Cap/Base 2G8
60W
5.55" 6.57" 7.17"
85W 7.17" 8.19" 8.78"
120W 10.20" 11.22" 11.81"
Maximum Lamp Dimensions
Lumen Output vs. Temperature—
Horizontal Amalgam Up or D own
Relativ
e
Luminous Flux (%)
105
100
95
90
85
80
75
70
65
60
55
50
0 10 20 30 40 50 60 70 80 100
Ambient Temperature in ºC (in draught-free air)
Amalgam
Amalgam
Horizontal
Amalgam Up
Horizontal
Amalgam
Middle
Horizontal
Amalgam
Under
Lumen Output vs. Temperature—
Base Up or Down
Relativ
e
Luminous Flux (%)
105
100
95
90
85
80
75
70
65
60
55
50
-10 0 10 20 30 40 50 60 70 80
Ambient Temperature in ºC (in draught-free air)
Base Up
Base Down
A
B
C
2.24" Max. 2.58" Max.
Life Expectancy at 12 Hours per Start
Operating Hours
Sur
vivals in %
Typical Values:
5.000 hrs: 98%
10.000 hrs: 97%
15.000 hrs: 88%
100
90
80
70
60
50
0 5000 10,000 15,000 20,000
Lumen Maintenance
Operating Hours
Lumen In %
100
90
80
70
60
50
0 5000 10,000 15,000 20,000
{
Max.
Product Standard Lamp Approx. Overall Average Color Color
Number Ordering Nominal Lamp Package Current Initial Design Length Rated Temp. Rendering
046677- Code Watts Base Qty. (mA) Volts Lumens 1 Lumens 2 (In.) Life (Hrs.) 3 (Kelvin) Index (CRI)
830
13368-6
PL-H 60W/830/4P 60 2G8-1 10 800 80 4000 3440 7 11 ⁄
64
20,000 3000K 82
13370-2 PL-H 85W/830/4P 85 2G8-1 10 800 110 6000 5160 8 25 ⁄
32
20,000 3000K 82
13372-8 PL-H 120W/830/4P 120 2G8-1 10 800 153 9000 7740 11 13 ⁄
16
20,000 3000K 82
841
13369-4
PL-H 60W/841/4P 60 2G8-1 10 800 80 4000 3440 7 11 ⁄
64
20,000 4100K 82
13371-0 PL-H 85W/841/4P 85 2G8-1 10 800 110 6000 5160 8 25 ⁄
32
20,000 4100K 82
13373-6 PL-H 120W/841/4P 120 2G8-1 10 800 153 9000 7740 11 13 ⁄
16
20,000 4100K 82
1) Approximate initial lumens.The lamp lumen output is based upon lamp performance after 100 hours of operating life, when the output is measured during operation on a reference ballast under standard laboratory conditions.
2) Design lumens are the approximate lamp lumen output at 40% of the lamp’s rated average life.This output is based upon measurements obtained during lamp operation on a reference ballast under standard laboratory conditions.
3) Average life under specified test conditions with lamps turned off and restarted no more frequently than once every 12 operating hours. Life is 18,000 hours at 3 hours per start.
