Philips 20HF User Manual
Page 20
42” TVs

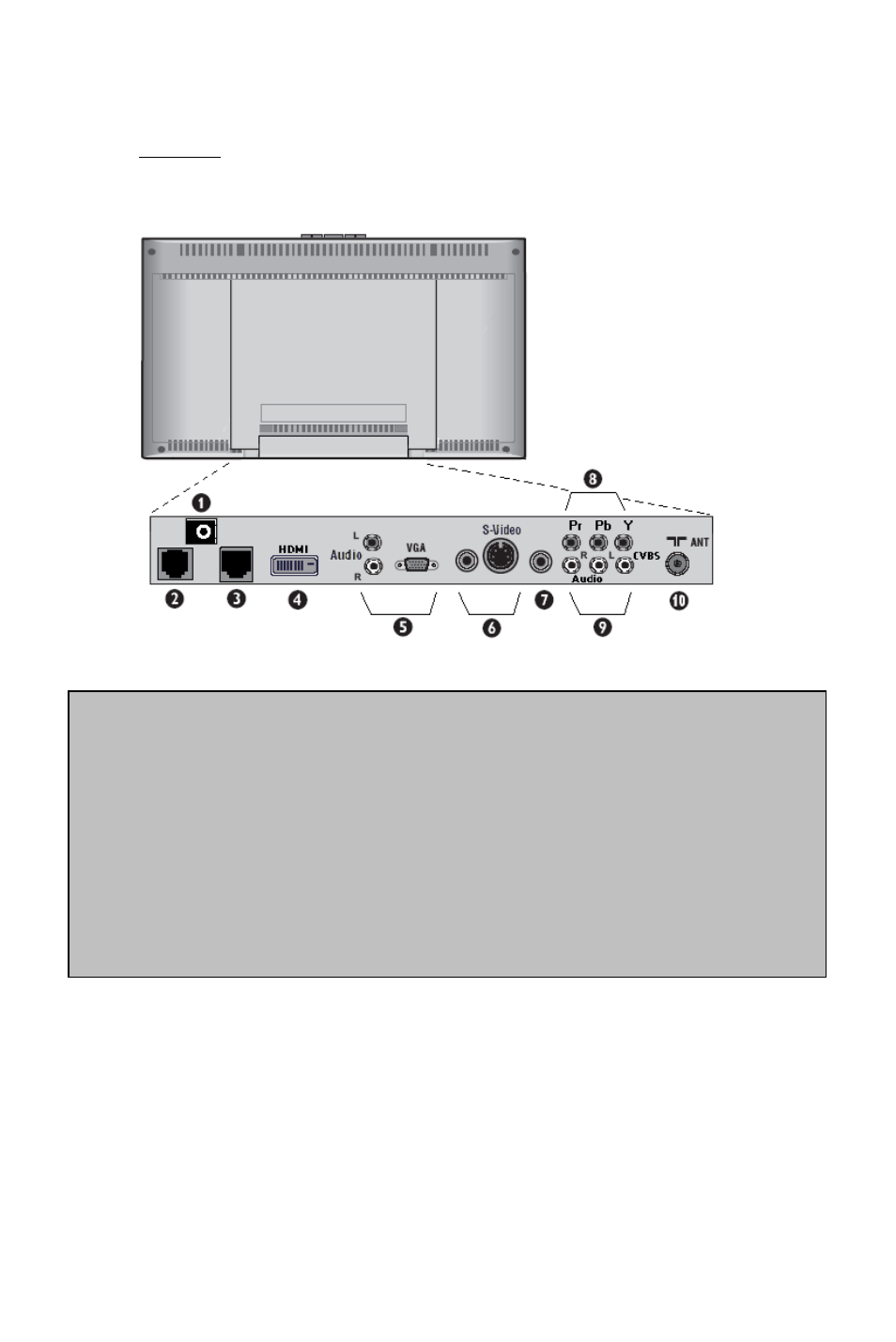

Connectors on the 42” TVs
1. 12V-In power DC jack
2. Data 1 (RJ12) jack - for interactive connectivity purposes
3. Data 2 (RJ45) jack – for interactive connectivity purposes
4. HDMI Input connector (AV3)
5. VGA and Audio input for connecting a computer (AV3)
6. S-Video and Audio/Video-In connector (AV2)
7. Monitor-Out (Video/Audio) connector
8. Component Video Inputs (CVI) connectors – Pr, Pb, Y
9. Audio-In and Video-In connectors (AV1)
10. TV aerial socket
