This section provides information on the connectivity available for different LCD Television sets.

Refer to the screen size that is relevant to your TV set.

20” LCD TVs









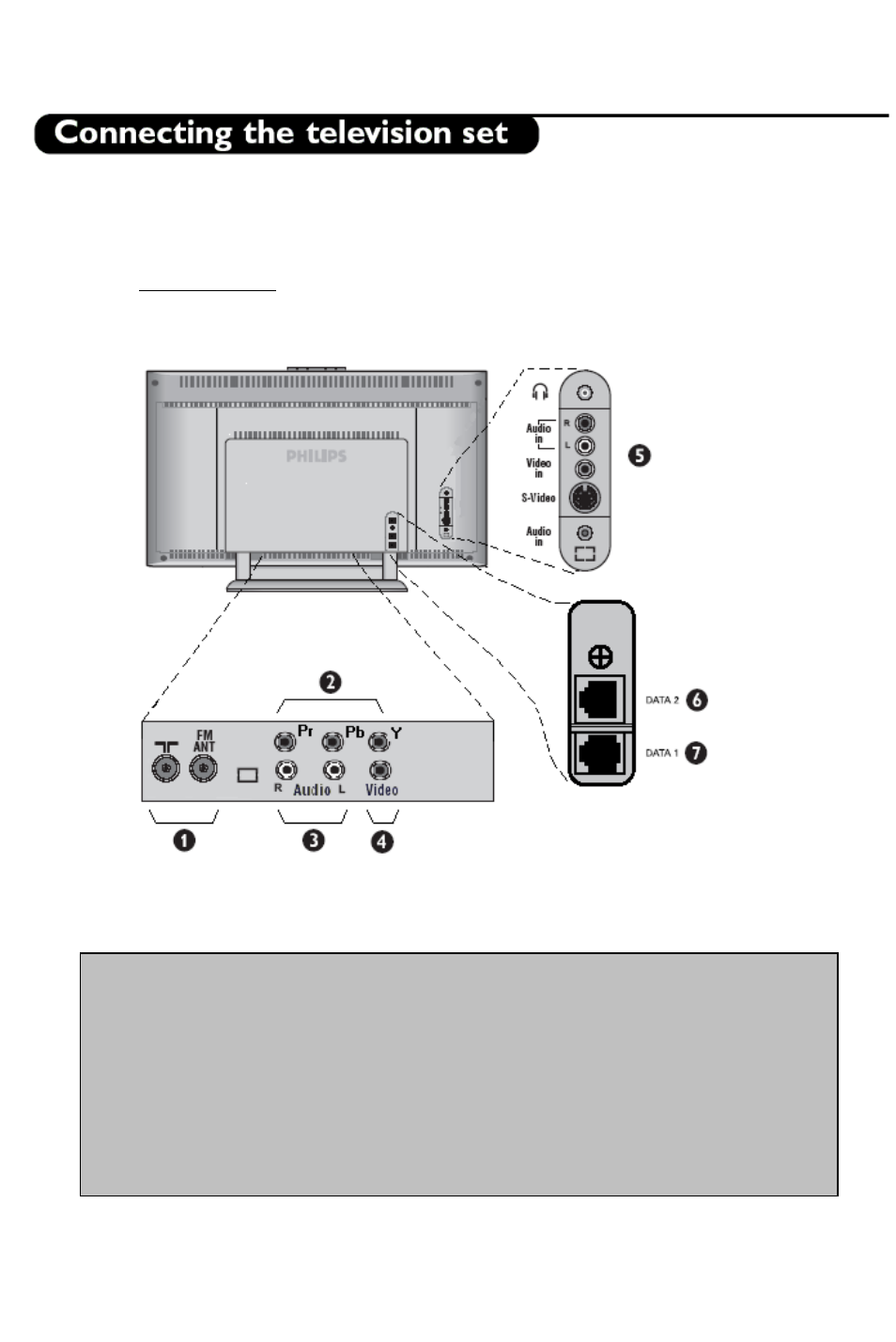

Connectors on the 20” LCD TVs

1. TV and Radio aerial sockets
2. Component Video Inputs (CVI) connectors – Pr, Pb, Y

3. Audio-In

connectors

(AV1)

4. Video-In

connector

(AV1)

5. Side IO Connectors (AV2) – Audio-In, Video-In, S-Video, and PC-Audio In
6. Data 2 (RJ45) jack – for interactive connectivity purposes

7. Data 1 (RJ12) jack – for interactive connectivity purposes
