Warning – Panasonic MC-V9658 User Manual
Page 13
- 13 -
- 44 -
Overload
Tools-
POWER
Protector Headlight
On-Board
Cord
Length
Cord
Reel
120V. AC (60Hz)
Yes
Yes
Yes
28 Ft. (8.5 m)
Yes
12.0 A
Protector
Almacen-
contra
Extensión
amiento
Voltaje
subrecargas
Luz
Herramientas
de cordón
del cordón
120V. AC (60Hz)
Si
Si
Si
8,5 m (28 pi)
Si
12,0 A
Protecteur
Dispositif
Longueur
Rappel
Alimentation
de surcharge
d’éclairage
Accessoires
du cordon
du cordon
120 V c.a. (60 Hz)
Oui
Oui
Oui
8,5 m (28 pi)
Oui
12,0 A
FEATURE CHART
D
Diia
ag
grra
am
ma
a d
de
e c
ca
arra
ac
ctte
erríís
sttiic
ca
as
s
Tableau des caractéristiques

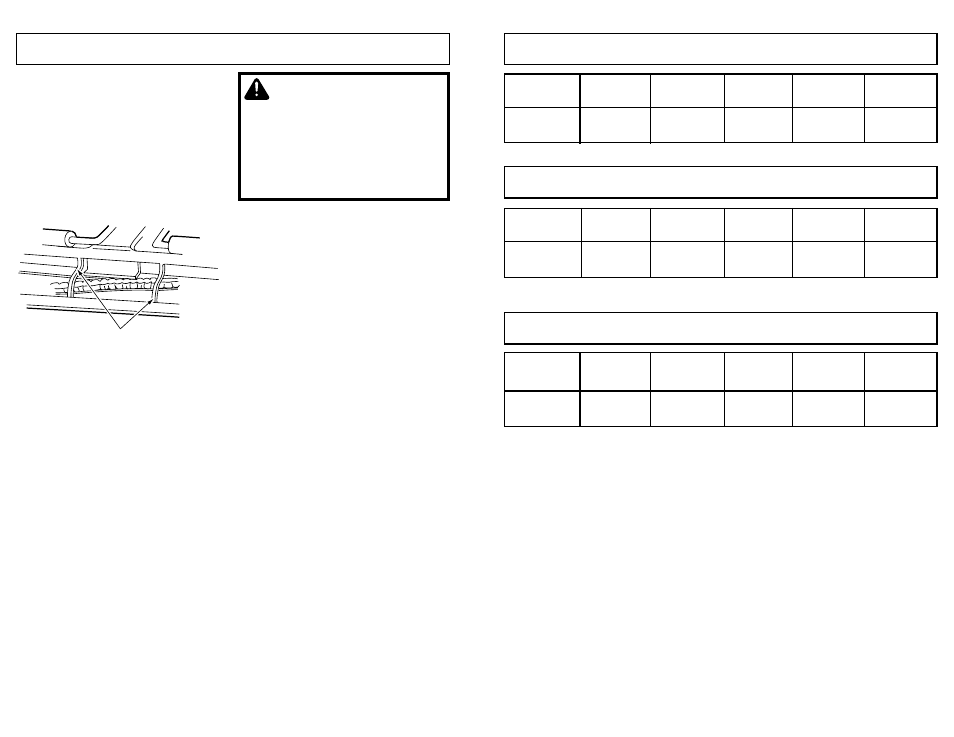

TO CHECK BRUSHES:
➢
➢
When brushes are worn to the level
of the base support bar, replace the
brush dowel.
TO REPLACE BRUSH DOWEL
➢
➢
Remove POWER NOZZLE cover,
belt and agitator assembly. (See
“REMOVING BELT”).
➢
➢
Remove agitator supports,
washers, screws, end brush, brush
sprocket, and brush sprocket
flange from ends of agitator
assembly.
➢
➢
Replace brush dowel.
➢
➢
Reassemble agitator assembly.
➢
➢
To line up screw holes in dowel,
sprocket and end brush, be sure the
brush portion of end brush lines up
with brushes on brush dowel.
➢
➢
Replace belt, agitator assembly and
POWER NOZZLE cover screws.
(See “REPLACING BELT”).
Base Support Bars
Barres de support de la base
Barra de soporte de la base
Brush Servicing
WARNING
Electrical Shock Or Personal Injury
Hazard
Disconnect electrical supply before ser-
vicing or cleaning the unit. Failure to do
so could result in electrical shock or per-
sonal injury from cleaner suddenly start-
ing.
