Connections 34
7 Connections

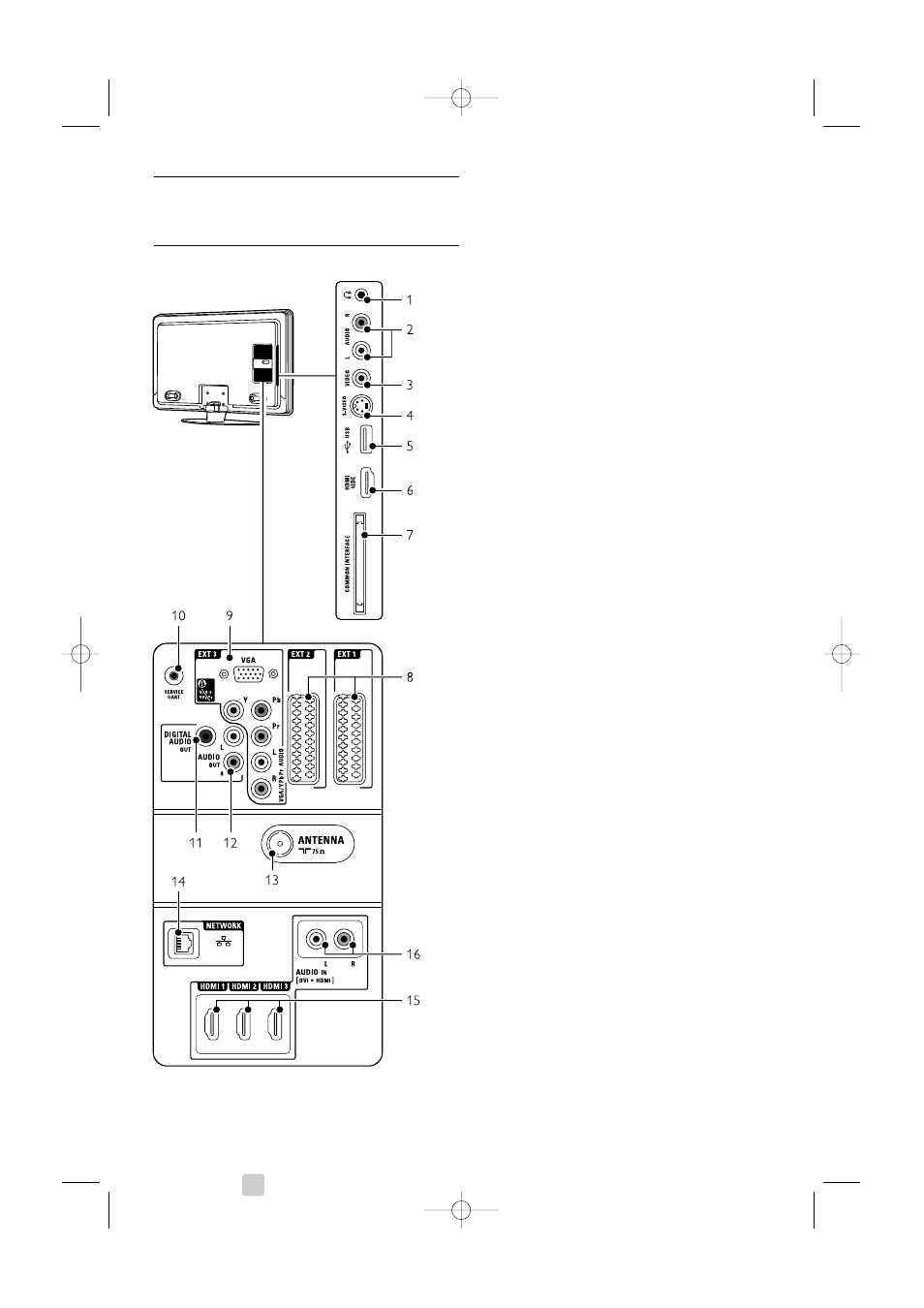

7.1 Connection overview
Side connectors
1
Headphones
Stereo Mini jack
2 Audio L/R
Audio L/R input to be used together with Video
or S-Video on the side of the TV.
3 Video
Video input to be used together with the
Audio L/R on the side of the TV.
4 S-Video
S-Video input to be used together with the
Audio L/R on the side of the TV.
5 USB
USB connector.
6 HDMI Side
HDMI input
7 Common interface
Slot for Conditional Access Modules (CAM)
Back connectors
8
EXT1, EXT2
Scart connectors for DVD,VCR, Digital receiver,
Game console, etc.
9 EXT3
Component Video Y Pb Pr and Audio L/R
connectors for DVD, Digital receiver or Game
console, etc.
VGA and Audio L/R connectors for a PC.
10 Service UART
For service only.
11 Digital Audio Out
Sound output cinch connector for a Home
Theatre System, etc.
12 Audio Out L/R
Sound output cinch connectors for a Home
Theatre System, etc.
13 Antenna input
14 Network
Home network connector.
15 HDMI 1, HDMI 2, HDMI 3
HDMI input connectors for Blu-ray Disc player,
HD Digital receiver or HD Game console, etc.
16 Audio L/R In [DVI to HDMI]
Audio In L/R connectors to be used together
with a DVI to HDMI connection.
