SPECIFICATIONS QW ™ -2
M Mo ou un nttiin ng g
This unit is not designed for over head
suspension. Optional flying version
available, contact your Peavey dealer or
rep for details.
A Arrcch hiitte eccttu urra all a an nd d E En ng giin ne ee erriin ng g
S Sp pe ecciiffiicca attiio on ns s
The loudspeaker system shall have an
operating bandwidth of 52 Hz to 18 kHz.
The nominal output level shall be 97 dB
when measured at a distance of one
meter with an input of 1 Watt. The
nominal impedance shall be 8 Ohms.
The maximum continuous power
handling shall be 800 Watts, maximum
program power of 1,600 Watts and a
peak power input of at least 3,200
Watts, with a minimum amplifier
headroom of 3 dB. The nominal
radiation geometry shall be 90˚ in the
horizontal plane and 40˚ in the vertical
plane. The outside dimensions shall be
33.38" high by 21.13" wide by 22.59"
deep. The weight shall be 98 pounds.
The loudspeaker system shall be a
Peavey model QW-
™ 2.
3 3 + + 2 2 Y YE EA AR R L LIIM MIIT TE ED D W WA AR RR RA AN NT TY Y
N NO OT TE E:: For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898, Meridian,
Mississippi 39301-2898.
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
60
70
80
90
100
110
dB
SPL
(re
20
Pa)

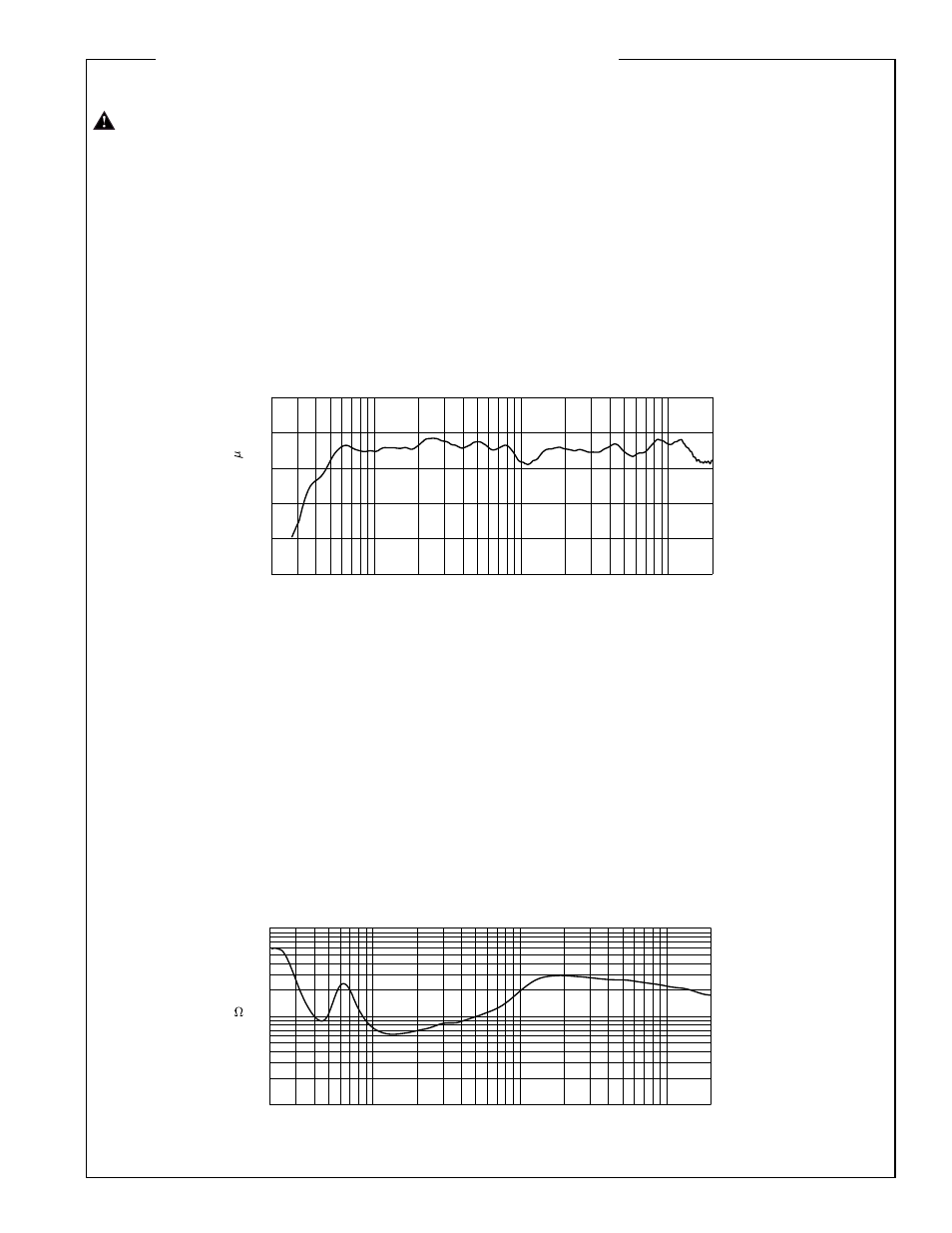

Amplitude Response (1W 1m On-Axis)
Figure 1
20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
1
2
3
5
10
20
30
50
100
Impedance
Z
( )
Figure 2
