V . Y O U R R A L L Y
REAR SECTION
The onboard battery charger, the charger power cord receptacle, the battery charger fuse, the batteries, the
electronic controller assembly, the main circuit breaker, the manual freewheel lever, and the motor/transaxle as-
sembly are located on the rear section of your scooter. See IX. Disassembly and Assembly for instructions on
removing the rear shroud. The anti-tip wheels are at the rearmost part of your scooter. See figure 7.
Onboard Battery Charger
The onboard battery charger converts household alternating current (AC) to direct current (DC) and charges the
batteries of your scooter. See VI. Batteries and Charging.
n The charger is a box with cooling fins on the exterior of its case.
n The charger power cord plugs into the battery charger by means of a receptacle located on the rear section of
your scooter, near the manual freewheel lever and the main circuit breaker reset button. See figure 7.
Electronic Controller Assembly
This assembly receives electrical signals from the console controls and sends power to the motor, the brake
systems.

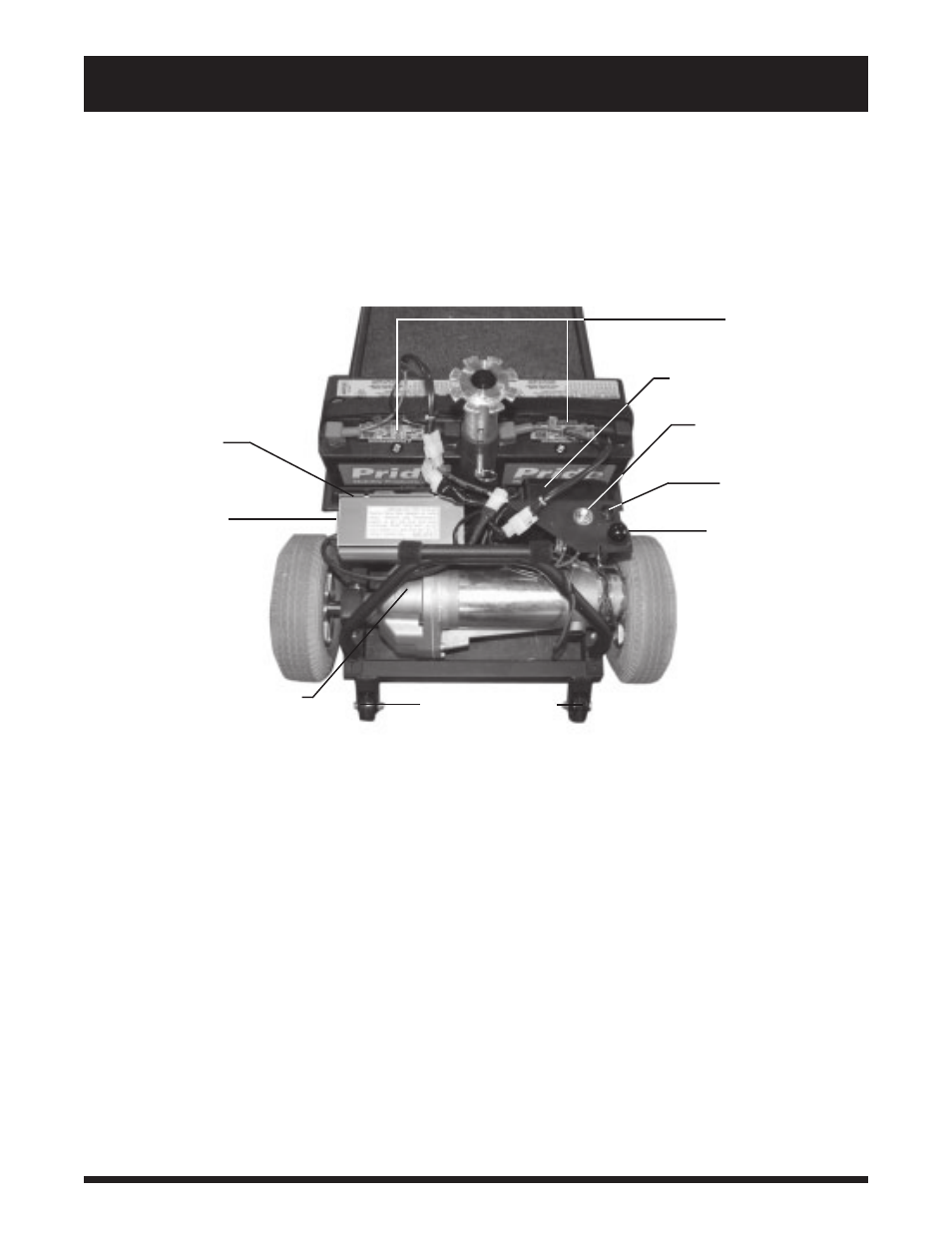

Figure 7. Rear Section
ANTI-TIP WHEELS
MOTOR/TRANSAXLE ASSEMBLY
ELECTRONIC CONTROLLER
ASSEMBLY
MANUAL FREEWHEEL
LEVER
CHARGER POWER
CORD RECEPTACLE
MAIN CIRCUIT BREAKER
(RESET BUTTON)
BATTERIES
ONBOARD BATTERY
CHARGER
BATTERY CHARGER
FUSE
