Panasonic DC51C72RCU6 - Manual

Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
Rated Performance Data*
Cond. Temp I* Cond. Temp II*
Capacity . . . . . . . . . . . . . . 604 Btu/h ±7%
690 Btu/h ±7%
E.E.R. . . . . . . . . . . . . . . . . . 5.40 Btu/Wh ±7% 6.39 Btu/Wh ±7%
Current . . . . . . . . . . . . . . . 0.98 Amps
0.94 Amps
Nominal Motor Data
Motor Input . . . . . . . . . . . . . . .112 Watts
108 Watts
Rated Current . . . . . . . . . . . . 1.05 Amps
Type . . . . . . . . . . . . . . . . . . . . RSCR, PTC relay
Locked Rotor . . . . . . . . . . 7.4 Amps
Start Current . . . . . . . . . . 14.2 Amps
Coil Resistances
Run . . . .5.58 Ohms
@ 68°F (20°C)
Start . . . 5.57 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . ISO VG 10
Shell Temp . . . . . . . . . . . . . . 150.0°F / 65.0°C
Condensing Temp . . . . . . . . . (I) 130.0°F / 54.4°C
. . . . . . . . . (II) 105.0°F / 40.6°C
Evaporating Temp . . . . . . . . . -10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories †
Overload Protector
Nominal Operating Characteristics
Model Name 4TM314NFBYY
Manufacturer Texas Instruments
Temperature To . . . . . . . . . . . Open: 248°F ± 9°F / 120°C ± 5°C
Close: 142°F ± 16°F / 61°C ± 9°C
Trip Current. . . . . . . . . . . . . . @158°F (70°C) 2.60 Amps ± 7.5%
@77°F (25°C) 11.3 Amps @ 16 sec. max.
P.T.C. Starting Device
Nominal Operating Characteristics
Model Name PTH7M6R8 PTH490D-AS6R8
Manufacturer Murata Mfg. Murata Mfg.
Base resistance
@ 77°F(25°C) ±20% 6.8 6.8 Ohms
Power Consumption (max) 2.9 3.5 Watts
Operation time 0.6 to 1.8 1.0 to 2.7 seconds
Recovery time (max) 60 65 seconds
Run Capacitor
12 µF 180 V (min.)
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
Evaporating Temp.
Condensing Temp. Rating -30°F -10°F +10°F
130°F Btu/h 256 604 1,099
Watts 69 112 157
Amps 0.60 0.98 1.37
E.E.R. 3.71 5.40 7.00
120°F Btu/h 300 638 1,140
Watts 73 111 152
Amps 0.64 0.97 1.33
E.E.R. 4.12 5.75 7.50
110°F Btu/h 338 676 1,181
Watts 75 110 146
Amps 0.66 0.96 1.28
E.E.R. 4.51 6.15 8.09
MATSUSHITA Compressor
Single Phase 115 V
Model# DC51C72RBU6
R-134a 60 Hz

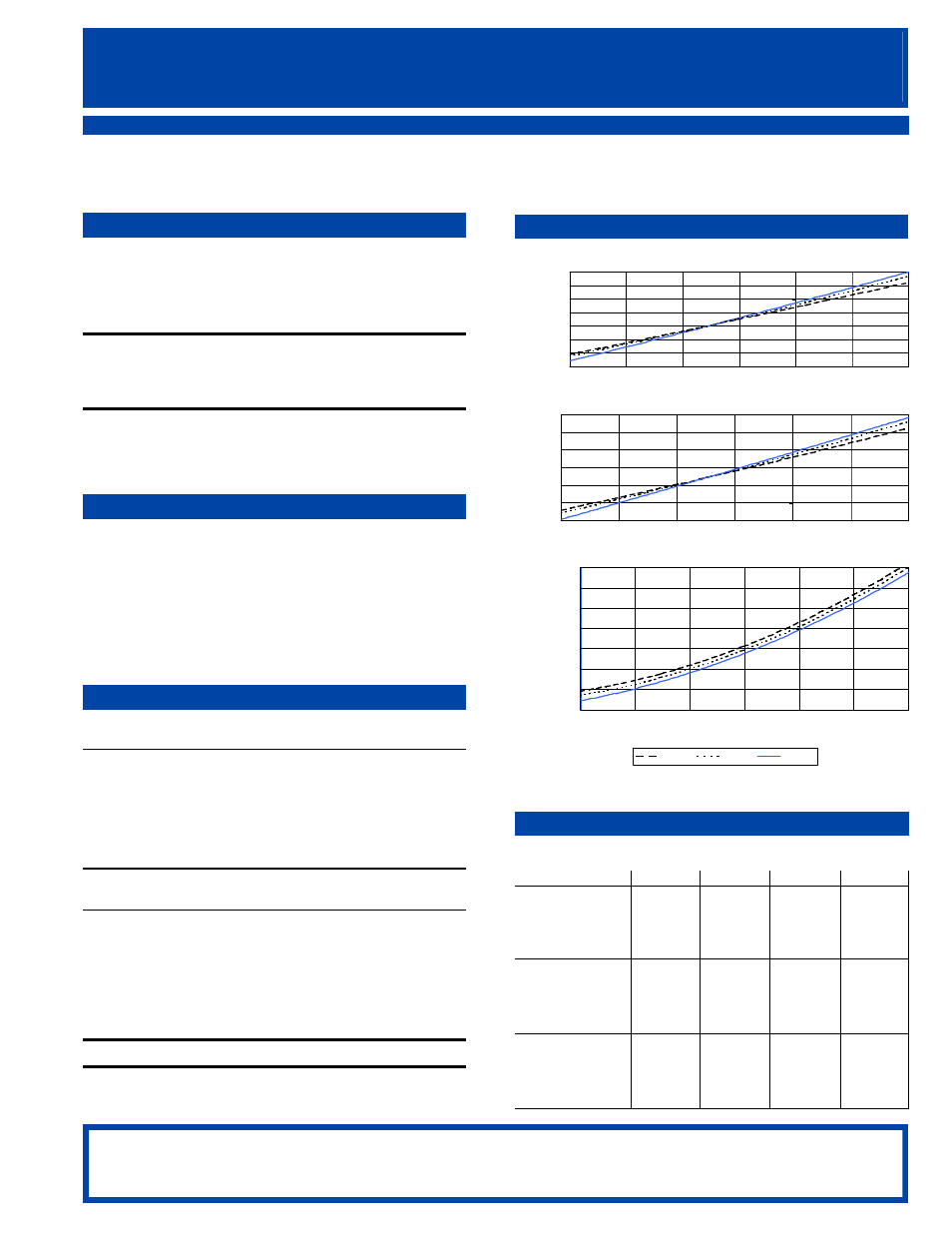

Performance Curves
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Fan/Static Cooling
9 – Point Data
Panasonic
®
40
60
80
100
120
140
160
180
-40 -30 -20 -10 0 10 20
Input Power (W)
0.4
0.6
0.8
1.0
1.2
1.4
1.6
-40 -30 -20 -10 0 10 20
Current (A)
50
250
450
650
850
1,050
1,250
1,450
-40 -30 -20 -10 0 10 20
Evaporating Temperature (°F)
Capacity (BTU/H)
110°F 120°F 130°F
