9
Assembly
Mounting Extension Wings

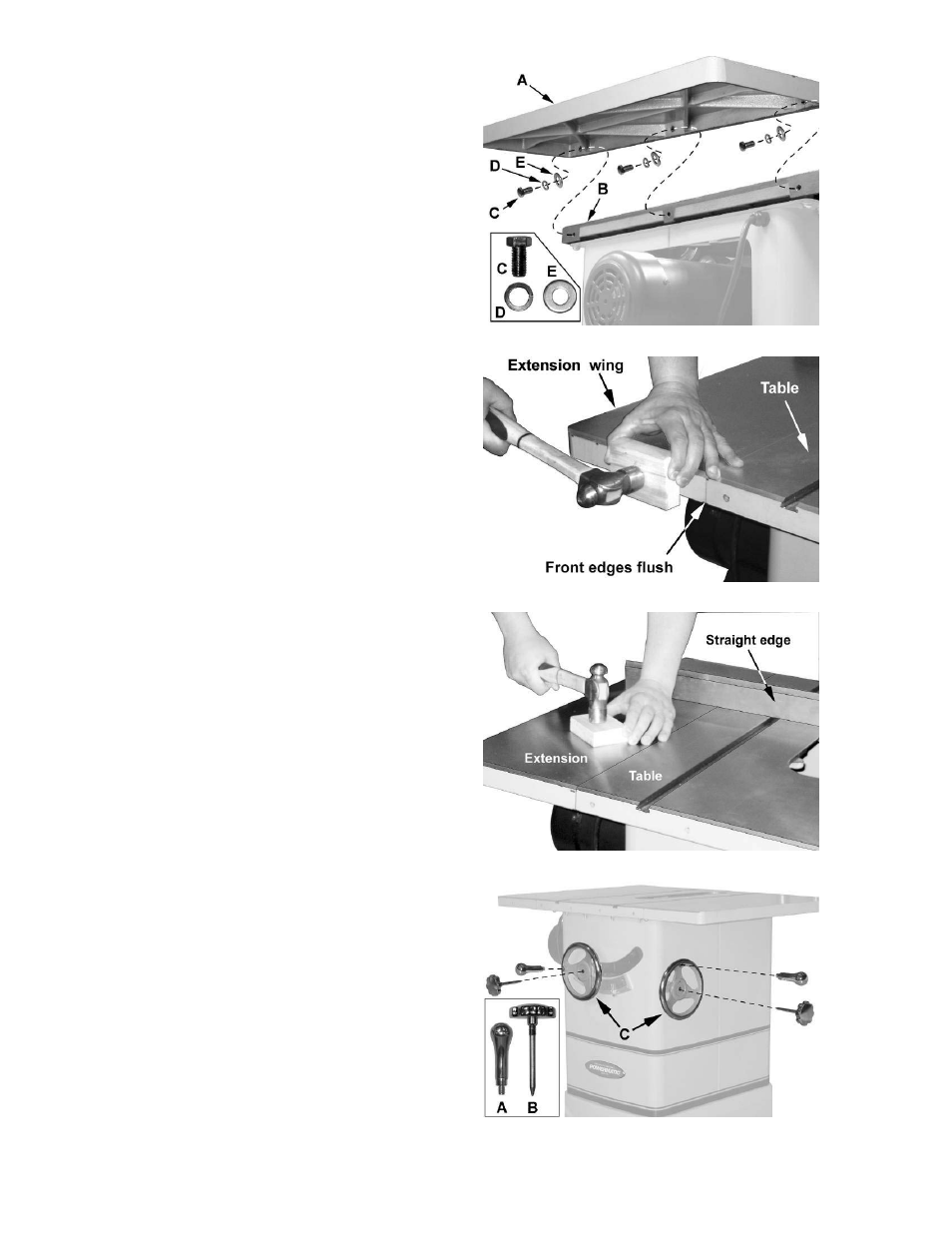

Referring to Figure 1:
1. Mount a cast iron extension wing (A) to the
right or left side of the table (B) using three
each 3/8-16x1 hex head screws (C), 3/8
lock washers (D) and 3/8 flat washers (E).
Have an assistant hold the extension wing
up to the table while you insert the screws
and washers. Finger-tighten only.
Note: If an assistant is not available, hold
the wing in vertical position up to the saw
table, insert the middle screw and lock
washer finger tight, then pivot the wing to
level position. Insert the other two screws
and washers finger tight.
2. Mount the remaining extension wing to the
other side of the table in the same manner.
3. Make sure that the front edge of the
extension wings are flush with the front
edge of saw table (Figure 2).
4. Level the extension wing with the saw table
across its entire width (Figure 3) using a
straight edge and a rubber hammer (or a
metal hammer with a block of wood as
shown).
5. As each area of the wing becomes flus h
with the table, tighten the screw under that
area. Continue until all three screws are fully
tightened.
6. Repeat for the other extension wing.
Lock Knobs and Swivel Handles
Referring to Figure 4:
1. Thread the swivel handles (A) into the front
and side handwheels (C) and tighten with a
14mm wrench.
2. Screw lock knobs (B) into the threaded
openings on the ends of the shafts located
in the middle of the handwheels (C).
Note: Do not tighten the lock knobs all the
way at this time.
Figure 1
Figure 2
Figure 3
Figure 4
