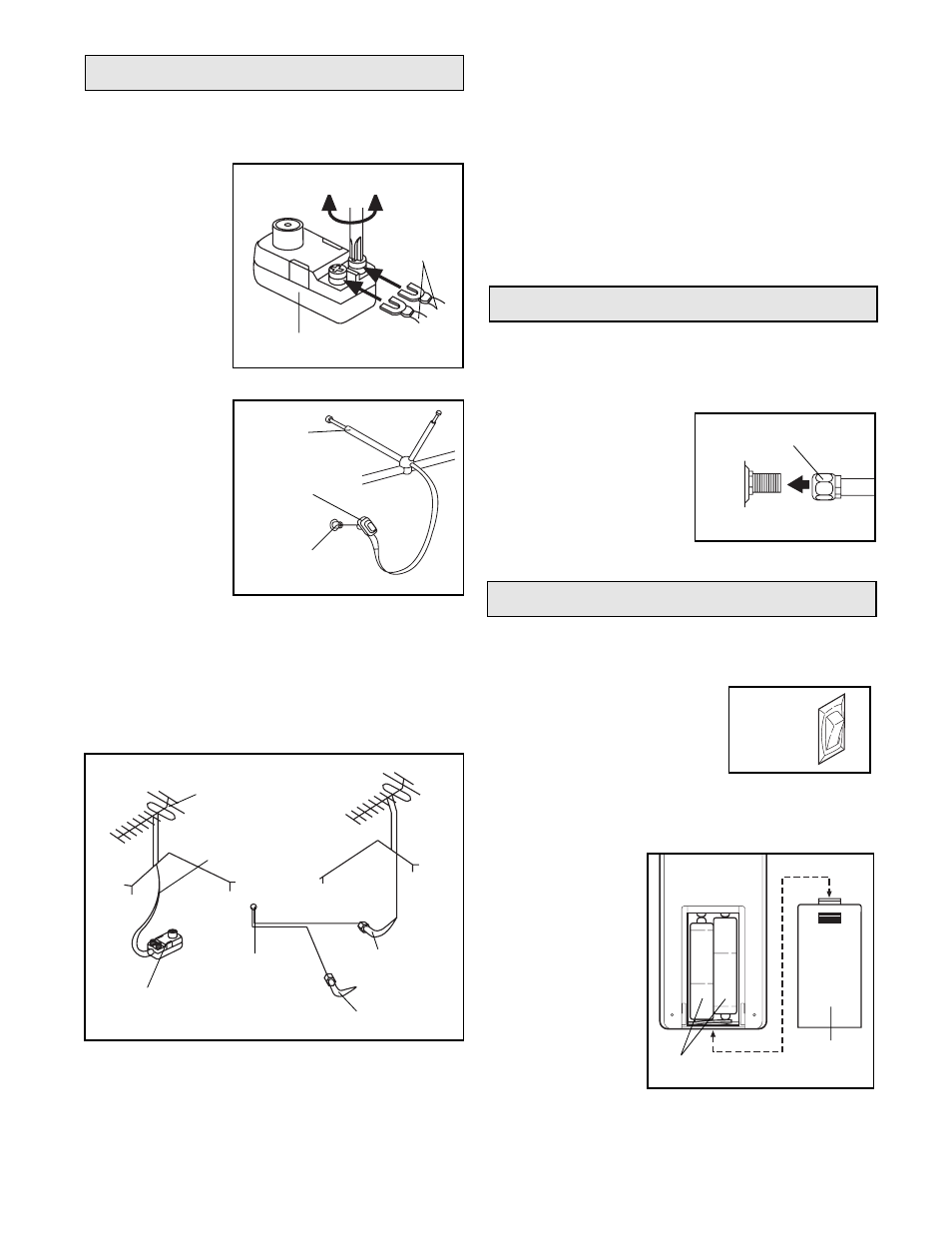

Indoor Antenna

1. Place the VHF

antenna in the
desired loca-
tion. Connect
the 300 ohm
flat wire to the
screws on the
300 ohm to 75
ohm adapter.

2. Connect the

300 to 75 ohm
adapter to the
75 ohm an-
tenna terminal
on the treadmill.
(See assembly
drawing 6 on
page 8 for the
location of the
terminal.)

Outdoor Antenna

Outdoor antennas are subject to weathering that can
reduce signal quality. Inspect the antenna and lead-in
wiring before connecting the antenna. Any service cen-
ter can explain the various outdoor antennas available.

¥ 300 Ohm Flat Wire

1. Refer to the drawing above. Connect the 300 ohm

flat wire to the 300 ohm to 75 ohm adapter.

Push the end of the 300 ohm to 75 ohm adapter
into the 75 ohm antenna terminal on the treadmill.
(See assembly drawing 6 on page 8 for the loca-
tion of the terminal.)

¥ 75 Ohm Coaxial Cable

Refer to the drawing in the lower left corner of this page.
Connect the 75 ohm coaxial cable directly to the 75 ohm
antenna terminal on the treadmill. (See assembly draw-
ing 6 on page 8 for the location of the terminal.)

1. Remove the VHF 300 to 75 ohm adapter or the VHF

cable from the antenna terminal.

2. Connect the CATV

cable (75 ohm coaxial
cable) to the 75 ohm
antenna terminal on the
treadmill. (See assem-
bly drawing 6 on page 8
for the location of the
terminal.)

Read the important precautions on pages 2 to 5 of
this manual. Before operat-
ing the TV, make sure that the
on/off switch located on the
front of the motor hood is in
the ÒonÓ position, and that the
power cord is properly
plugged in (see page 9).

Battery Installation

Before the remote
control can be oper-
ated, two ÒAAAÓ
batteries (included)
must be installed.
Slide the battery
cover off the back
of the remote con-
trol. Press two bat-
teries into the re-
mote control. Make
sure that the bat-
teries are turned
as shown.
Reattach the battery cover.

300 to 75 Ohm Adapter

Screwdriver

VHF 300
Ohm Flat
Wire

75 Ohm
Terminal

300 to 75 Ohm
Adapter

VHF Rod
Antenna

Combination
VHF/UHF Antennas

300 Ohm
Flat Wire

75 Ohm
Terminal
on Treadmill

300 to 75
Ohm Adapter

75 Ohm
Coaxial Cable

75 Ohm CATV Cable

ANTENNA CONNECTIONS

CATV CABLE CONNECTION

BASIC TV OPERATION

OFF

ÒOnÓ
Position

ÒAAAÓ Batteries

Battery

Cover

Remote

Control
