Templates
The template must be thick enough to provide a
solid bearing edge against a collar. Whe n
constructing a template similar to the one shown in
Figure 49, keep in mind that it serves only as a
guide for the cutter.
If the workpiece requires all-around shaping, the
template can be constructed from several sections
pieced together as shown in Figure 50.
Securing the Template
There are various methods used to secure the
template to the workpiece. The experienced
operator will choose the most appropriate
according to the shape, size, and type constructio n
of the template. For example, if the workpiece is
large enough to extend beyond the front of the
table and still leave room for the desired cut, it ca n
be securely held to the template with "C" clamps
as shown in Figure 51.
In many situations the workpiece is positioned
against the template using dowels as anchor
points and handles (wood blocks) to assist the
operator in guiding the work-piece through the cut
as shown in Figure 52.

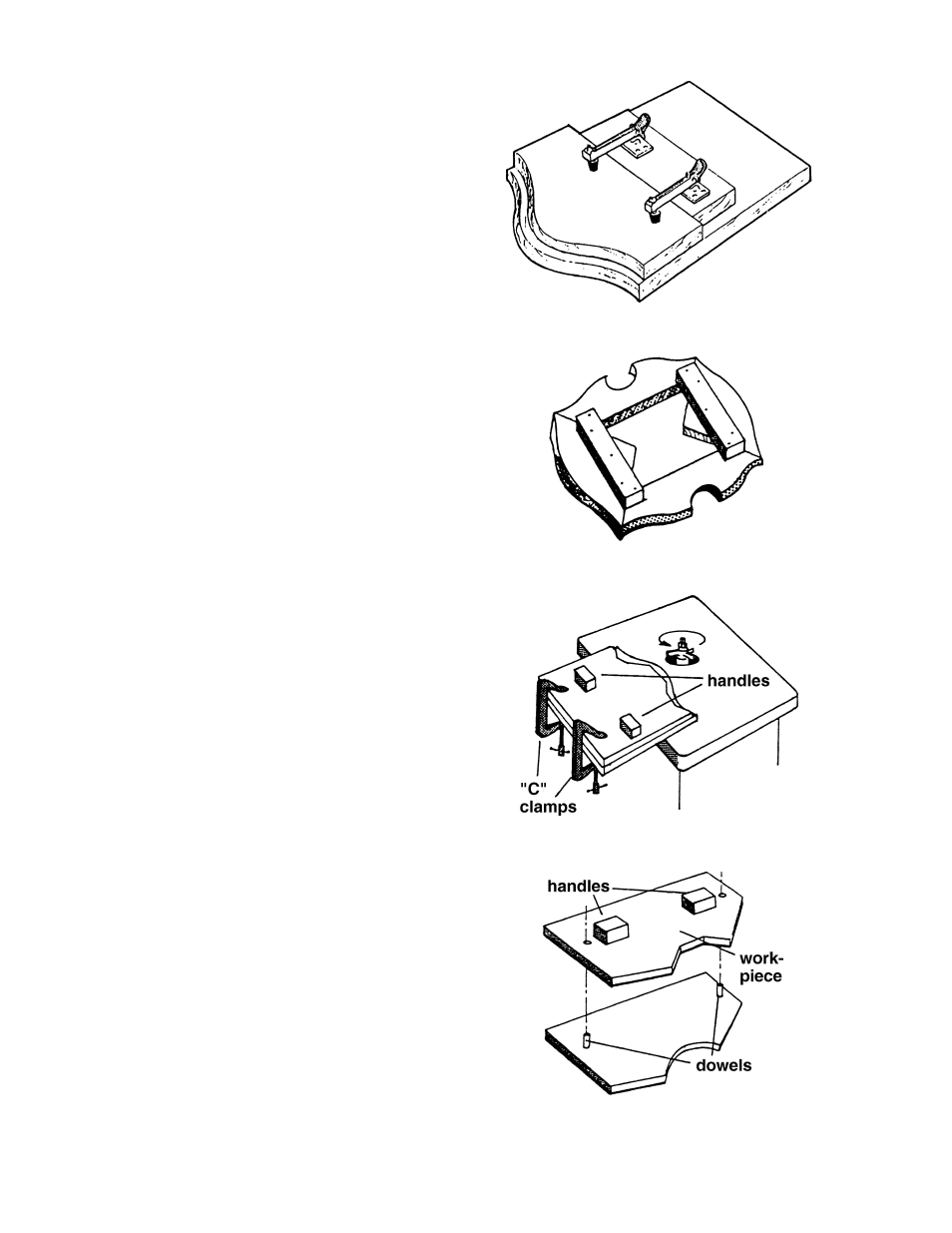

Figure 49
Figure 50
Figure 51
Figure 52
