Poulan 96041013900 User Manual
Page 2
2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO.
DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7

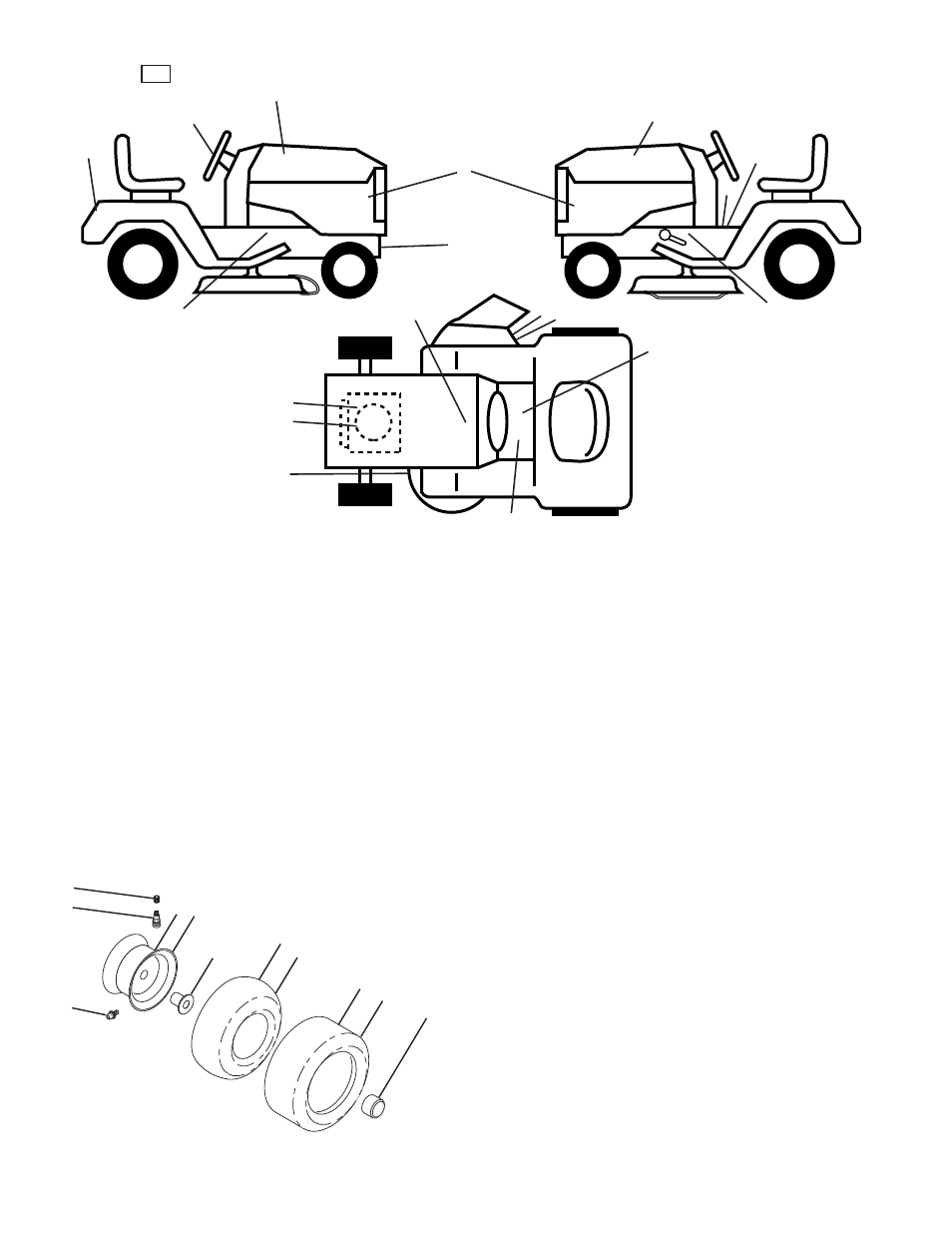

wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO.
DESCRIPTION
KEY PART
NO. NO.
DESCRIPTION
7
1
1
532 05 91-92 Cap, Valve, Tire
2
532 06 51-39 Stem, Valve
3
532 12 51-21 Rim Assembly, Front
4
532 05 99-04 Tube, Front
5
532 10 62-22 Tire, Front
6
532 12 49-57 Fitting, Grease
7
532 12 49-59 Bearing, Flange
8
532 19 32-68 Cap, Axle (Front Wheel Only)
9
532 13 84-68 Tire, Rear
10
532 12 49-26 Tube, Rear
11 532 12 51-22 Rim Assembly, Rear
- -
532 14 43-34 Sealant, Tire (10 oz. Tube)
5
2
1
532 18 61-63 Decal, Hood RH
2
532 18 61-64 Decal, Hood LH
3
532 18 92-90 Decal, Side Panel
4
532 17 27-40 Decal, Fender
5
532 40 88-32 Decal, Eng H.P.
6
532 40 03-89 Decal, Warning Sym
7
532 15 97-36 Decal, Chassis Hot Muffler
8
532 18 21-66 Decal, Cutfinger
9
532 14 50-05 Decal, Battery Dnge/Poi
10
532 19 63-57 Decal, Deflect Wrn Cutfinger
6
11
532 15 97-37 Decal, Brake/Clutch Symbol
12
532 16 25-98 Decal, Drawbar Load Limit
13
532 17 27-43 Decal, Steering Wheel
14
532 14 08-37 Decal, Saddle Brake Park
15
532 19 68-41 Decal, Engine Warning
17
532 16 03-96 Decal, V Belt Schem
- -
532 41 12-73 Pad, Footrest RH
- -
532 40 95-05 Pad, Footrest, LH
- -
532 42 52-66 Manual, Operator's (English)
3
13
9
8
4
7
12
14
10
15
17
11
16
TRACTOR - - MODEL NO. PP18542 (96041013900), PRODUCT NO. 960 41 01-39
DECALS 27
