Philips Germicidal T5 - Manual (Page 2)

Lamp Lamp UV-C Rated
Product Diameter Current 100h Depreciation Avg. Life
Number Type Base (mm) Volts (mA) Watts W 9000h (%) (Hrs.) 1
29269-8 TUV 64 T5 SP Single-Pin 16 176* 425* 75* 31 15 9000
36217-8 TUV 64 T5 4P-SE 4-Pin Single-Ended 16 176* 425* 75* 31 15 9000
1) Rated average life when burned at 8 hours per start and under IES/ANSI test conditions.
*These results are based upon operation on 25kHz HF electronic ballast.
LAMP CONTAINS MERCURY, Manage in Accord with Disposal Laws, See: www.lamprecycle.org or call 1-800-555-0050.
Electrical,Technical and Ordering Data
(Subject to change without notice)
Philips Germicidal T5 Sterilamp ® Featuring ALTO ® Lamp Technology
X
Y
Z
Ø 0.75" 0.35" 1.31"
0.31"
Type X Y Z
single-pin
TUV 64 T5 SP 57.99" 61.17" ± .12" 61.87" ± .14"
X
Y
Z
Ш 0.75" 0.29" 1.31"
0.25"
0.31"
Ш 0.09'
Type X Y Z
4-pin single-ended
TUV 64 T5 4P-SE 57.99" 61.17" ± .12" 61.46" ± .14"

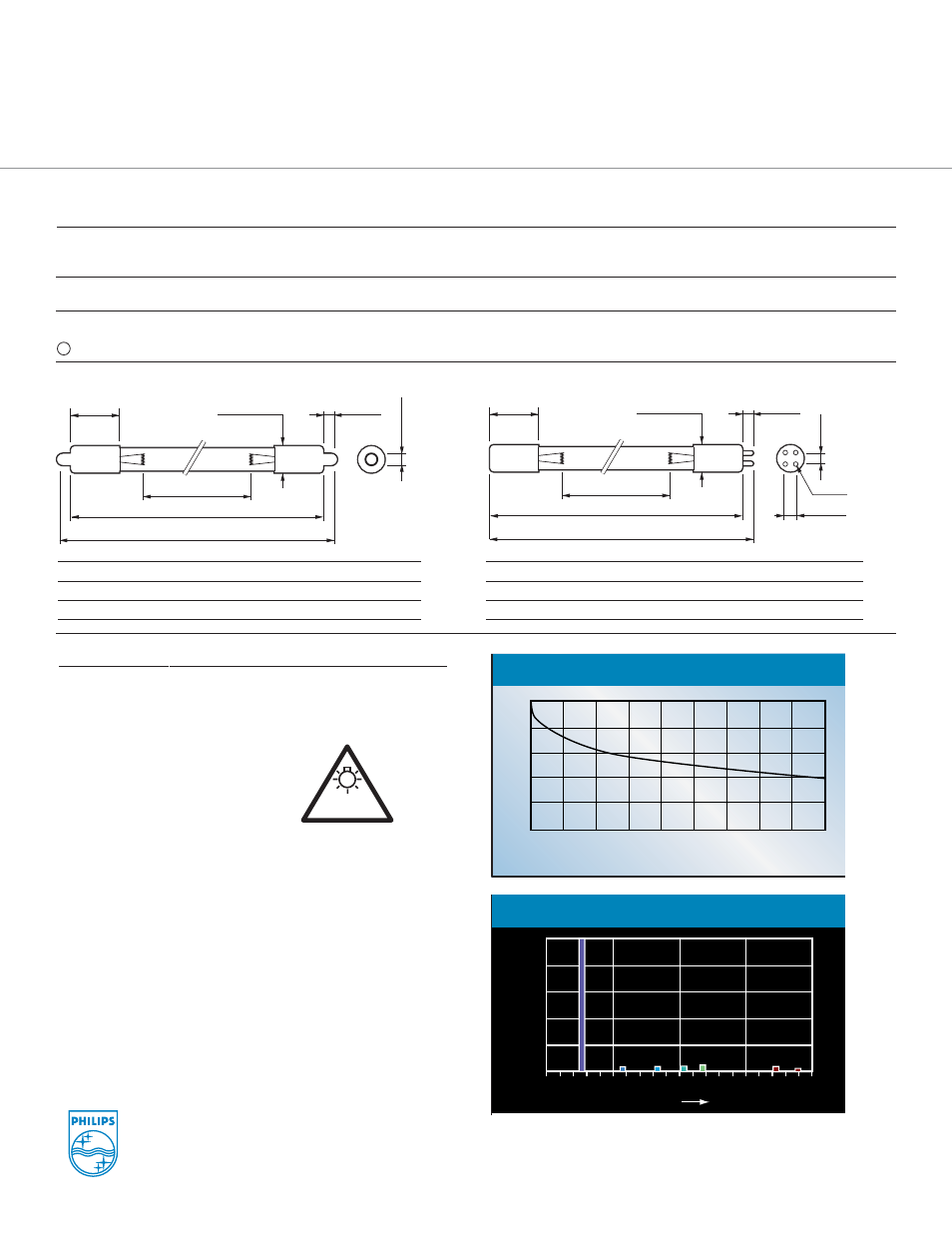

Lamp Dimensions
Hg
Recommended Warnings, Cautions and Operating Instructions
WARNING: “These lamps can cause serious skin burn and eye inflammation
from short wave ultraviolet radiation. Radiation from these lamps is harmful to
the eyes and skin. Do not use where people will remain for more than a few
minutes unless adequate shielding or other safety precautions are used.
The UV-C radiation output of these lamps is
indicated by the following warning sign:
CAUTION:To reduce the risk of personal injury, wear protective
eyewear when you are in close proximity to these lamps. Failure
to do so may result in severe burns and long-term injury to eyes.
Installations with these lamps are to be screened off completely.
Philips Germicidal T5 Sterilamp ® TCLP-Compliant,
Featuring ALTO ® Lamp Technology
The Philips Germicidal T5 G64 Sterilamp is the first germicidal lamp in the
industry to pass the federal EPA’s TCLP test for low mercury level and can be
characterized as non-hazardous waste.
Philips pioneered the low mercury technology for general lighting T8 fluorescent
lamps under the designation of ALTO. As an ongoing initiative to reduce
mercury levels in arc-discharge lamps, Philips has expanded the ALTO family of
lamps to include the popular low pressure G64 T5 germicidal types commonly
used in air and water disinfection applications.
R
UV-C
Maintenance: Relation Between UV-C Output
and Burning Time
100
80
60
40
20
253.7 313.0 365.5 404.7 435.8 546.1 578.0
Wavelength nm
%
75
80
85
90
95
100
0 1000 2000 3000 4000 5000 6000 7000 8000 9000
Burning time in hours
UV
-C output in %
TUV Spectral Power Distribution
