Chapter 5: Outputs
9 8 7 6 5 4 3 2 1
9 8 7 6 5 4 3 2 1
DC output DC output
2I0-4A
LED
Solid state modules
AC output AC output

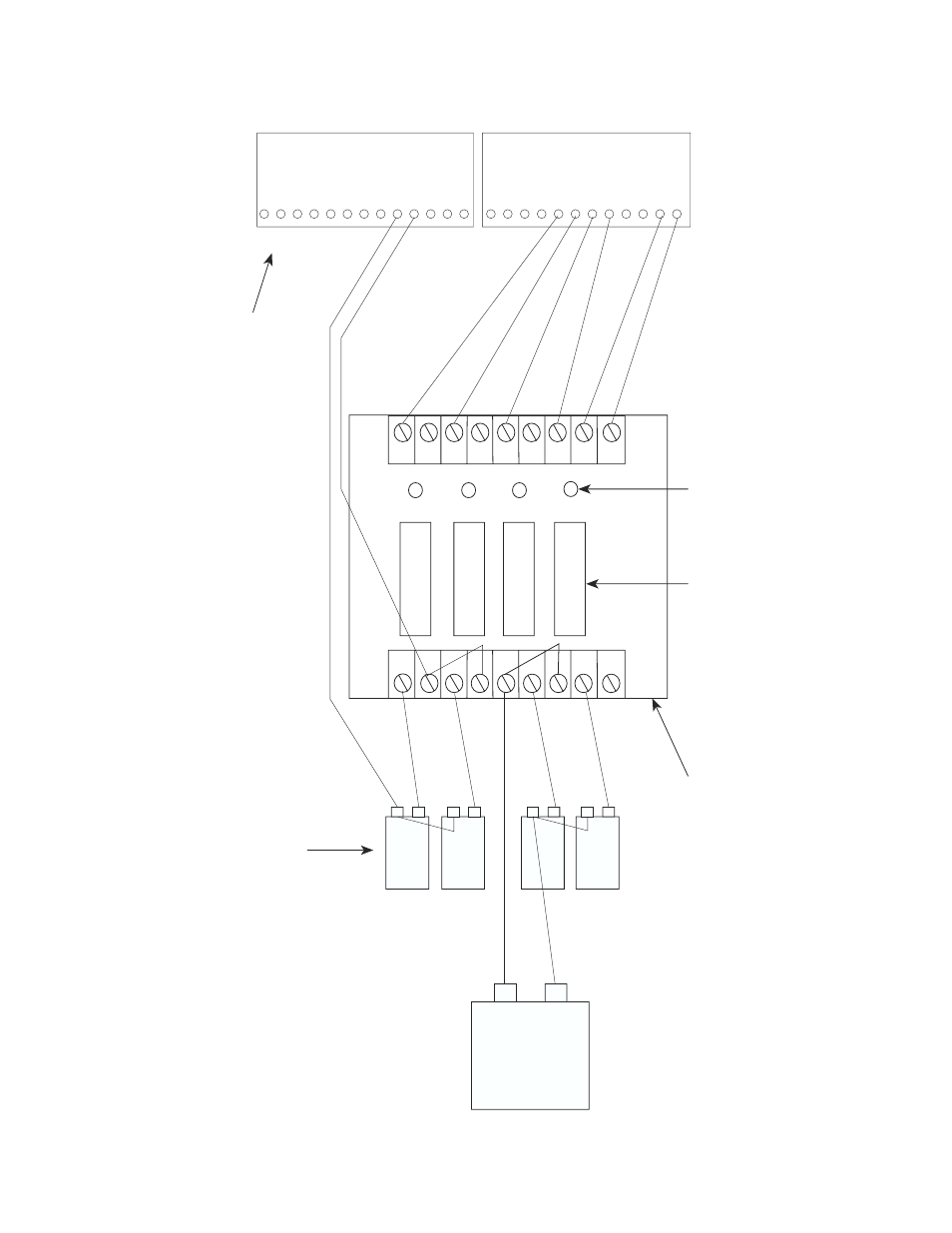

DIGITAL OUTPUTS
8 7 6 5 4 3 2 1 C 1 2 V C 5 V
DC device
+ G
DC device
+ G
AC device AC device
AC external power supply
HOT NEUTRAL
Output devices
Power supply and digital
outputs terminal blocks on ISACC circuit board
POWER
EG 24 24 BAT C 20V C 15V C 1 2 V C 5 V C
AC AC
4-module rack
Using 4-module r
ac
k with ISA
C
C
