AUDIO SYSTEM SETUP

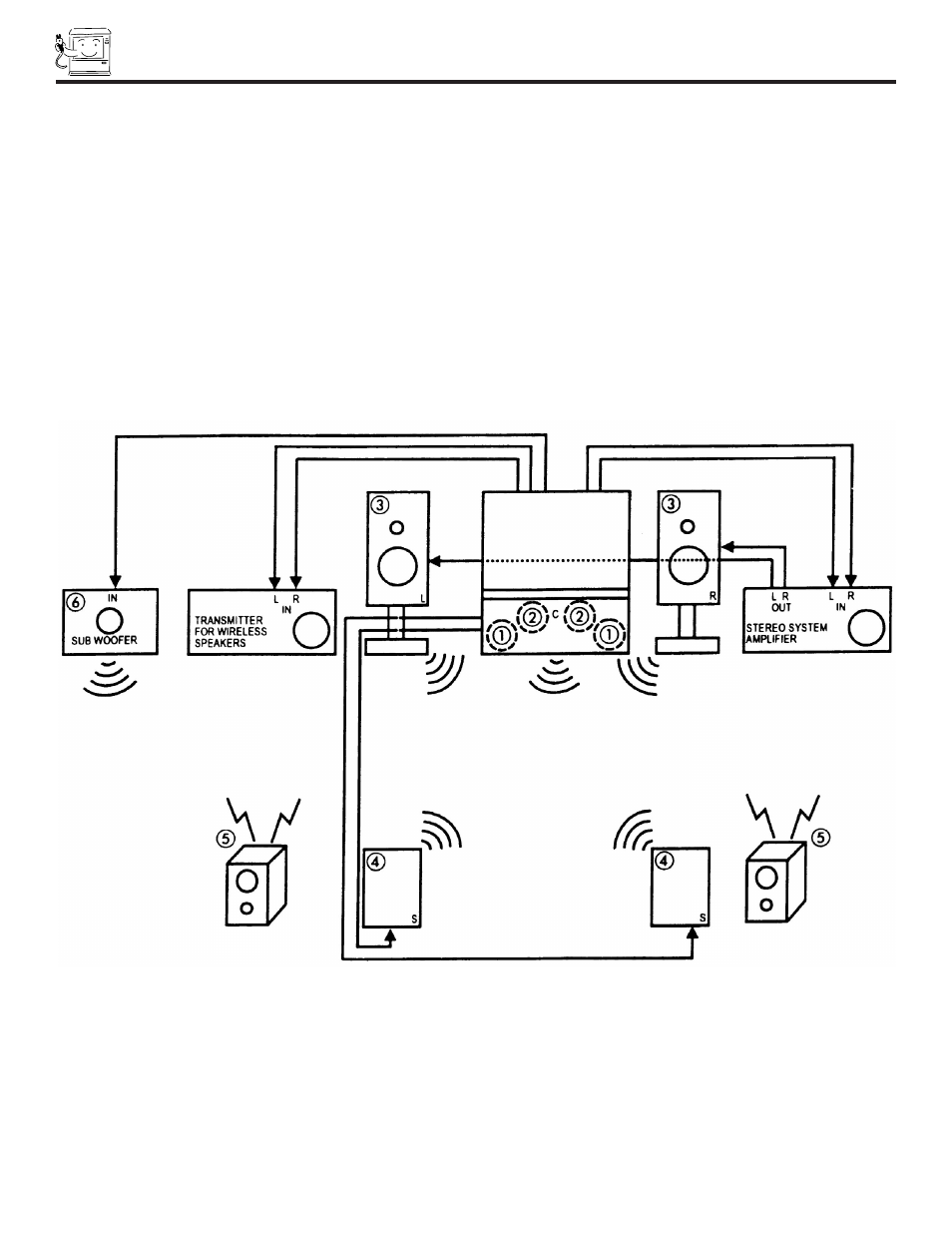

Match the numbers below to the diagrams for speaker placement and refer to the table on page 21 for the different surround sound
requirements. (See page 58 for SURROUND functions.)

ቢ

The television s internal speakers.

ባ

The television s internal center channel speakers, which are on only when the television is in SURROUND-DOLBY PRO LOGIC or
SURROUND-DOLBY 3 STEREO mode.

ቤ

These speakers are connected to a separate audio amplifier. Use the AUDIO TO HI-FI output on the TV.

ብ

These speakers are connected to a rear speaker 8-Ohm output on the TV.

ቦ

These speakers are controlled by a wireless speaker transmitter. Use the WIRELESS OUT output on the TV.

ቧ

This sub woofer is connected to the SUB WOOFER output on the TV.
