Ref. No. 2C Procedure 2A → → → → 2B → → → → 2C Removal or attachment of the Gear Box Block.
(Removal)
1. Turn the thrust plate to remove.
2. The internal parts of gear box block can be removed one after
another. (See Fig. 6)
(Attachment)
1. Start from inserting 6 pins into the driving block as shown in the
Fig. 7.
2. Assemble the other parts in reverse order as shown in the Fig. 6.
NOTE :
Carriers and Ring Gears have their own correct directions for
proper reassembly.
3. Insert 2 pieces of steel ball into each 6 holes of gear case.
4. Set clutch plate and clutch spring.
NOTE :
Clutch plate has its own correct direction for proper reassembly.

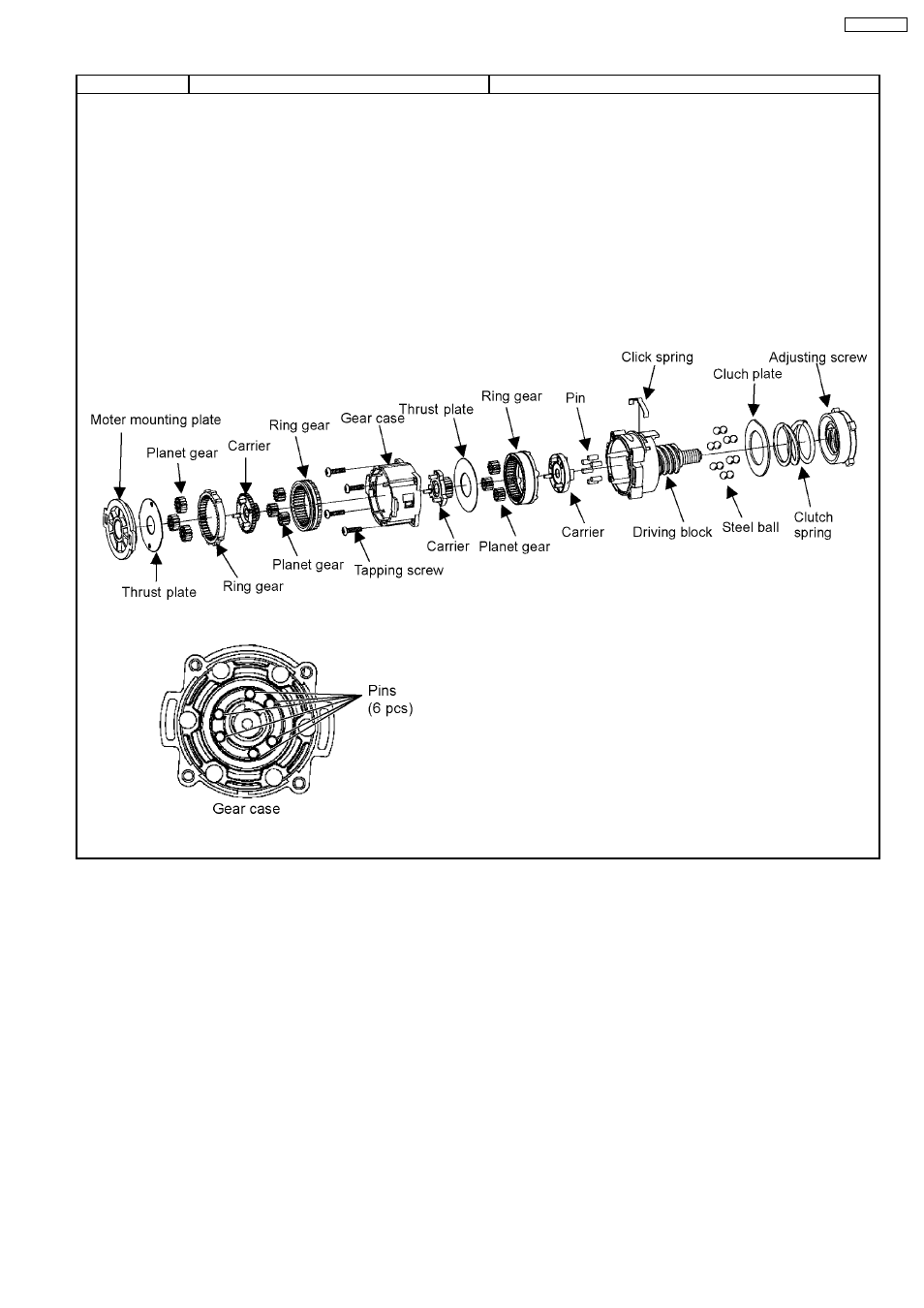

Fig. 6
Fig. 7
