3
R S 2 3 2 P o r t
“ T ” L e v e r
S u p p l y D o o r

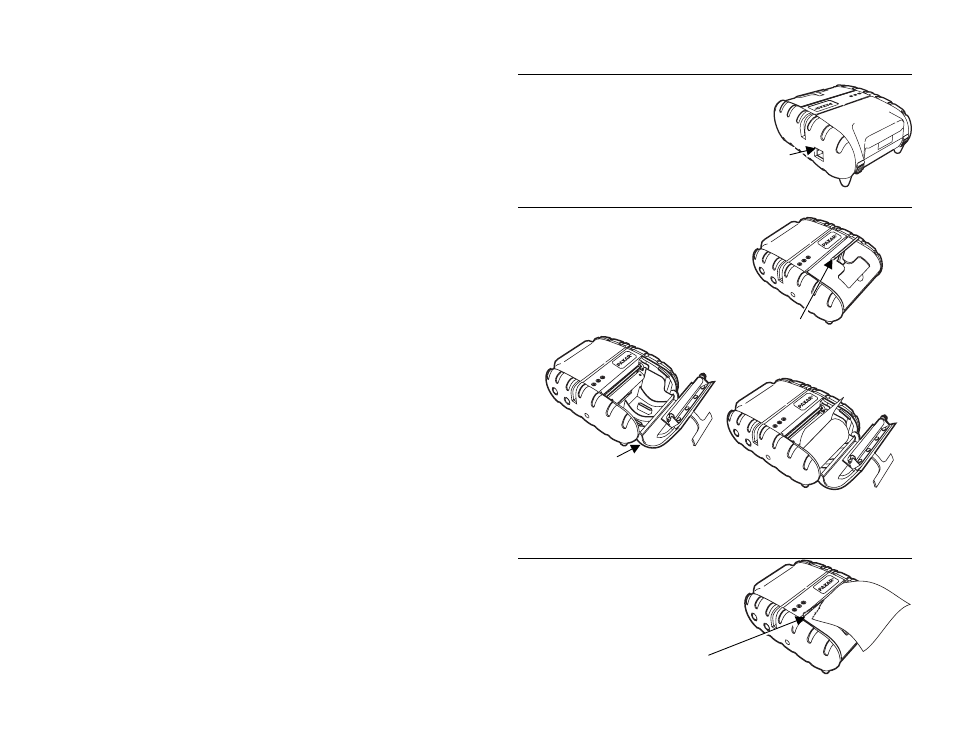

C o n n e c t i n g t h e P r i n t e r
1 . Plug your host into the printer’s RS232
port using a modular connector.
2 . Turn on the printer.
3 . Make sure the DIP switches are set to
match the communication
values on your host.
L o a d i n g S u p p l i e s
The printer can print text, bar codes,
and some limited graphics on thermal
direct receipt paper.
1 . Lift up the “T” lever on the supply
door and wrap your fingers around
it.
2 . Pull up firmly on the supply door to
open it.
3 . Drop the supply into the
well. Make sure the supply
unwinds from the bottom.
4 . Position the supply between
the printhead guides.
5 . Make sure 2-3 inches of supply extends past the printhead.
6 . Close the supply door.
T e a r i n g S u p p l y
The printer’s supply door acts as a
tear bar. Tear down against the tear
bar to remove receipts.
Do not tear supply up against the
printhead or sideways, because
the supply door may open.
T e a r B a r
