User Controls
Front Panel Controls
CONTROL FUNCTION
Volume Control Dial Increases and decreases the volume of the display
Remote PC Power Button Turns the connected computer on and off - see page 20 for
details. Easy way to reboot PC.
Power Indicator LED Shows the power state of the monitor:
• Green: power is on, all systems OK
• Red: the monitor is receiving no video input
• Off : DC power off or Backlight off
Brightness Control Dial Increases and decreases the brightness of the display. Turning
the dial all the way clockwise will “blank” the display to hide
information if needed.
Backlight On/Off Button Allows the screen and LEDs to be shut off for dark mode.
Backlight button will also restart the touchscreen if needed.
Backlight Indicator LED Shows the power state of the Backlight:
• Green: all systems OK
• Red: Backlight off
• Off : DC power off or no Video input
Autosync Auto calibration of video mode
Softkey Buttons Allows macro keyboard command entry

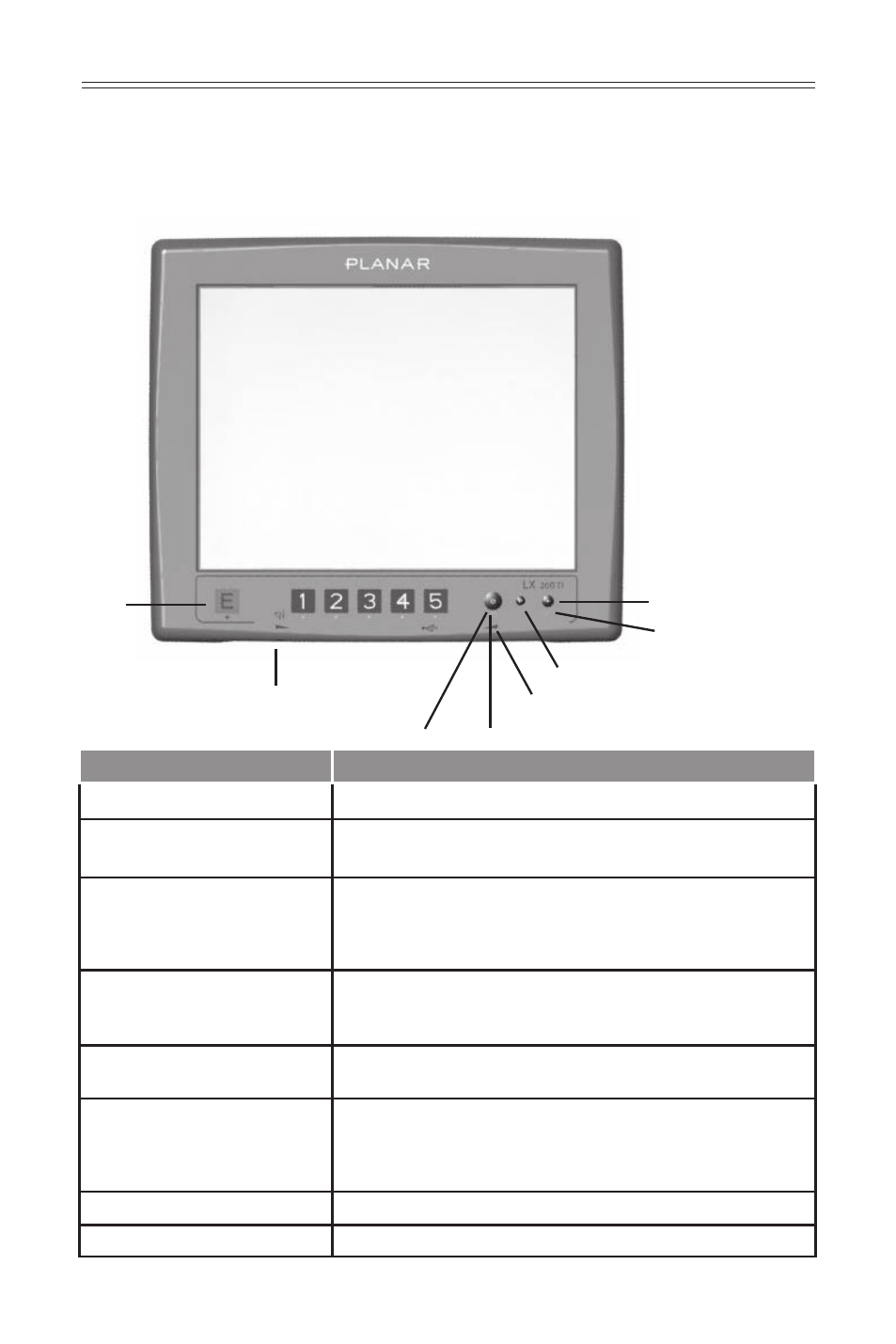

Volume Control
Softkeys
Brightness/Backlight Control
Backlight Indicator LED
Power Indicator LED
Remote PC Power Button
Backlight On/Off Button
Autosync
