Philips Lightolier QCE2X4PFOS - Manual (Page 2)

Alter Concept Elegance
Page 2 of 2 2' x 4' direct/indirect recessed fluorescent
Job Information Type:
Lightolier is a Philips group brand
Lightolier www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2008 Philips Group • QCE2x4PFOS.pdf
Canlyte www.canlyte.com
3015 Louis-Amos, Lachine, Québec H8T 1C4 • (514) 636-0670 • (514) 636-0460
ZONE
DEG
ALONG 22.5 45 67.5 ACROSS
0 1163 1163 1163 1163 1163
5 1156 1165 1158 1157 1153
10 1142 1147 1150 1145 1146
15 1116 1120 1127 1128 1132
20 1077 1084 1097 1100 1105
25 1032 1041 1054 1070 1074
30 973 995 1008 1027 1042
35 910 925 952 983 998
40 834 854 891 939 951
45 743 771 826 870 892
50 643 676 750 805 833
55 545 585 674 744 776
60 441 495 598 673 704
65 344 407 514 573 589
70 254 326 418 445 444
75 168 244 294 256 242
80 100 152 118 103 107
85 34 38 29 30 30
90 0 0 0 0 0
COEFFICIENTS OF UTILIZATION
ZONAL CAvITY METHOD * EFFECTIvE FLOOR CAvITY REFLECTANCE = .20
80 70 50
Wall Reflectance
70 50 30 10 70 50 30 10 50 30 10
0 .81 .81 .81 .81 .79 .79 .79 .79 .75 .75 .75
1 .74 .71 .69 .66 .73 .70 .67 .65 .67 .65 .63
2 .68 .62 .58 .54 .66 .61 .57 .54 .59 .55 .52
3 .62 .55 .50 .46 .60 .54 .49 .45 .52 .48 .44
4 .57 .49 .43 .39 .55 .48 .43 .38 .46 .41 .38
5 .52 .43 .37 .32 .50 .42 .36 .32 .41 .36 .32
6 .48 .38 .32 .28 .46 .38 .32 .28 .36 .31 .27
7 .44 .34 .28 .24 .43 .34 .28 .24 .33 .28 .24
8 .40 .31 .25 .21 .39 .30 .25 .21 .29 .24 .21
9 .37 .28 .22 .18 .36 .27 .22 .18 .26 .21 .18
10 .34 .25 .19 .16 .33 .25 .19 .16 .24 .19 .16
DETERMINED IN ACCORDANCE WITH CuRRENT IES PuBLISHED PROCEDuRES
LuMINAIRE INPuT WATTS = 65.0
Room Cavity Ratio
ZONE LUMENS % LAMP % LUMINAIRE
0-30 914 17.59 25.92
0-40 1511 29.06 42.82
0-60 2737 52.64 77.56
0-90 3529 67.87 100.00
40-90 2017 38.81 57.18
60-90 791 15.23 22.44
90-180 0 .00 .00
0-180 3529 67.87 100.0

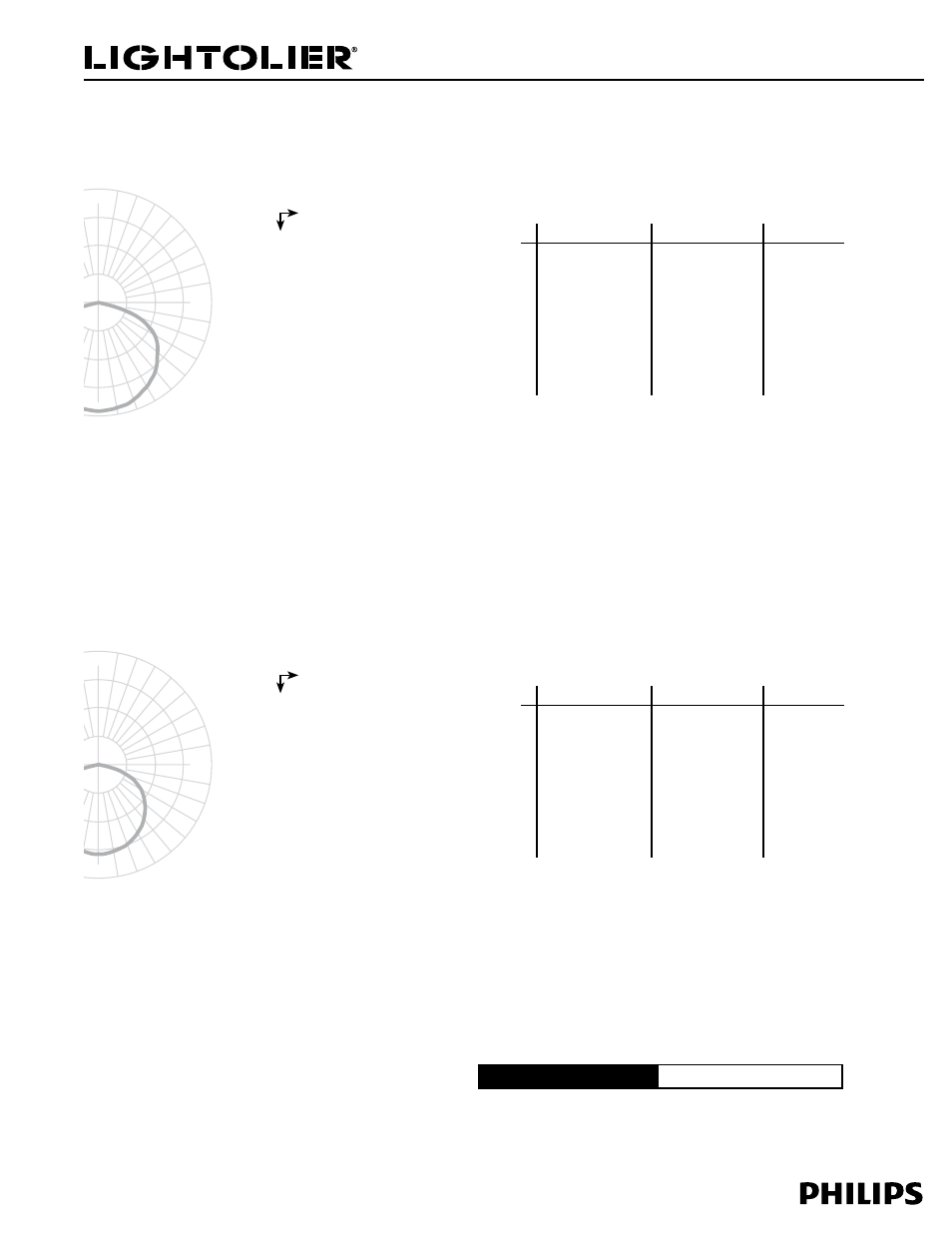

DISTRIBUTION
CANDLEPOWER CURVE 228
Performance
CANDLEPOWER
REPORT NO: LSCD076
CAT. NO: QCE2GPFOS228
2 28W T5 Fluorescent Lamps at 2600 lumens.
Efficiency: 67.9%
Candela at Nadir: 1163cd
90° 90°
180°
400
800
1200
0°
ZONE
DEG
ALONG 22.5 45 67.5 ACROSS
0 1904 1904 1904 1904 1904
5 1900 1896 1894 1896 1891
10 1867 1872 1879 1872 1867
15 1821 1834 1839 1840 1839
20 1760 1769 1783 1792 1795
25 1681 1695 1718 1735 1738
30 1596 1604 1646 1667 1674
35 1473 1504 1547 1587 1597
40 1344 1381 1445 1494 1507
45 1198 1244 1325 1380 1404
50 1038 1095 1194 1260 1293
55 873 941 1059 1147 1171
60 698 784 930 1014 1046
65 533 639 780 867 874
70 386 501 630 671 658
75 259 365 437 401 362
80 147 231 185 164 168
85 47 62 49 60 58
90 0 0 0 0 0
COEFFICIENTS OF UTILIZATION
ZONAL CAvITY METHOD * EFFECTIvE FLOOR CAvITY REFLECTANCE = .20
80 70 50
Wall Reflectance
70 50 30 10 70 50 30 10 50 30 10
0 .86 .86 .86 .86 .84 .84 .84 .84 .80 .80 .80
1 .79 .76 .73 .70 .77 .74 .71 .69 .71 .69 .67
2 .72 .66 .62 .58 .70 .65 .61 .57 .62 .59 .56
3 .66 .59 .53 .49 .64 .57 .52 .48 .55 .51 .47
4 .60 .52 .46 .41 .59 .51 .46 .41 .49 .44 .40
5 .55 .46 .39 .35 .53 .45 .39 .35 .43 .38 .34
6 .51 .41 .35 .30 .49 .40 .34 .30 .39 .34 .30
7 .46 .37 .31 .26 .45 .36 .30 .26 .35 .30 .26
8 .43 .33 .27 .23 .42 .32 .27 .22 .31 .26 .22
9 .39 .30 .24 .19 .38 .29 .23 .19 .28 .23 .19
10 .37 .27 .21 .17 .36 .26 .21 .17 .26 .21 .17
DETERMINED IN ACCORDANCE WITH CuRRENT IES PuBLISHED PROCEDuRES
LuMINAIRE INPuT WATTS = 96.2
Room Cavity Ratio
ZONE LUMENS % LAMP % LUMINAIRE
0-30 1489 19.10 26.58
0-40 2452 31.44 43.77
0-60 4393 56.33 78.40
0-90 5603 71.84 100.00
40-90 3150 40.40 56.23
60-90 1210 15.52 21.60
90-180 0 .00 .00
0-180 5603 71.84 100.00
DISTRIBUTION
CANDLEPOWER CURVE 328
Performance
CANDLEPOWER
REPORT NO: LSCD077
CAT. NO: QCE2GPFOP328
3 28W T5 Fluorescent Lamps at 2600 lumens.
Efficiency: 71.8%
Candela at Nadir: 1904cd
0°
90° 90°
180°
800
1600
2400
