Controls and displays 04
23
En

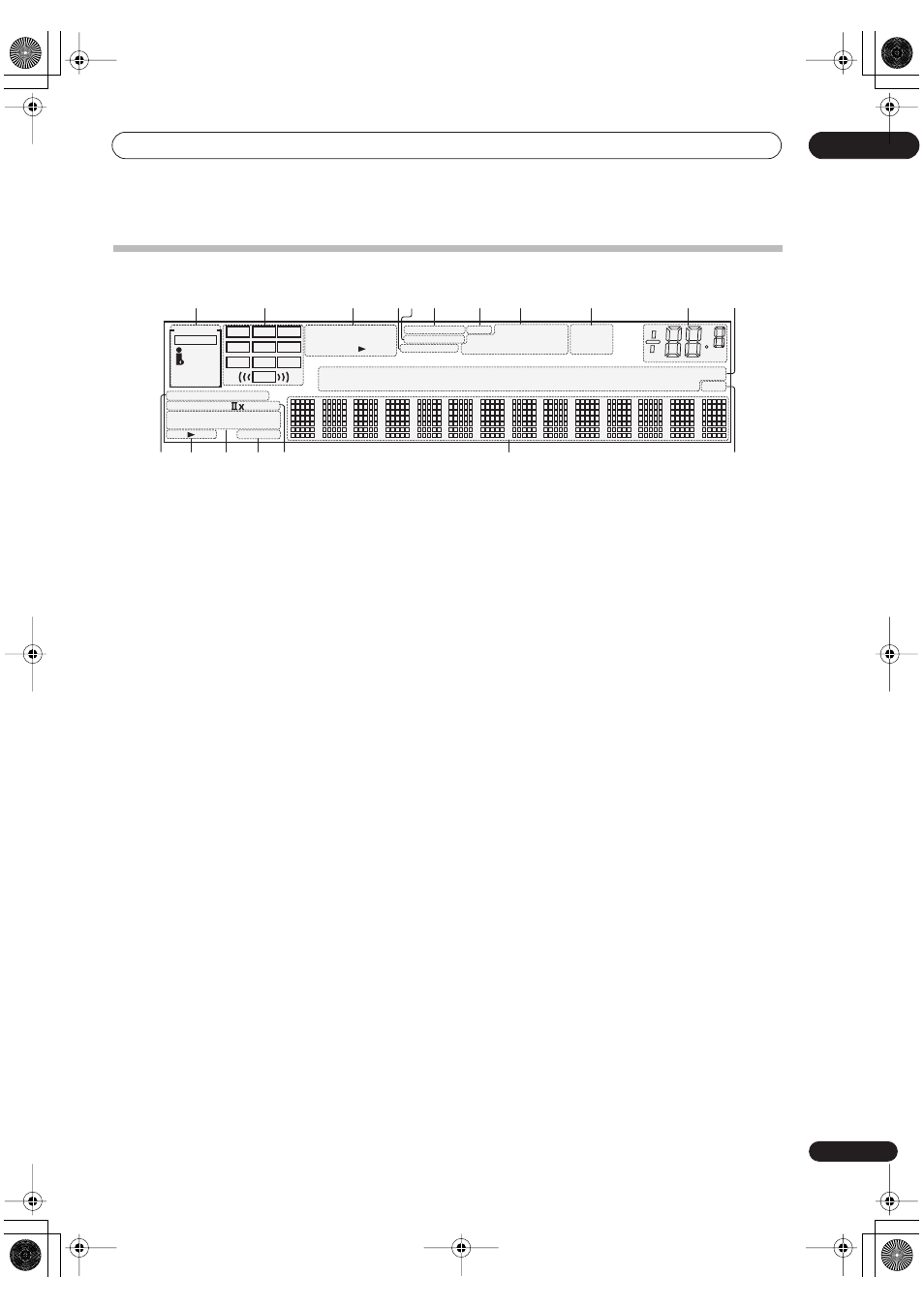

Display
1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the input
signal automatically (page 28).
2 Program format indicators
These change according to which channels are active in
digital sources.
L – Left front channel
C – Center channel
R – Right front channel
SL – Left surround channel
S – Surround channel (mono)
SR – Right surround channel
SBL – Left surround back channel
SB – Surround back channel (mono)
SBR – Right surround back channel
LFE – Low frequency effects channel (the ((( ))) indicators light when
an LFE signal is being input)
3 Digital format indicators
Light when a signal encoded in the corresponding format
is detected (
DSD PCM lights during DSD (Digital
Stream Direct) to PCM conversion with SACDs).
4 OVER / ATT
OVER lights to indicate that the level of an analog source
is too high. ATT lights when you use the attenuator
( ANALOG ATT ) to reduce it.
5 MULTI-ROOM
Lights when the multi-room feature is active (page 55).
6 VIDEO CONV.
Lights when digital video conversion is enabled (page 64).
7 V.SB
Lights during Virtual surround back processing
(page 29).
8 Sound processing indicators
Light according to the active AV parameter(s) (page 64).
9 TUNER indicators
TUNED – Lights when a broadcast is being received.
STEREO – Lights when a stereo FM broadcast is
being received in auto stereo mode.
MONO – Lights when the mono mode is set using
the MPX button.
10 Master volume level
Shows the overall volume level. –80dB indicates the
minimum level, and +12dB indicates the maximum level.
11 Input source indicators
Light to indicate the input source you have selected.
12 STREAM DIRECT
Lights when Direct / Pure Direct is selected (page 28).
13 Speaker indicators
Lights to indicate the current speaker system, A and/or B
(page 53).
14 Listening mode indicators
THX – Lights when one of the Home THX modes is
selected.
ADV. SURROUND – Lights when one of the
Advanced Surround modes has been selected.
STEREO – Lights when stereo listening is switched
on (see Listening in stereo on page 28).
STANDARD – Lights when one of the Standard
Surround modes is switched on (see Listening in
surround sound on page 26).
15 SLEEP
Lights when the receiver is in sleep mode (page 66).
16 Matrix decoding format indicators
2 PRO LOGIC IIx – This lights to indicate 2 Pro
Logic II / 2 Pro Logic IIx decoding (page 26).
Neo:6 – When one of the Neo:6 modes of the receiver
is on, this lights to indicate Neo:6 processing
(page 26).
17 Character display
Displays various system information.
18 SR+
Lights when the SR+ mode is switched on (page 59).
2 1 3 8 7 6 9 10 11
17 13 12 15 18 16
4 5
14
SIGNAL L C R
SL S SR
SBL SB
LFE
SBR
AUTO
ADV.SURROUND
STANDARD
SLEEP
THX
STEREO
SP AB
HDMI
DIGITAL
STREAM
PRO LOGIC
DIGITAL
WMA9 Pro
CD
CD-R
TUNER
PHONO
MULTI IN
iPod
DVD
TV
SAT
DVR
VIDEO
[ 1 ]
HDMI
[ 2 ]
USB XM
SR+
DSD PCM
96/24
DTS VIDEO
MULTI-ROOM
OVER ATT TONE MONO
dB
Hi-bit/sampling
DIALOGUE LOUDNESS STEREO
CONV. V.SB DNR MIDNIGHT TUNED
N eo : 6 2
2
DIRECT
ANALOG
