15 16

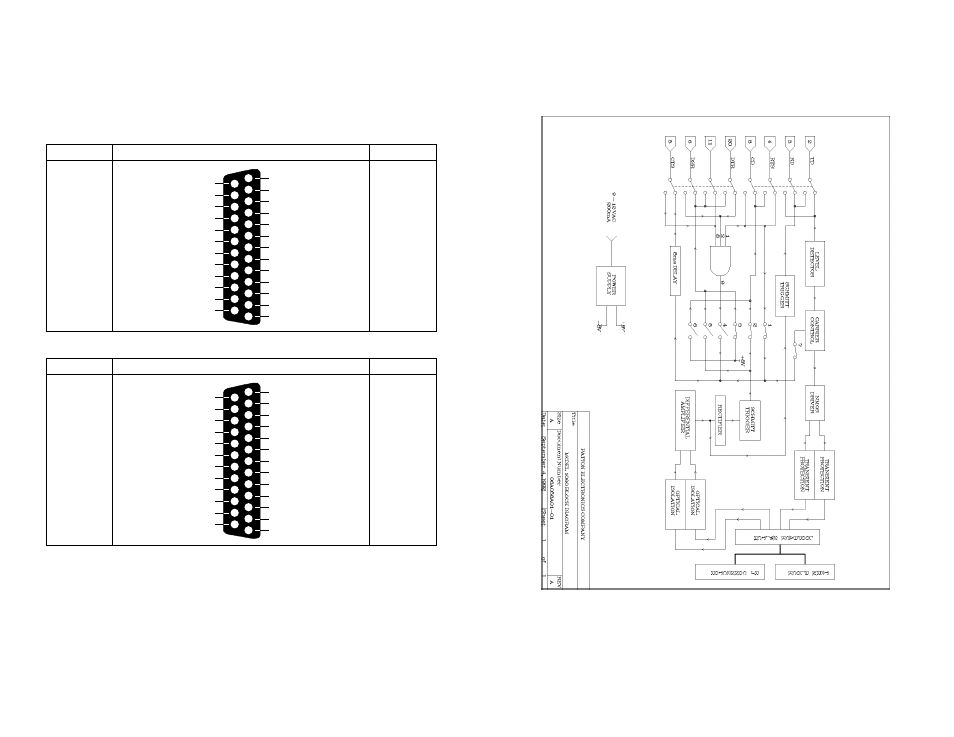

APPENDIX C
PATTON MODEL 1060 INTERFACE PIN ASSIGNMENTS
1- (FG) Frame Ground
2- (TD) Transmit Data
To Model 1060
3- (RD) Receive Data From Model 1060
4- (RTS) Request to Send To Model 1060
5- (CTS) Clear to Send From Model 1060
6- (DSR) Data Set Ready From Model 1060
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
From Model 1060
11- To Model 1060
To Model 1060 Data Term. Ready (DTR) - 20
DIRECTION STANDARD "DCE" SETTING DIRECTION
1- (FG) Frame Ground
2- (TD) Transmit Data
From Model 1060
3- (RD) Receive Data To Model 1060
4- (RTS) Request to Send From Model 1060
5- (CTS) Clear to Send To Model 1060
6- (DSR) Data Set Ready To Model 1060
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
To Model 1060
11- From Model 1060
From Model 1060 Data Term. Ready (DTR) - 20
DIRECTION STANDARD "DTE" SETTING DIRECTION
APPENDIX D
BLOCK DIAGRAM
