Host Card Back Panel Connectors and Pinouts
Page 40

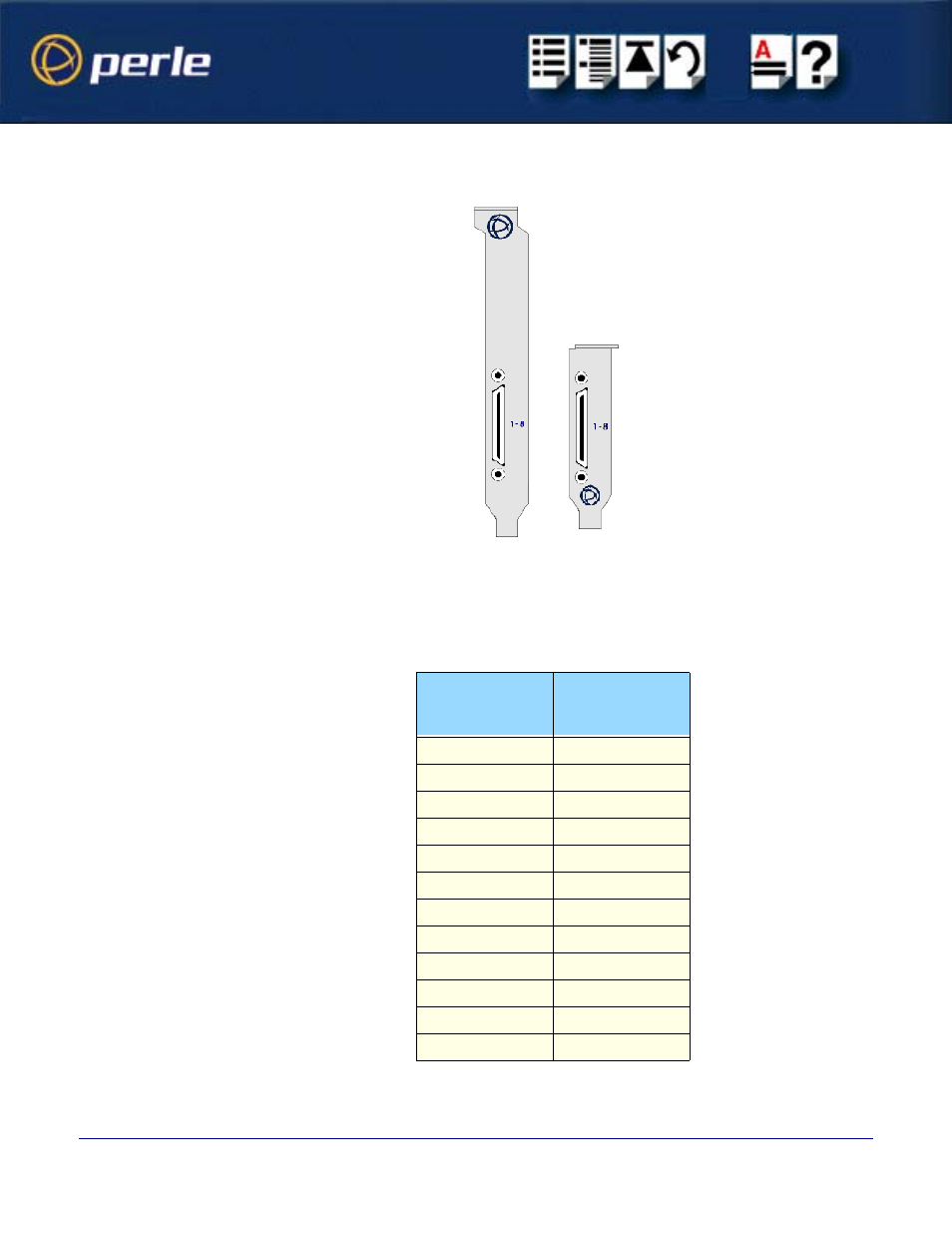

The following diagram shows the SPEED8 LE HD standard and Low profile back panels
respectively
The connector pinout for each VHDCI-68 Ultra SCSI connector fitted to the SPEED8 LE HD,
Low profile are as follows;
Ports 1-8 of VHDCI-68 Connector for SPEED8 LE HD adapter cards
VHDCI-68 Ultra
SCSI Pin
Number
EIA-232
1 RXD7
2 CTS7
3 RI7
4 RTS7
5 DCD7
6 DTR7
7 DSR7
8 TXD7
9 S-GND
10 TXD5
11 DSR5
12 DTR5
