CONNECTING THE SUBWOOFER TO
THE SYSTEM—HOOKUP OPTIONS
IMPORTANT NOTE: USE ONLY ONE OF THESE OPTIONS.
NEVER COMBINE HOOKUP OPTIONS.

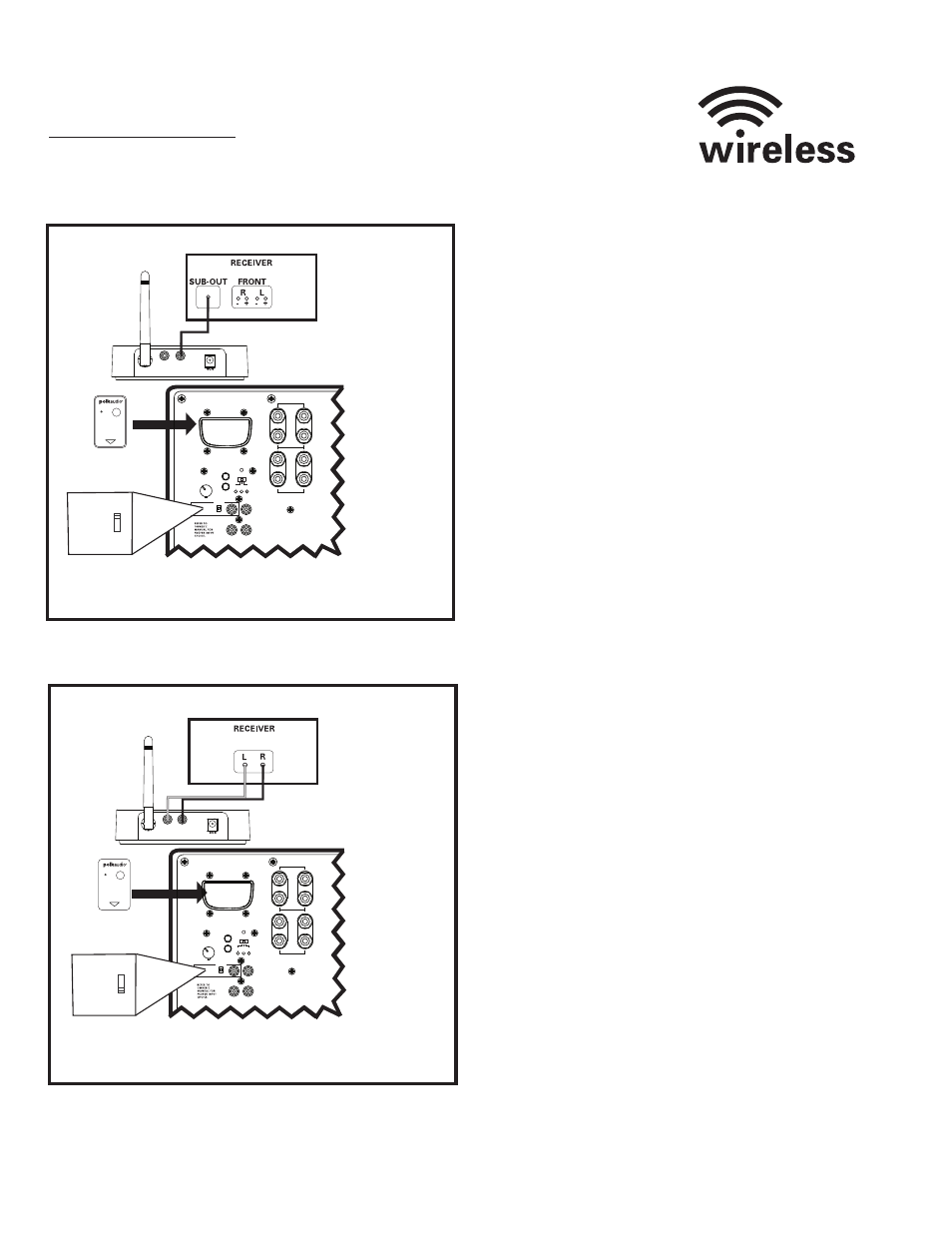

Wireless Connections
OPTION #1 LFE
Verify that on your receiver you have a dedicated subwoofer output jack,
(common on most Dolby Digital 5.1, 6.1 and 7.1 surround receivers). The
output will be labeled “SW Out,” “Sub-Pre Out” or something similar. Using a
single subwoofer cable, connect the receiver to the LFE input on the transmitter
as shown in the OPTION #1 illustration.
OPTION #2 Line Level
If your receiver does not have a dedicated subwoofer output jack (common with
stereo (2 channel) and older Dolby Pro-Logic receivers), use line level connections.
Connect the preamp outputs of your receiver and to the LEFT and RIGHT inputs on
the transmitter as shown in the OPTION #2 illustration.
ANTENNA
DC 5V 1.0A
LEFT RIGHT/
LFE
PWSK-1 TRANSMITTER (SOLD SEPARATELY)
PWSK-1 RECEIVER
(SOLD SEPARATELY)
SCAN
VOLUME
PWSK-1
WIRELESS ADAPTOR PORT
UP
DOWN
USE AS LFE
LINE IN
LINE OUT
L
L
LFE/R
R
LOW PASS
60Hz
110Hz
160Hz
YES
NO
SPEAKER IN
SPEAKER OUT
+
–
R
IG
H
T
R
IG
H
T
LE
FT
LE
FT
+
–
POWER
STAND AUTO ON
BY
USE AS LFE
YES
NO
ANTENNA
DC 5V 1.0A
LEFT RIGHT/
LFE
PWSK-1 TRANSMITTER (SOLD SEPARATELY)
PRE-AMP OUT
PWSK-1 RECEIVER
SCAN
(SOLD SEPARATELY)
VOLUME
PWSK-1
WIRELESS ADAPTOR PORT
UP
DOWN
USE AS LFE
LINE IN
LINE OUT
L
L
LFE/R
R
LOW PASS
60Hz
110Hz
160Hz
YES
NO
SPEAKER IN
SPEAKER OUT
+
–
R
IG
H
T
R
IG
H
T
LE
FT
LE
FT
+
–
POWER
STAND AUTO ON
BY
USE AS LFE
YES
NO
