V.92/V.90
K56Flex ™
V.34+
ISDN SOHO Router

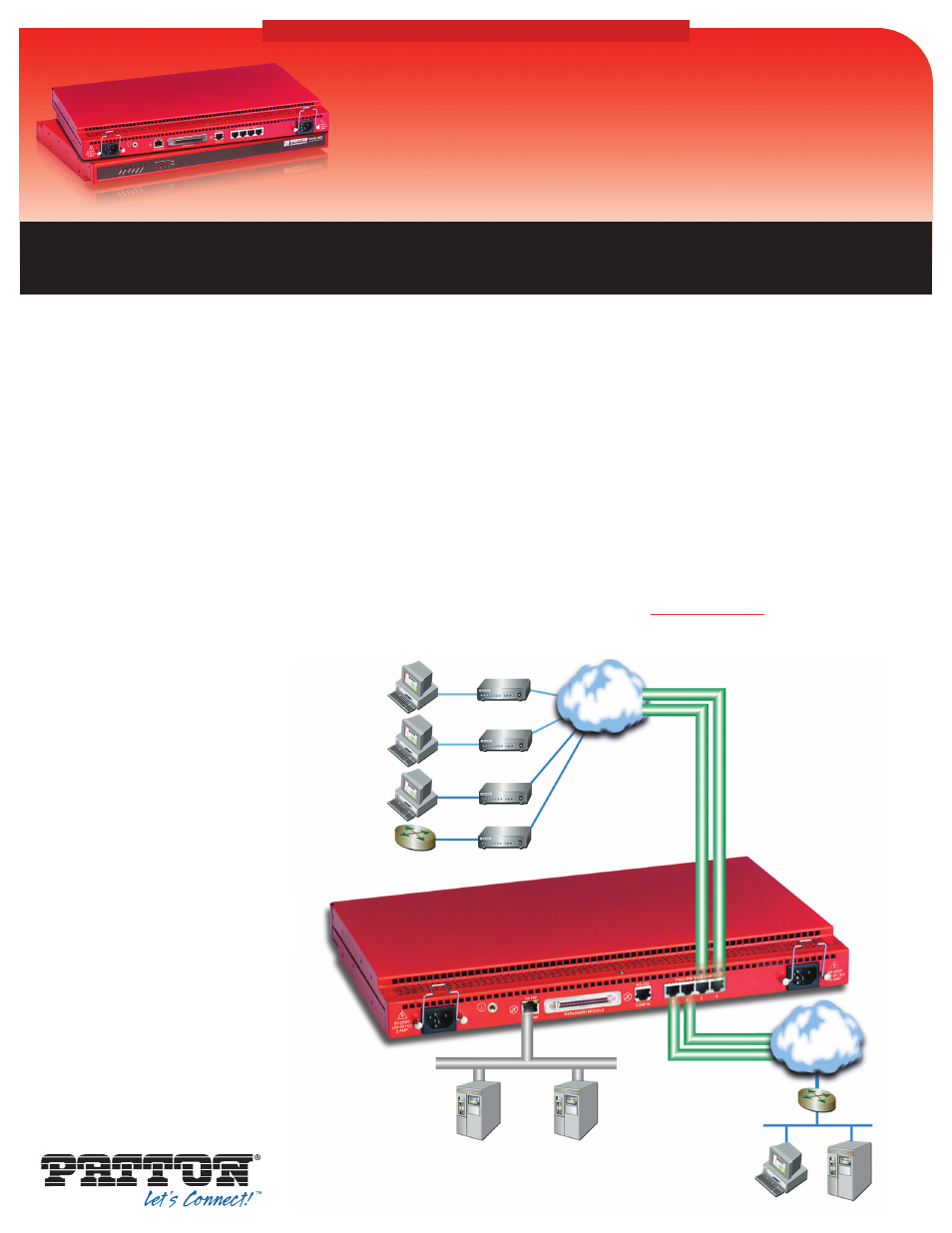

Dial-Up Users
Internet
& WWW
The 2960 RAS supports over
20 signaling methods and
PSTN/ISDN switch types and
16/24/30/48/60 analog or
digital modems
T he Model 2960 integrates standard
CSU/DSUs and a 10/100 Ethernet port
with Frame Relay and PPP/HDLC pro-
tocol support
WWW
PSTN/ISDN
10/100 Ethernet Port
Two Frame Relay/PPP
Uplink Ports with
integrated T1 CSU/DSU
and E1 NTU
24/30 Calls
on each
T1/PRI and
E1/PRI
Access Port
Model 2960 RAS
T he Patton 2960 RAS is an ideal
solution for the established
Internet Service Provider that is
expanding into a new calling area.
By integrating capabilities into our
2960 Remote Access Server, the ISP
lowers expansion costs and produces
revenue immediately.
The 2960 RAS integrates up to 60 analog
and digital modems, radius Accounting
and Authentication Client, a 10/100
Ethernet port, IP Routing, Frame Relay
forwarding, and four built-in E1/T1
CSU/DSUs. It connects 16 to 60 dial-in-
modems with V.92, V.44, V.90, K56Flex,
V.34+ or ISDN users to the Internet, IP
LANs, or Corporate Intranets. Load-
sharing dual-redundant power supplies
and integrated Web-based SNMP/HTTP
management system capabilities make
our 2960 RAS the most reliable and easi-
est to use RAS in the business!
For more information, visit us
at
www.patton.com.
The Patton 2960 Remote Access Server provides 16 to 60 dial-up ports each supporting V.92, V.90,
V.44, K56Flex™, V.34+, and ISDN connections.
Remote Access Server
Patton 2960 Dual T1/E1/PRI RAS
Remote Access Products
SNMP/HTTP Network Management
Use a standard Web Browser, HP OpenView™ or
simple PCs to configure and manage the 2960
MultiLink and Multichassis Support
Combine multiple dial-in sessions, even across
boxes to deliver the highest performance
Dual-Redundant Power Supplies
Provide non-stop access with our high MTBF
2960. Convection-cooled and stackable
without fans
Frame Relay & PPP Network Uplinks
Dual Network uplinks to a FR switch or IP router
for high speed trunking
Dynamic Analog/Digital Modems
All modems (V.92, V.44, V.90, K56Flex™, V.34+
and ISDN) are dynamically supported on dedicat-
ed DSPs
16, 24, 30, 48, or 60 ports in a 1U-
High Platform
Model 2960 uses the latest technology
to achieve the highest densities
Dial-out/Callback/Dial-on-demand
Use the Model 2960 as a dial-out modem pool
and support advanced dial-out applications
