Patton electronic 1006 User Manual

Page 5

8. Place the 2 halves of the strain relief assembly on either side

of the telephone wire and press together very lightly. Slide the
assembly so that it is about 2 inches from the terminal posts
and press together firmly. If your cable diameter is too small
or too large for our strain relief, please contact our technical
support. We have strain relief assemblies to accommodate
most cable diameters.

Insert the strain relief assembly with the wire going through it

into the slot in the bottom half of the modem case and set it
into the recess in the case.

4. Connect

one pair

of wires to XMT+ and XMT- (transmit positive

and negative) on the terminal block, making careful note of
which color is positive, and which color is negative.

5. Connect the

other pair

of wires to RCV+ and RCV- (receive

positive and negative) on the terminal block, again making
careful note of which color is positive and which color is
negative.

Ultimately, you will want to construct a two pair crossover cable

that connects the two short hauls as shown below:

6. If there is a shield around the telephone cable, it may be

connected to “G” on the terminal block. To avoid ground
loops, we recommend connecting the shield only at the
computer end. A ground wire is

not necessary

for proper

operation of the Model 1006.

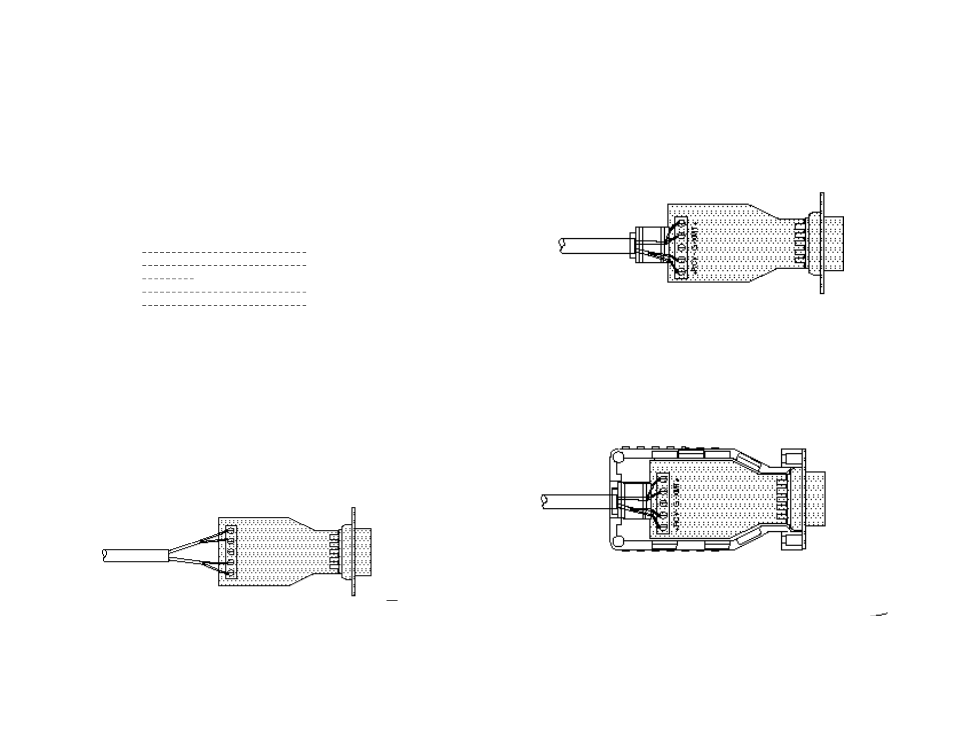

7. When you finish connecting the wires to the terminal block, the

assembly should resemble the diagram below:

XMT +

RCV+

XMT -

RCV -

XMT -

RCV +

XMT +

To Shield (Optional)

}

One Pair

}

One Pair
