Philips MCD 190 - Manual (Page 2)

4
speaker
(right)
speaker
(left)
AC power cord
FM wire
antenna MW loop
antenna
1
2
3

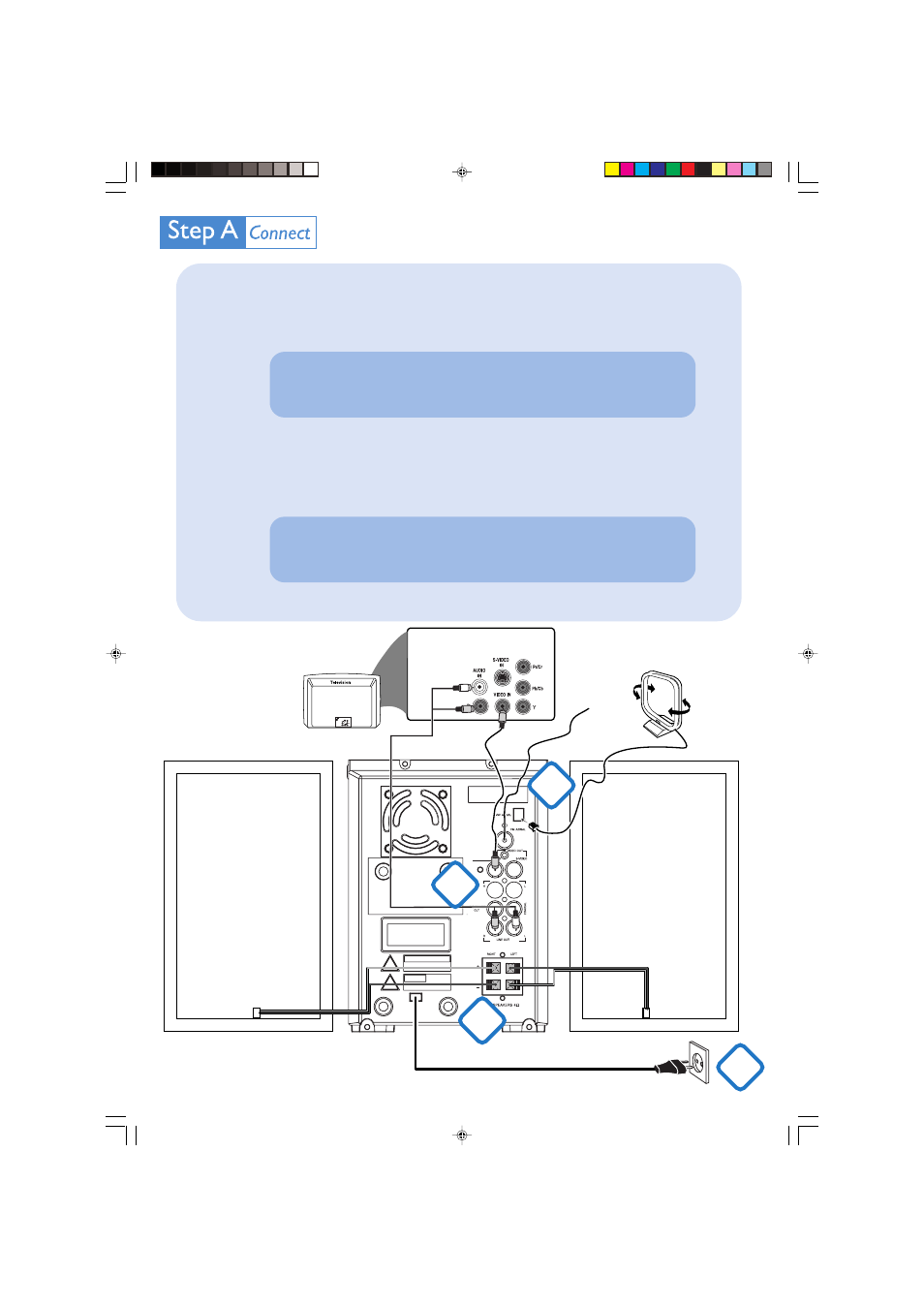

Connect the speaker wires to the SPEAKERS terminals, right speaker to " RIGHT " and left speaker to
" LEFT ", coloured (marked) wire to " + " and black (unmarked) wire to " – ".
For radio reception, connect the supplied MW antenna to the "MW AERIAL" terminal.
Use the composite video cable (yellow) to connect the system's VIDEO jack to the video input jack (or labeled
as A/V In, Video In, Composite or Baseband) on the TV set.
Connect the power cord of the DVD system to the AC power outlet.
1
2
3
Tip
See the User Manual for other TV connection options.
4
Tip
It is unnecessary to connect the FM pigtail antenna since it
is fixed to the main unit.
