RED LIGHT: Standby
GREEN LIGHT: Power on

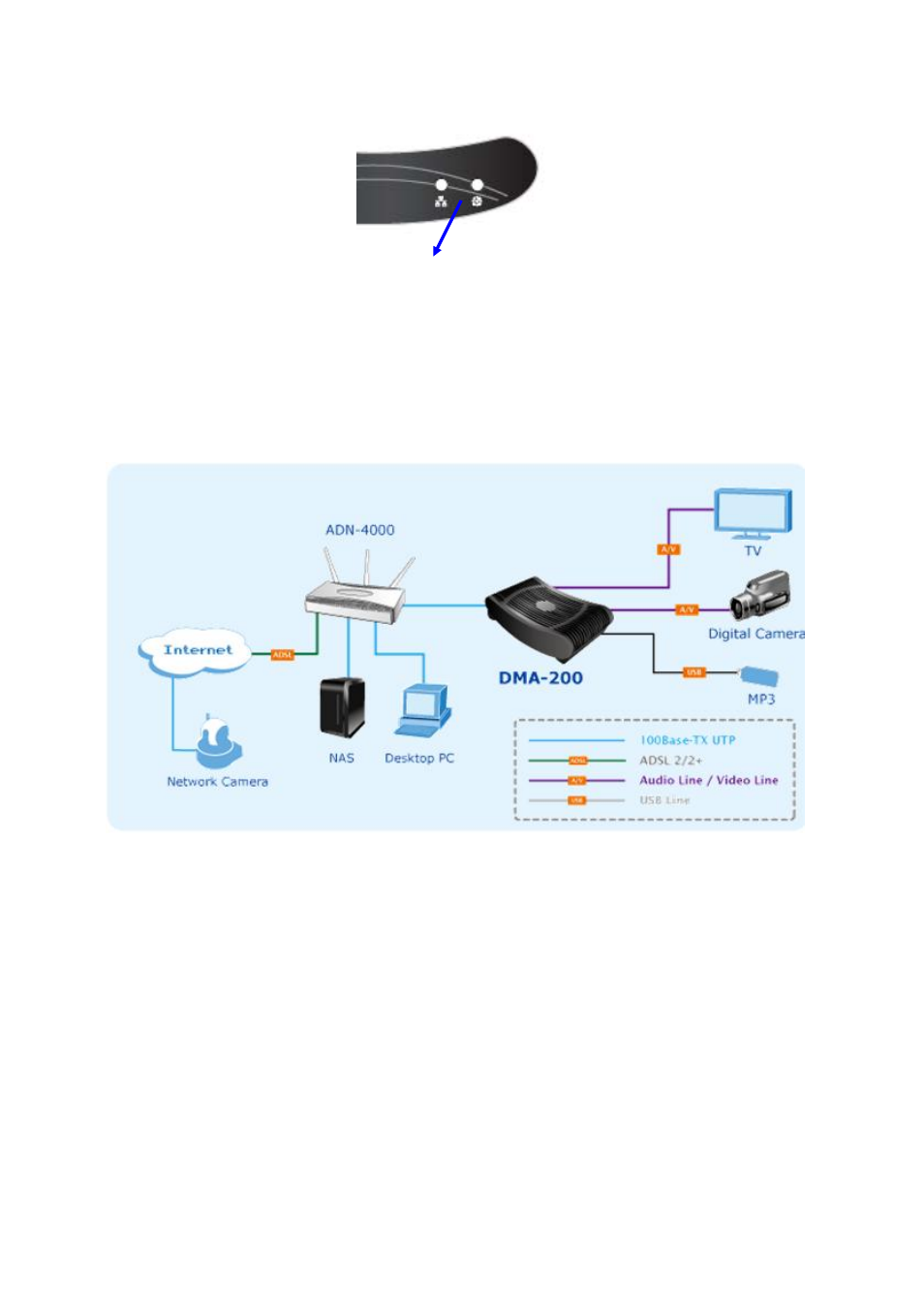

Connection Diagram
Following is a connection example with network and UPnP devices.
Configuring the Digital Media Center
Please reference the follow steps to setup the Digital Media Center
Step1Î Turn on the TV. Set the video sources selector on your TV to match
the connection from your Digital Media Center.
For example, if you used HDMI, set the TV to use “HDMI” Input.
Step2Î Turn on the Digital Media Center. The LED on the front panel of the
Digital Media Center lights up to show that it is powered on.
