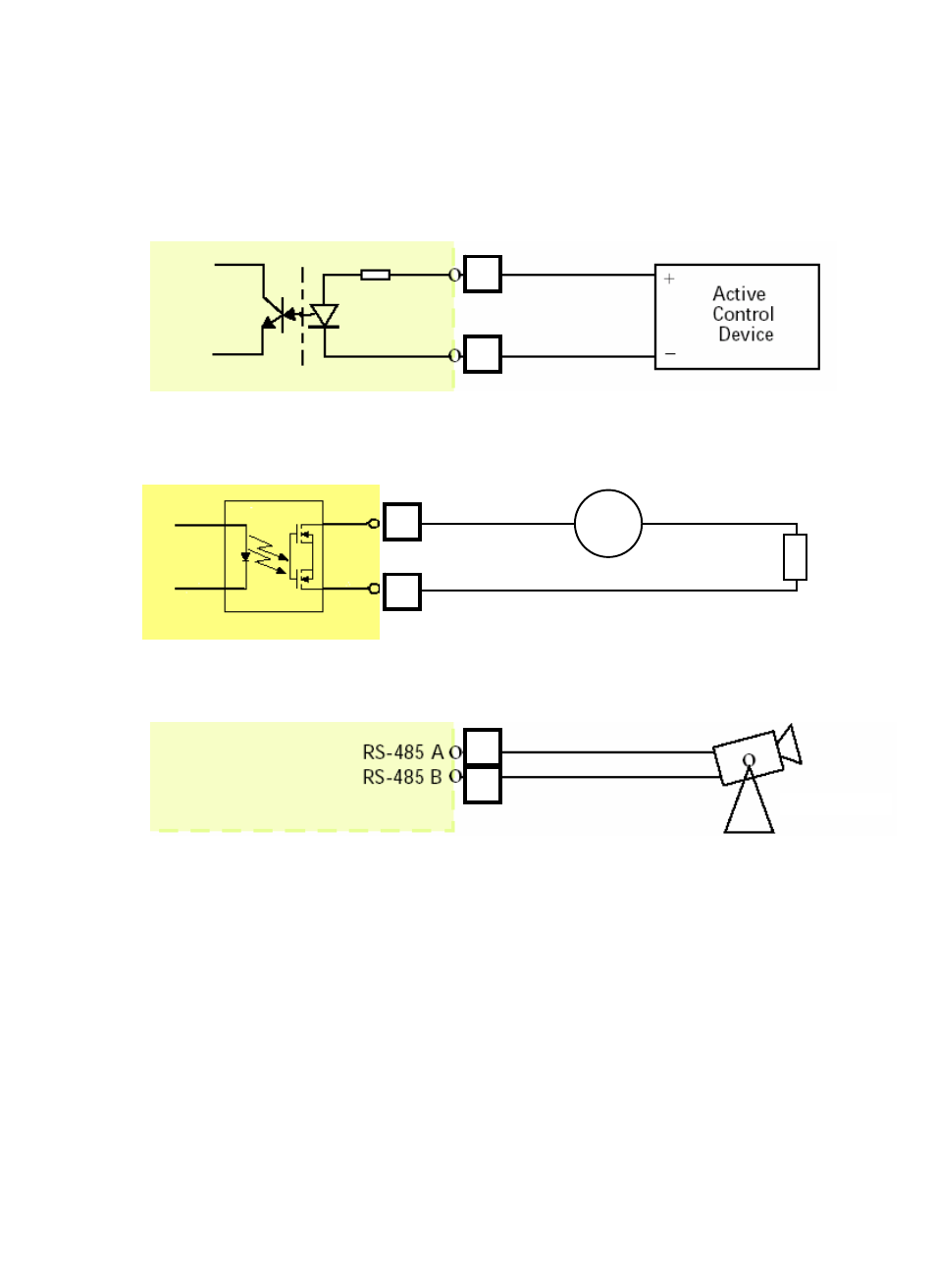

Interface Schematic
1. Input
device (active control device) has independent
power supply.
3
4
2. Output device (load) is driven by external power supply.
AC/
DC
6
5
Load
3. RS485 Interface
1
2
PTZ Camera
94
