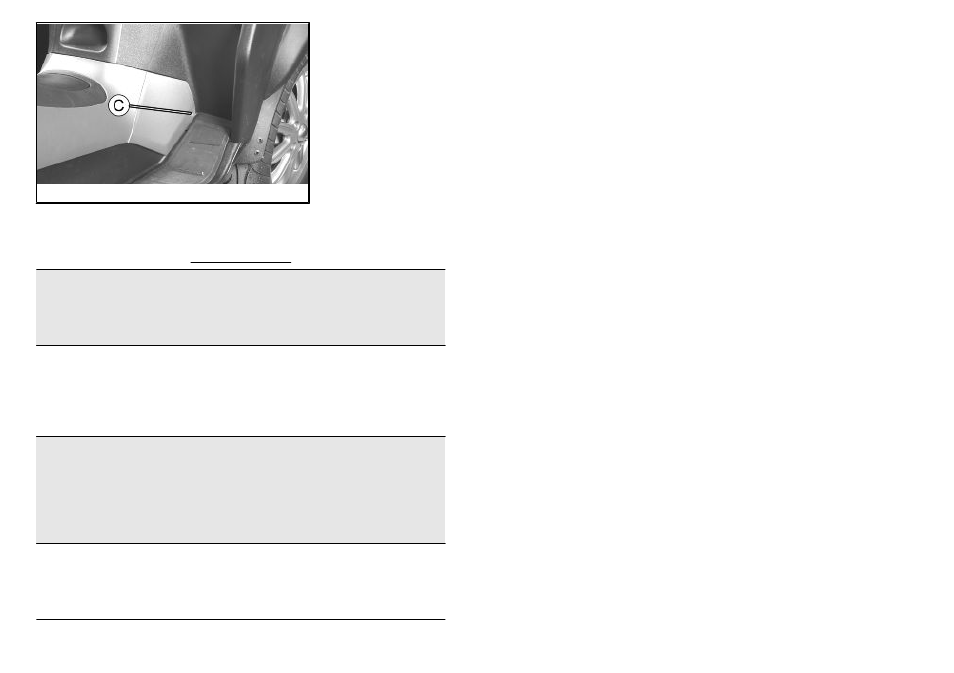

FUSE TABLE
Fuse No. 1
Capacity: 7.5 A
Protected circuits:Injection ECU
battery power
Fuse No. 2
Capacity: 15 A
Protected circuits:Battery-
powered injection loads, electrical
fan
Fuse No. 3
Capacity: 15 A
Protected circuits:Battery power
for saddle opening receiver, case
lighting, headlight relay, turn
indicator control device
Fuse No. 4
Capacity: 20A
Protected circuits:battery-
powered ECU for parking control
59
3 Maintenance
