Advanced Operations
adjustment has 2 options for
your setting: 4:3 and 16:9. This
option is used to display image due
to the panavision on the normal TV
set. The option will display in 16:9
Full-screen mode, when the DVD
player is connected with the TV and
open the Full-screen mode.
3. The Display Mode item can be
modified only when the TV Display
mode is set to 4:3. Two options are
provided: Mailbox and Plane-scan.
Mail box: This option will display the
panoramic movie in a smaller portion
of the screen. And the movie might
appear with black bars both at the top
and the bottom of the screen now.
: This option refers to
pictures where the left and right
edges of the picture are cut off to fit
the whole screen size. It is the
default display mode of normal TV
set.
Pan-scan
This mode will be selected when the
picture is displayed in panoramic
view and complete scan format.
AUDIO Setup
1. You can operate as following:
Press Up/Down to move among
different options.
Press Left/Right to change the
options.
Press ENTER to go back to the Audio
Setup page.
3. The 2.0 multichannel surrounding
stereo audio output is set up via the
2.0 Speaker Setup. This option is
used to set on the speaker volume
and position adjustment. You can
enjoy the best sound quality if the
distance between you and each
speaker is equal. After you press
certain option and enter, you will see
the speaker setup page.
(DRC) It is divided into 2 options:
ON and OFF. When the option is set
up ON, the dynamic range will
compress by reducing treble and
increasing soft sounds, making a
clear volume even at a low level.
LOCK Setup
1. You will enter the Lock Setup page,
which is used to set the Parental
Control.
2. The Rating option is used to set the
rate.
Before you enter this Rating option,
the system will request you to input
the password first. If the password
entered is correct, you can change
the parental control rating level.
If you haven' t set any password for
Parental Control, the system will
request you to input a new password.
If you make a mistake on password
and haven' t pressed ENTER to
confirm, you can press DELETE
button and enter your 4 digital
password again. 2. The Dynamic Range Compression

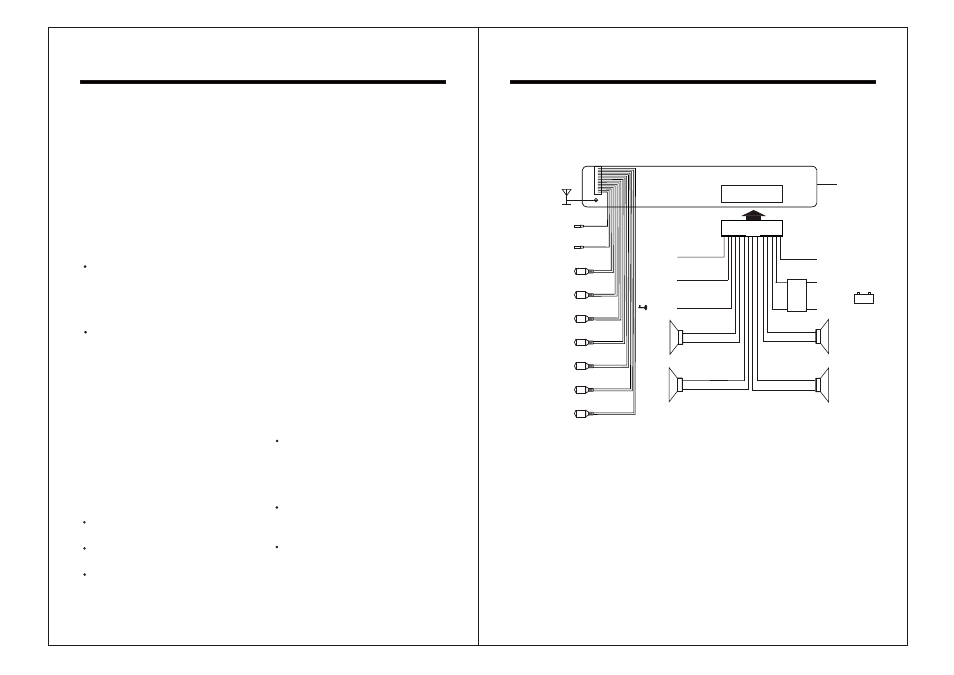

Wiring Connection
ANTENNA
10A ACC +
+
-
+
-
+
-
+
-
FRONT
L SP
REAR
L SP
Green
Green/Black
Yellow B+
Black B-
Pink
Grey
Grey/Black
POWER
ANTENNA
Blue
White
White/Black
Purple
Purple/Black
Red
Blue/White
AMPLIFIER CONTROL
DIMMER CONTROL
(Yellow)
VIDEO OUTPUT
VIDEO INPUT
(Yellow)
RCA LINE OUTPUT
L(White)
R(Red)
AUX LINE INPUT
L(White)
R(Red)
Black
Green
Brown
Black
Brown
Black
Yellow
SUBWOOFER
(Green)
BACK CAMERA
VIDEO CONTROL
Brown/white B+ 12V
SIDE BRAKE
Brown
UNIT
+ - FUSE
HOLDER
FRONT
R SP
REAR
R SP
