7
3

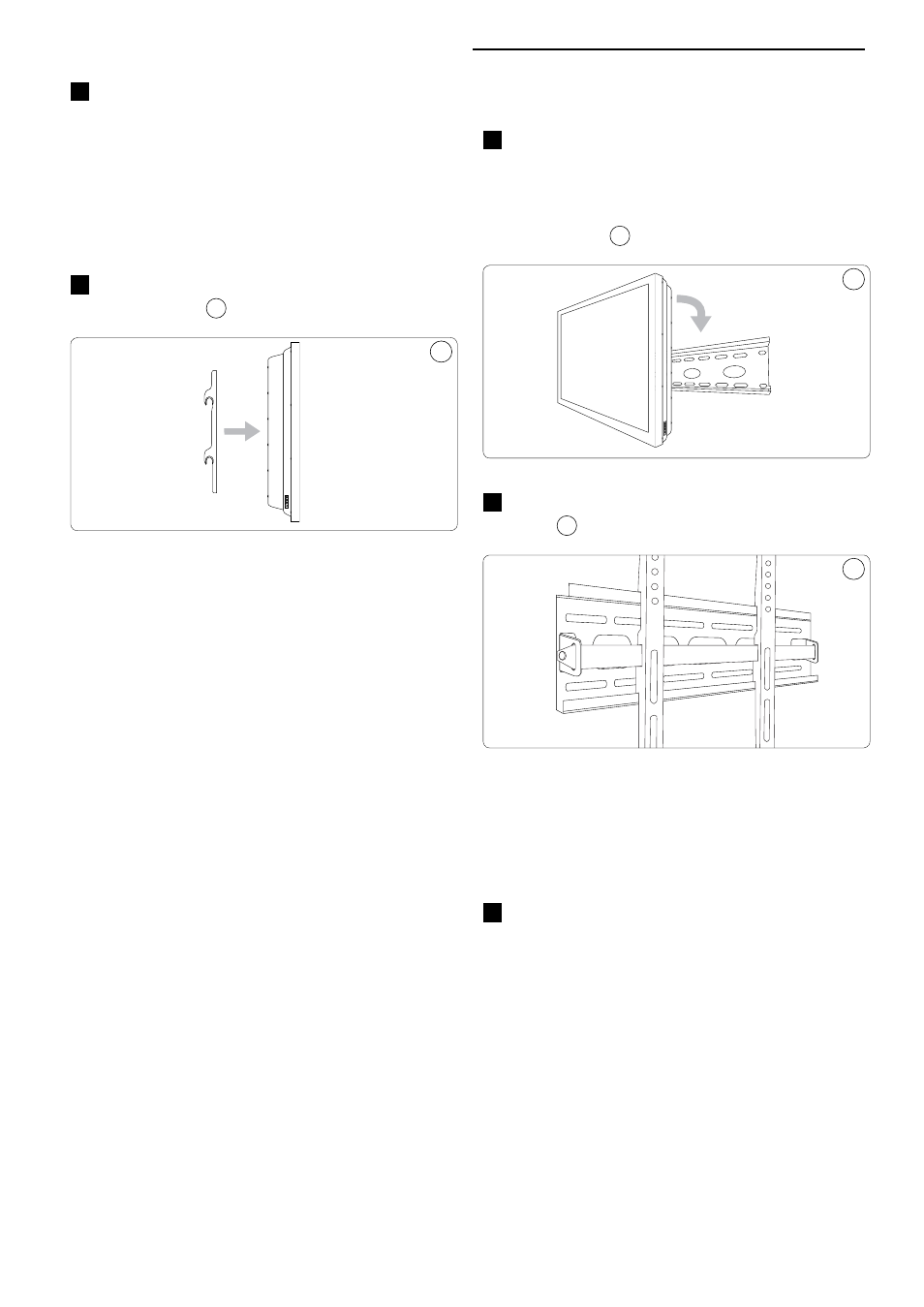

Attach the arms to the back of your display
using the bolts identified in Steps 1 and
2 and the corresponding lock washer
(C, F, I, or L). You will need to use the M6
washers (O) if you are using the M4, M5,
or M6 bolts. If your display has a curved or
recessed back, you may also need to use a
spacer (M or N).
4
Make sure the screws are snug, but do not
over-tighten.
5
5
E Tip
Use a longer bolt and spacer for
displays with curved or recessed
backs. Do not use the M6 washer (O)
if you are using the M8 bolts (J or K).
4 Mounting and adjusting
1
With the help of another person, carefully
lift your display and place it on the wall
plate. Do not release the display until the
mounting arms have securely hooked onto
the mount.
6
6
2
Carefully hook the display onto the wall
plate
7
7
B Warning
Insert the safety bar at the center of
the mount to avoid having the display
accidentally knocked off the mount.
3
This MUST be done in order to secure
the display to the mount. NOTE: A cotter
pin (included) Is used to secure the arms
to the mount OR a padlock (not included)
can be inserted into the hole at the end of
the saftey bar to help prevent theft of your
display. A small cotter pin can be used to
secure your display to the mount. (included)
