-15-
Input signals to an RGB monitor or image processor must
be supplied from the VIDEO/RGB connector through the
optional D Sub/BNC cable WV-CA9T5 or D Sub/D Sub
cable WV-CA9T9. NOTES:
• Output signals at the VIDEO/RGB connector can be
selected from the INITIAL SET menu.
• SYNC level can be selected from the INITIAL SET
menu.

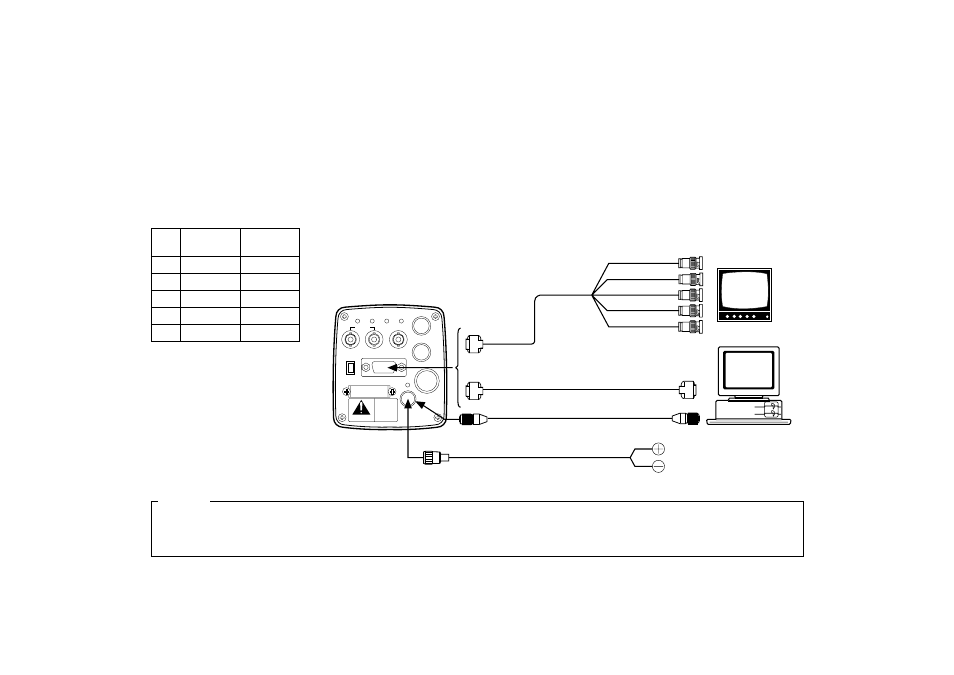

■ CONNECTION OF DEVICE WITH AN RGB MONITOR OR AN IMAGE PROCESSOR
Pin Wire's Output
No. Color Signal
3 Red R/PR/C
4 Green G/Y/Y
5 Blue B/PB
6 White Y/COMP
7 Black SYNC
WV-CA9T5 Cable Information
1. Connect this to a 12V DC class 2 power supply only.
2. To prevent fire or shock hazard, the UL listed wire VW-1, style 1007 should be used as for the cable for 12V DC Input
Connector.
Cautions
ZOOM/FOCUS
REMOTE
EXT DC IN
PAGE ITEM
(AWC)
UP
(ABC)
DOWN
(BAR)
IRIS
SEE MANUAL
CAUTION
CONNECT TO SPECIFIED
CLASS 2 POWER SUPPLY
ONLY SEE MANUAL
VBS/HD
75 ¶
VD
VIDEO/RGB
CONTROL
VIDEO OUT G/L IN
ON
OFF
RGB monitor or
image processing
device
Red
Green
Blue
Black
White
WV-CA9T5
WV-CA9T9
or
Power supply:
12 V DC, 2A min.
Computer
RGB/SYNC
connector
RGB/SYNC
connector
Conversion Cable WV-CA4C4P
To AG-B640 or AU-B110 or
Power Cable (locally purchased)
