2 P o l k A u d i o C u s t o m I n s t a l l P r o d u c t : L C 2 6 5 i - I P, L C 8 0 i - I P

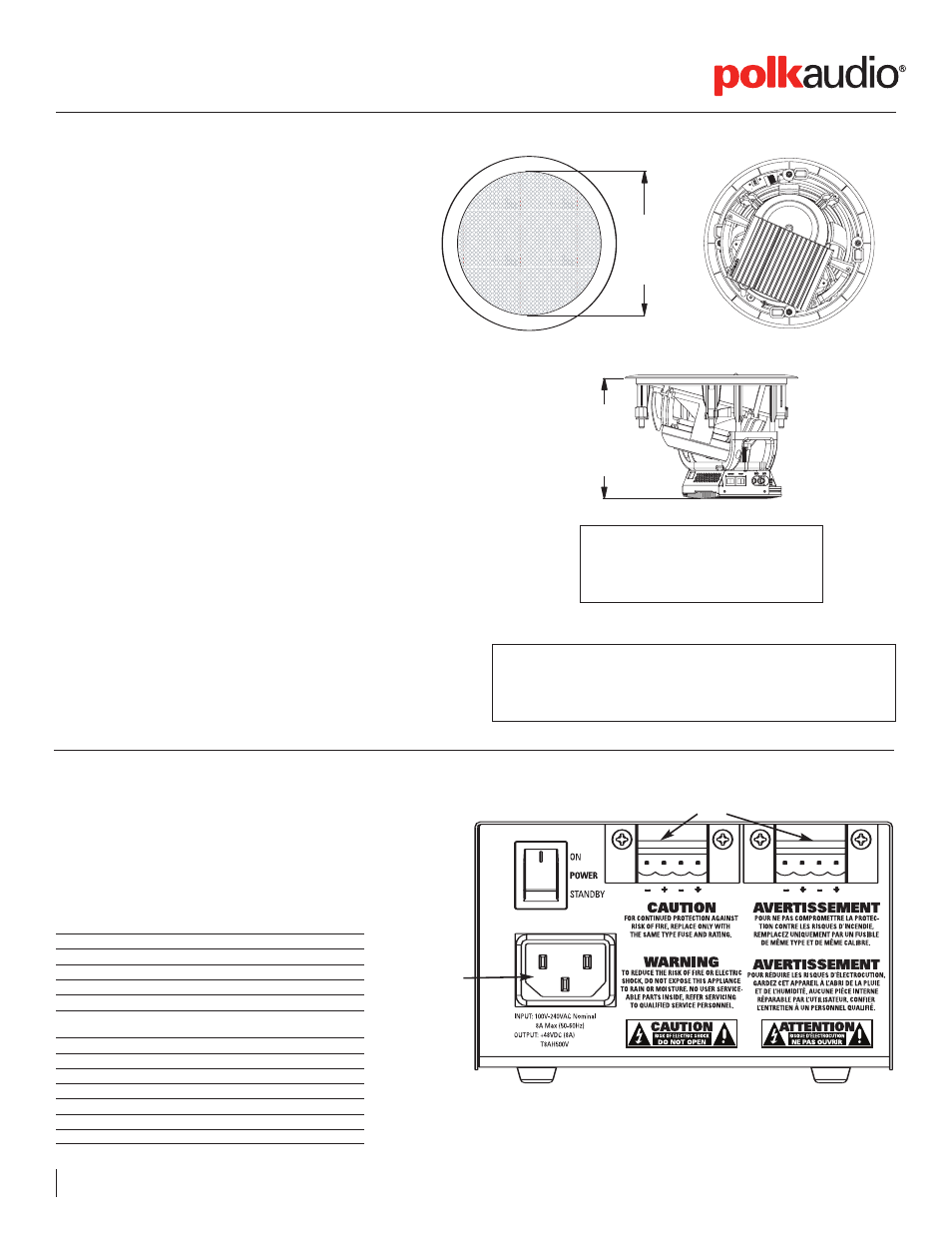

Cutout
Dimension
9 7/16"
(23.9 cm)
Total
Depth
7 7/16"
(18.9 cm)
LC80i-IP Dimension
Outer Diameter 10 3/4" (27.3cm)
Available Finish: Paintable White
IEC Socket
This is a standard
IEC socket.
Power Connectors
For optimum performance, we recommend using 14-gauge,
4-conductor wire between the power supply and each
amplifier (see the LCi-IP manual for other wiring options).
Note: Leave at least 2-3 inches
of clearance on the sides and
top of the power supply.
LC80i-IP Hardware
• One LC80i-IP speaker
• Performance Optimization Wizard – CD-ROM
• Euro-style (Phoenix) power supply connector
• Mounting template
• Paint mask
• Weather-resistant aluminum grille
and stainless steel hardware
• LCi-IP manual
• Laminated configuration setup card
• Registration card
Note: If you are setting up LCi-IP speakers to be controlled via an
IP-network such as NetStreams
™ Digilinx ™ , purchase a network card, which
is sold separately, from NewStreams ™ . The network card will control up to
one pair of speakers.
Important Note: If anything is missing or damaged, or if your LCi-IP speak-
er fails to operate, notify Polk Audio Installer Support Services
immediately at 800-377-7655.
Accessories (not included)
• Performance Enclosure for exact volume enclosure performance
in pre-build installations. Improves bass performance and
sound isolation. Model number: ENCL 80IP.
• Speaker-level-to-line-level transformer, such as the PAC SNI-35.
(For analog installations only. Powers up to 4 each LC80i-IP speakers.)
• SPS-1 Power Supply (a power supply is required).
Power Supply
The SPS-1 power supply was specifically designed to produce clean,
reliable power to ensure that all Polk Audio LCi-IP loudspeakers perform
to their maximum capabilities. All output connectors are protected
against short circuit and over current.
Specifications
Output
Voltage
48VDC
Current 8A (Max continuous)
Input
Voltage Range
100-240 VAC Nominal Auto Switching
Frequency 50-60Hz
Current Draw
8A (120V)
3.5A (240V)
Dimensions
Width
4.9" (125mm)
Height 3.1" (79mm) , 3 11/16"(93.6mm) with feet
Length 14" (358mm)
Shipping Weight 8.4lbs (4kgs)
Protection Thermal, short circuit, current/power overdraw
Fuse Replacement T8AH500V
LC80i-IP Performance Enclosure Dimensions
20 5/8" H x 13" W x 9" D (51.8cm x 33.0cm x 22.9cm)
Capabilites
SPS-1 will power 2 LC265i-IP speakers or 4 LC80i-IP speakers.
