APPENDIX B

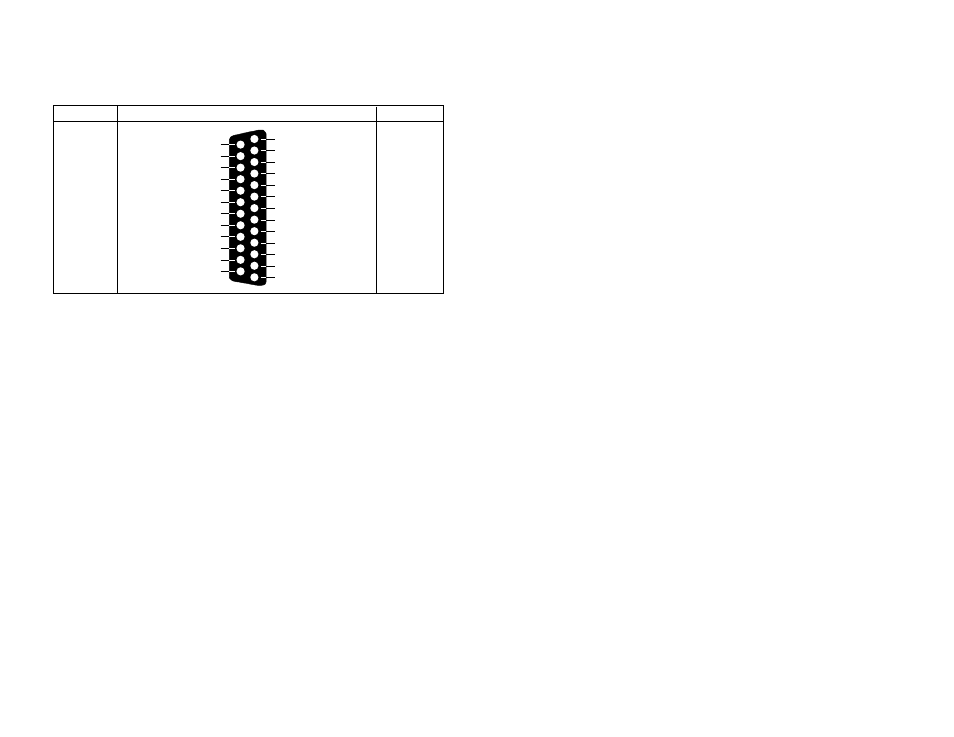

RS-232 PIN CONFIGURATIONS
Copyright © 1998
Patton Electronics Company
All Rights Reserved
1- (FG) Frame Ground
2- (TD) Transmit Data
To Model 1025
3- (RD) Receive Data From Model 1025
4- (RTS) Request to Send To Model 1025
5- (CTS) Clear to Send From Model 1025
6- (DSR) Data Set Ready From Model 1025
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect
From Model 1025
To Model 1025 Data Term. Ready (DTR) - 20
DIRECTION “DCE” STANDARD SETTING DIRECTION
To Model 1025 Transmitting Timing (LXC) - 24
From Model 1025 Transmitting Timing - 15
From Model 1025 Receiver Timing - 17
