NETWORK ACCESS—
WAN ROUTERS
LOW-COST WAN ROUTERS
48
CATALOG
Network Access & Connectivity
F E A T U R E S & B E N E F I T S
✔
T1/E1 WAN interface in industry-standard connectors
✔
PPP and Frame Relay —Versatile WAN options enable
deployment into any network. Use routed IP or bridged
Ethernet for transparent networking. Bridge passes VLAN
tagged frames (no VLAN tagging within the 2603)
✔
NAT/NAPT, Firewall, DHCP —Powerful routing features
make shared Internet connectivity simple and secure.
✔
10/100 Ethernet with MDI-X—Easily connect to any
computer or LAN—the built-in communication crossover
switch eliminates messy configuration cables.
✔
WWW/SNMP Manageable—Built-in VT-100 console port
makes setup a
snap, and you can use the embedded
HTTP/SNMP agent to manage an IPLink router from any-
where in the world.
This WAN Gateway Router is a complete all-in-one network access device which easily connects
your IP/LAN to any T1/E1 network interface with routed or bridged connections
The Models 2603 Gateway Router is the ideal solution for
connecting any small to medium-sized enterprise or remote
office to an IP/Internet network using standard telco and
WAN interfaces.
Combining ease-of-use with a full suite of LAN/WAN routing
features, the IPLink routers provide selectable bridging or rout-
ing functionality along with advanced IP features such as
NAT/NAPT, Firewall, and DHCP. A complete set of configurable
FR/PPP/IP WAN protocols allow a wide range of choices
when connecting branches via common WAN services. The
IPLink Routers boast easy installation offering Console/VT-
100, Telnet, and HTTP/SNMP management options.
The IPLink 2603 come with an auto-sensing full-duplex
10/100Base-T Ethernet port, cross-over switch, and internal
power supply. The Model 2603 is equipped with an integrat-
ed T1/E1 CSU/DSU for connection to full and fractional
T1/E1 services.
Patton's new series of high-speed routers offer the versatili-
ty and reliability demanded for business-class applications at
the most affordable price.
Why use our IPLink Router?
Patton's IPLink 2603 Gateway router delivers all the
advanced features for secure, reliable, and high speed Internet
data connections. It combines ease-of-use with powerful data
routing to make shared Internet connectivity simple and easy.
With NAT support, the IPLink router offers convenient and
economical operation by using a single IP address while the
integrated DHCP server automates IP address assignment for
connected LAN computers. Security is standard with built-in
firewall and violation alerting features that protect the net-
work from would-be intruders.
Patton stands behind our products-we are the only compa-
ny in the industry offering free configuration support, free
technical services, and a minimum one-year warranty on all
our products.
S P E C I F I C AT I O N S
WAN Interface: T1/E1 (RJ-48C)
Ethernet Connection: Single-port
10/100Base-T switch, auto-sensing,
full/half-duplex operation, built-in MDI-X
Management: EIA-561 RJ-45 RS-
232, VT-100 CLI, TELNET, Embedded
WEB/HTTP, SNMP, Logging events: POST,
POST errors, line/DSL, PPP/DHCP.
Protocol: IP (RFC 741), TCP (RFC
793), UDP (RFC 768), ICMP (RFC 950),
ARP (RFC 826), BCP (RFC 1638) • IP
Router with RIP (RFC 1058), RIPv2 (RFC
2453), Integrated DHCP Server (RFC
2131 • Selectable IP leases and
MAC/IP pairings • DHCP relay agent
(RFC 2132/RFC 1542) with 8 address
pools. DNS Relay. IGMP v1 and v2 •
Ethernet Bridging • NAT/NAPT with
integrated application support, MultiNat
with 1:1 mapping, Many:1, Many:Many
mapping, NAT Port/IP redirection and
mapping
Security: DoS Detection/protection.
Intrusion detection, Logging of session,
blocking and intrusion events and Real-
Time alerts, Password protected system
management with a username/password
for console and virtual terminal, Packet
filtering firewall for controlled access to
and from LAN/WAN • Support for 255
rules in 32 filter sets • 16 individual
connection profiles • Access list deter-
mining up to 5 hosts/networks which are
allowed to access management system
SNMP/HTTP/TELNET
Indicators: 12 LEDs: Power, Link,
Loss, Loop, Back-Up WAN signals; Link,
TX, RX LAN signals
Power Supply: Internal universal
90-260 VAC input or 48 VDC input.
Compliance: FCC Part 15A, CE
Mark, EMC Directive 89/336/EEC, Low-
Voltage Directive 73/23/EEC, EN60950,
EN55022 (CISPR 22) • FCC part 68.
Environment: Temp.: 32–122°F
(0–50°C) • Humidity: 5-90%, non-con-
densing
Dimensions: 7.3 x 6.6 x 1.62 inch
(185 x 168 x 41 mm)
O R D E R I N G I N F O R M A T I O N
2603/K/EUI
: E1 (RJ-45/BNC) Router with external UI power supply
2603/K/48
: T1/E1 (RJ-45/BNC) Router with 48-VDC power supply
2603/T/EUI
: T1 (RJ-45) Router with external UI power supply
2603/T/48
: T1/E1 (RJ-45) Router with 48-VDC power supply

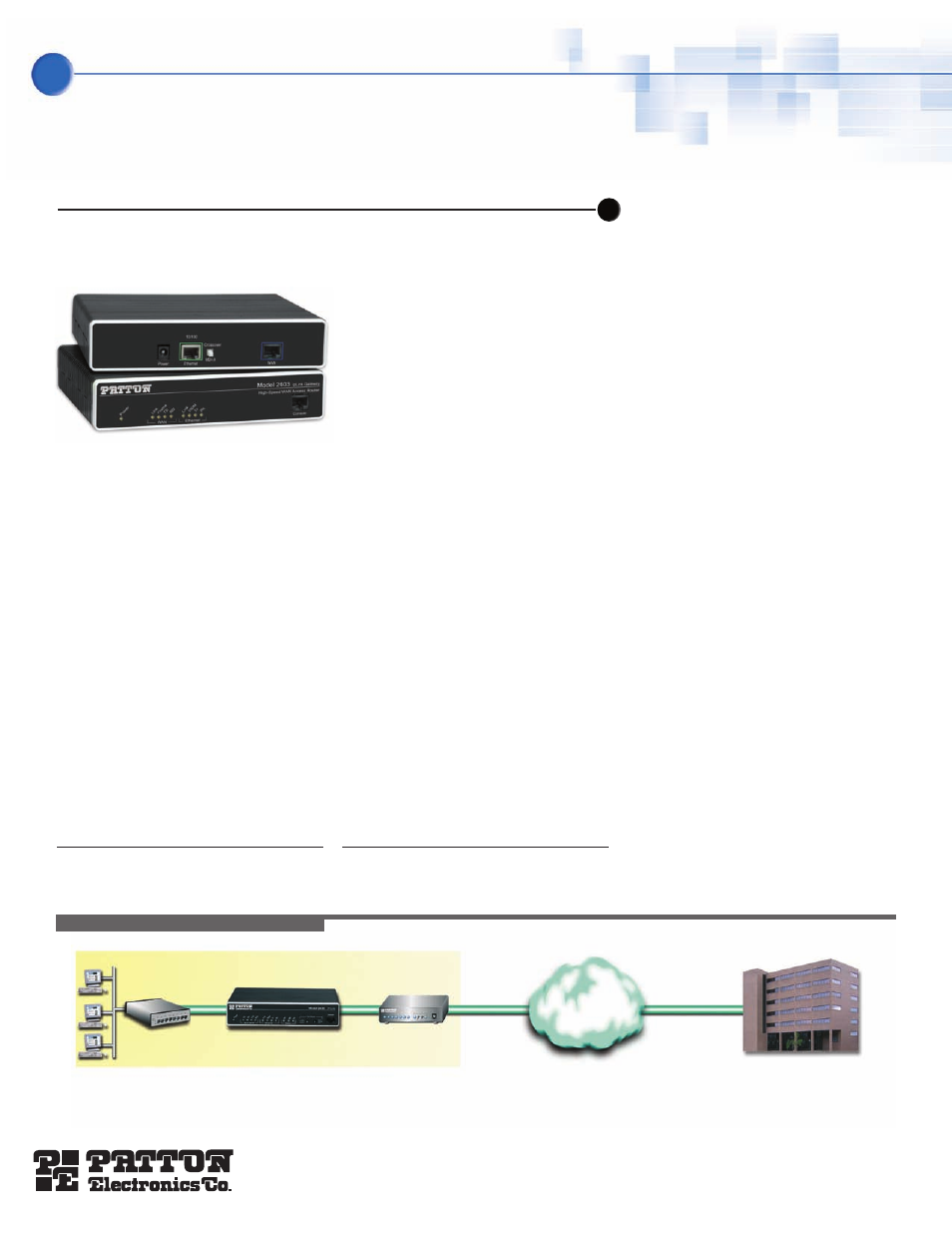

Application diagram
IPLink 2603
Hub
NTU
ISP
IP/FR
