Connecting up 03
19
En
English
Français
Deutsch
Nederlands
Italiano
Español
Using the component video jacks
Component video should deliver superior picture quality when compared to composite video. A
further advantage (if your source and TV are both compatible) is progressive-scan video, which
delivers a very stable, flicker-free picture. See the manuals that came with your TV and source
component to check whether they are compatible with progressive-scan video.
Important
• If you connect any source component to
the receiver using a component video
input, you must also have your TV
connected to this receiver’s COMPONENT
VIDEO OUT jacks.
1 Connect the component video outputs of
your source to a set of component video
inputs on this receiver.
Use a three-way component video cable for the
connection.
2 If necessary, assign the component video
inputs to the input source you’ve connected.
This only needs to be done if you didn’t
connect according to the following defaults:
• COMPONENT VIDEO IN 1 – BD/DVD
• COMPONENT VIDEO IN 2 – TV/SAT
See The Input Assign menu on page 44 for
more on this.

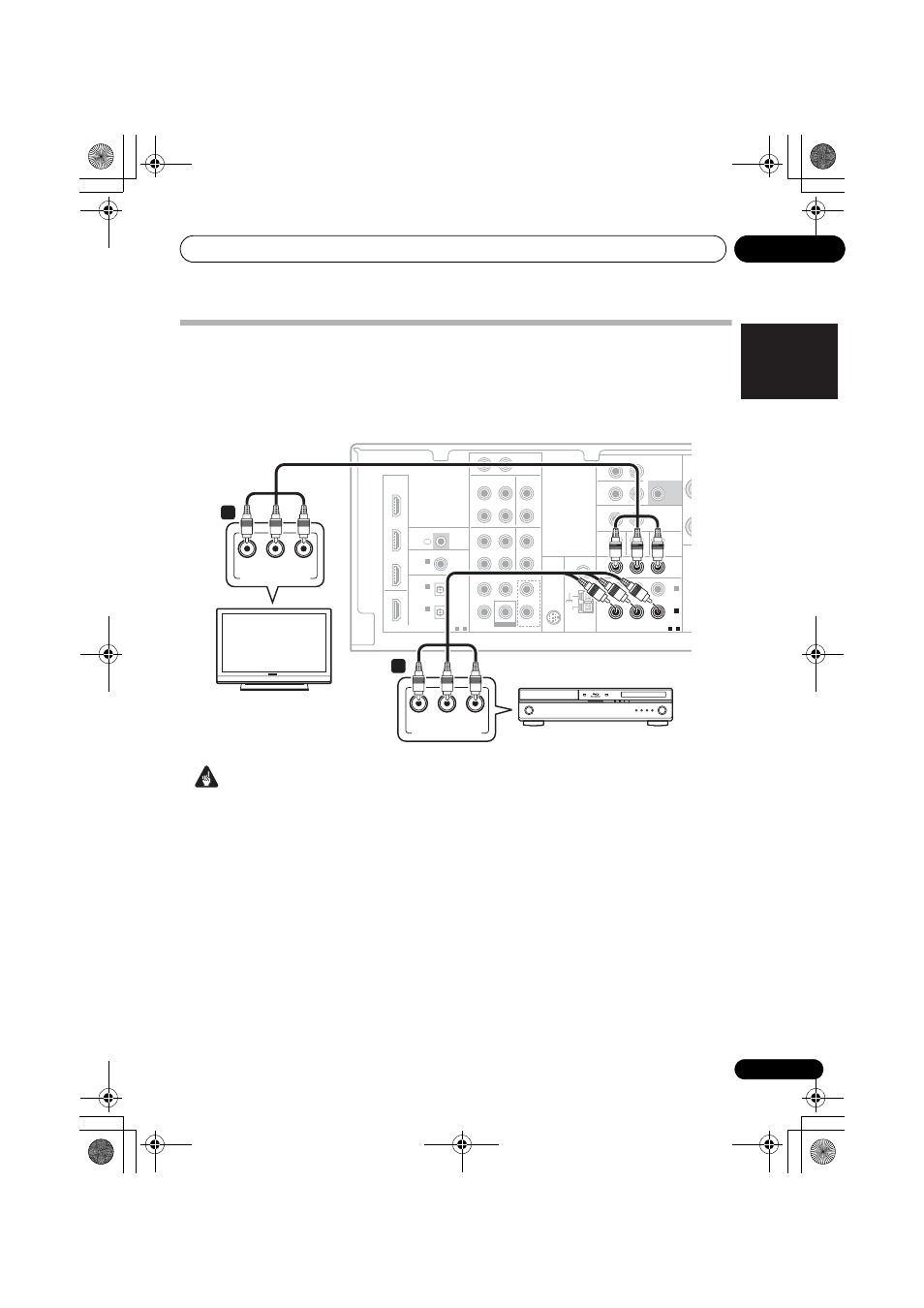

3 Connect the COMPONENT VIDEO OUT
jacks on this receiver to the component video
inputs on your TV or monitor.
Use a three-way component video cable.
AUDIO DIGITAL COMPONENT VIDEO BD/DVD MULTI CH IN
BD/DVD IN
HDMI
ANTENNA
FM
UNBAL
75 Ω
AM
LOOP
FRONT
L
R
L
R
CENTER SURROUND
COAXIAL
(CD)
IN 1
SPE
SP
(CD-R/TAPE)
IN 1
1 - 2
(AUX)
IN 2
(BD/DVD)
IN 1
(TV/SAT)
IN 2
OPTICAL
ASSIGNABLE
IR
ASSIGNABLE
1 - 2
ASSIGNABLE
OUT
OUT
Y P B P R
IN
SURROUND
BACK
ZONE2
OUT
MONITOR OUT BD/DVD IN TV/SAT IN
L (Single) R
PRE OUT
SUBWOOFER
PRE OUT
L R
IN
SIRIUS
DVR/VCR TV/SAT
OUT IN DVR/VCR VIDEO
AUDIO
L
L
R
R AUX
IN
OUT
DVR/VCR
IN
TV/SAT
IN
BD/DVD
IN
OUT
IN IN
IN
CD-R/TAPE CD
SUBWOOFER
IN
COMPONENT VIDEO
(BD/DVD)
IN 1
1 - 2
ASSIGNABLE
OUT
Y P B P R
COMPONENT VIDEO OUT
P R Y P B
COMPONENT VIDEO IN
P R Y P B
1
2
This receiver
BD/DVD player
TV
