Page 13

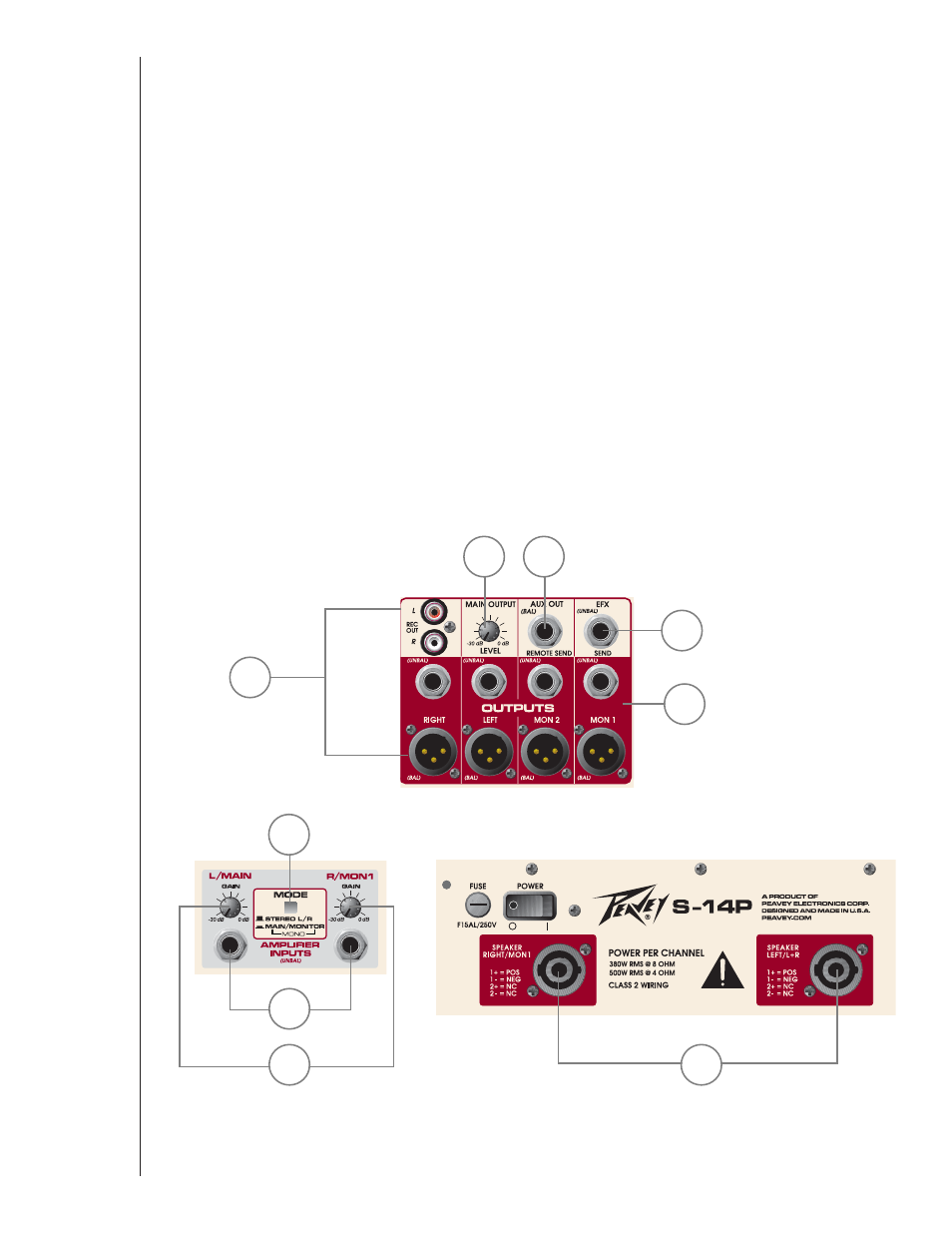

41. MONITOR OUT (XLR and

⁄

"):

⁄

" unbalanced and XLR balanced outputs of the monitor mix designed to

feed an external monitor amplifier (Pin 2 is positive). The output level (nominal +4 dBu) is set by the
individual channel, monitor-send controls and by the master monitor fader.

42. MAIN OUTPUTS (XLR and

⁄

"):

⁄

" unbalanced and XLR balanced outputs of the Left and Right mixes.

The output level is set by the master Left and Right faders. The nominal levels are +4dBu.

43. AC MAINS INPUT: Connect the line cord to this connector to provide power to the unit. Damage to the

equipment may result if improper line voltage is used. Operate only with the specified AC input voltage applied.

S-14P Model Features Only

44. LEFT AND RIGHT POWER AMPLIFIER INPUTS:

⁄

" unbalanced left and right inputs. Connecting to

these inputs disconnects the mixer from the power amplifier.

45. POWER AMPLIFIER MODE SWITCH: This switch determines the function of the two internal power

amplifiers. In LEFT/RIGHT mode, the amplifiers receive their signal from the main left and right outputs.
Depending on the setting of the CONFIGURATION switch, the amplifiers will be stereo or dual mono zone
outputs. In MAIN/MONITOR mode, the Left amplifier receives a mono sum of the left and right mixer
outputs. The right amplifier receives the monitor 1 output.

46. AMPLIFIER INPUT LEVEL CONTROLS: These controls set the input level to the power amplifiers and

are used to match nominal operating levels of the mixer to the power amplifier inputs.

47. AMPLIFIER OUTPUT CONNECTORS: Speakon output connectors. Connections made to 1+ 1-. These

connectors are compatible with Neutrik NL2FC and NL4FC cable connectors.
