Connecting up 02
19
En
• You usually have to connect the same
kind of video cable between your DVD
player and AV receiver, and between your
AV receiver and TV.
Connecting using a digital audio
output
Connect the optical or coaxial digital outputs
if you want to use an external decoder or the
decoder in your AV receiver.
To be able to play SACDs and multichannel
DVD-Audio discs, you should also connect
the 5.1 channel analog outputs (
Connecting
using the multichannel analog outputs
above).
If your AV receiver doesn’t have 5.1 channel
analog inputs, make a stereo analog connec-
tion.

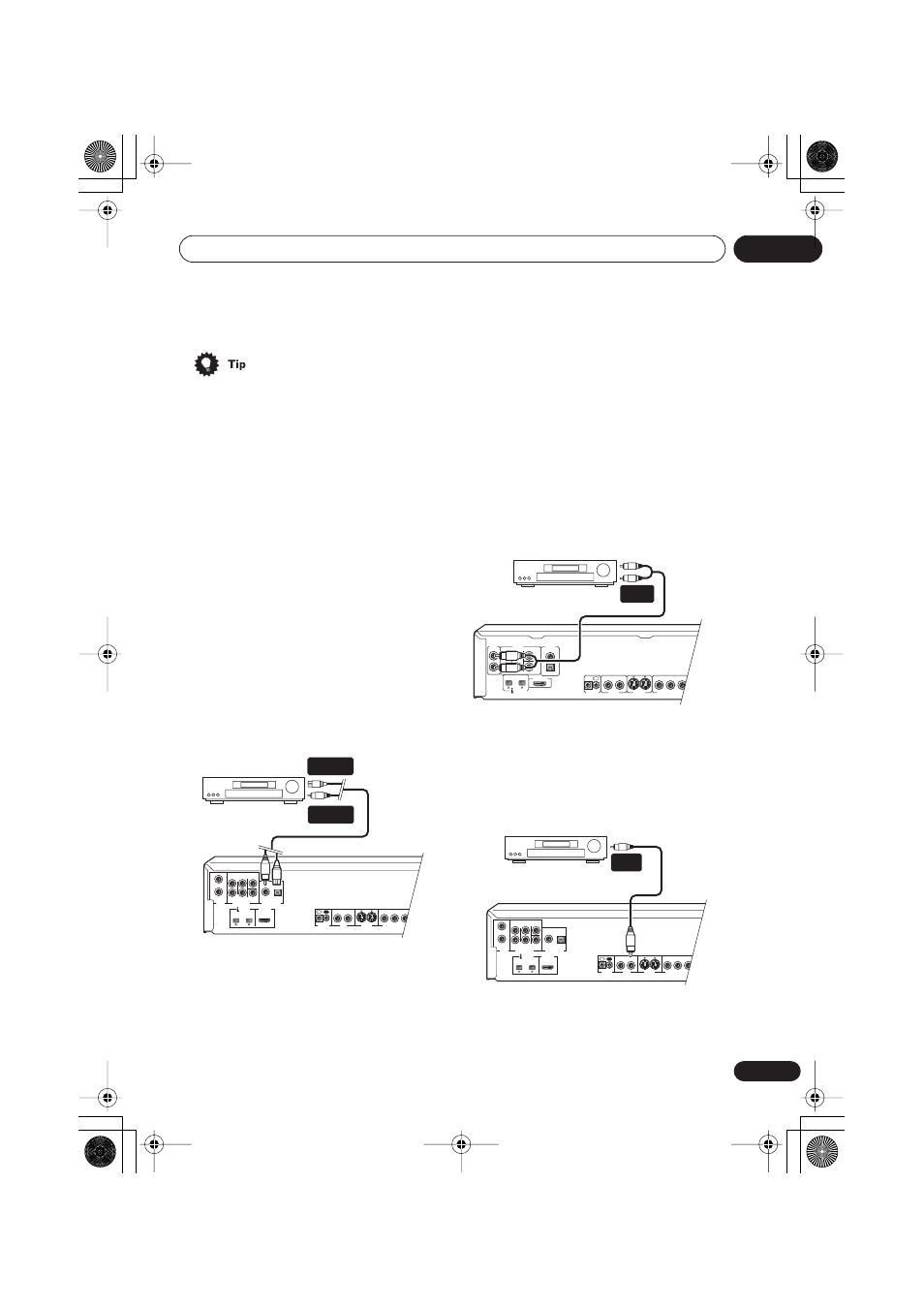

1 Connect one of the DIGITAL OUT jacks
on this player to a digital input on your AV
receiver.
Optical connection: Use an optical cable
(not supplied) to connect the OPTICAL
DIGITAL AUDIO OUT jack to an optical input
on your AV receiver.
• When inserting the plug, the protective
shutter will open and you should hear the
plug click into position when fully
inserted. Take care not to force the plug
as this may damage the shutter, the cable
and/or the player.
Coaxial connection: Use a coaxial cable
(similar to the supplied video cable) to
connect the
COAXIAL DIGITAL AUDIO OUT
jack to a coaxial input on your AV receiver.
2 If you didn’t connect the 5.1 channel
analog outputs, connect the AUDIO OUT
(2ch) jacks on this player to a stereo
analog input on your receiver.
• You can also use the AUDIO OUT 5.1ch
FRONT L/R jacks for the analog audio
connection.
3 Connect the VIDEO OUT jack on this
player to a video input on your AV
receiver.
AUDIO OUT (2ch) AUDIO OUT (5.1ch)
CONTROL
OPTICAL COAXIAL
IN
R
L L
R
CENTER
SUB WOOFER
SURROUND FRONT
S-VIDEO OUT VIDEO OUT COMPONENT VIDEO OUT
P B P R Y 2 1 2 1 (AUDIO)
S400
DIGITAL AUDIO OUT
HDMI OUT OUT
AV receiver
DIGITAL IN
OPTICAL
DIGITAL IN
COAXIAL
AUDIO OUT (2ch)
AUDIO OUT (5.1ch)
CONTROL
OPTICAL
COAXIAL
IN OUT
R
L L
R
CENTER
SUB WOOFER
SURROUND FRONT
S-VIDEO OUT VIDEO OUT COMPONENT VIDEO OUT
P B P R Y 2 1 2 1
(AUDIO)
S400
DIGITAL AUDIO OUT
HDMI OUT
AV receiver STEREO
AUDIO IN
AUDIO OUT (2ch) AUDIO OUT (5.1ch)
CONTROL
OPTICAL COAXIAL
IN
R
L L
R
CENTER
SUB WOOFER
SURROUND FRONT
S-VIDEO OUT VIDEO OUT COMPONENT VIDEO OUT
P B P R Y 2 1 2 1 (AUDIO)
S400
DIGITAL AUDIO OUT
HDMI OUT OUT
AV receiver
VIDEO
INPUT
