Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 3 - 1
INSTALLATION GUIDES
CAUTION: Before any installation or cable connection to the set, please always
make certain that the system is turned off and the external power
source to the set is removed to prevent electric hazard! Never touch
any metal pin in the connectors or circuits to avoid high voltage
hazard or electrostatic discharge damage unless the operator is well
grounded. Failure to do the above will void the product warranty!
SEPARATING MAIN UNIT
In order
to settle the
touch terminal
properly in a
point of sale
system, all the
cable connections have to be routed through its base, the stand assembly. Therefore,
please press the lock/release button at the rear side to separate the main unit from the
stand assembly after all cables in cable cover disconnected.
However, in view of the mass distribution of the whole assembly, it is most
recommended to lay the system facing down on front panel over a soft clean flat
surface first, such as a piece of cloth on the desk. Press the button and slide the stand
assembly downward (as viewed from the main unit) to detach the stand assembly
away from the back of the main unit could then be an easier operation. This approach
can also be applied when later on the main unit and the stand assembly have to be
reunited.

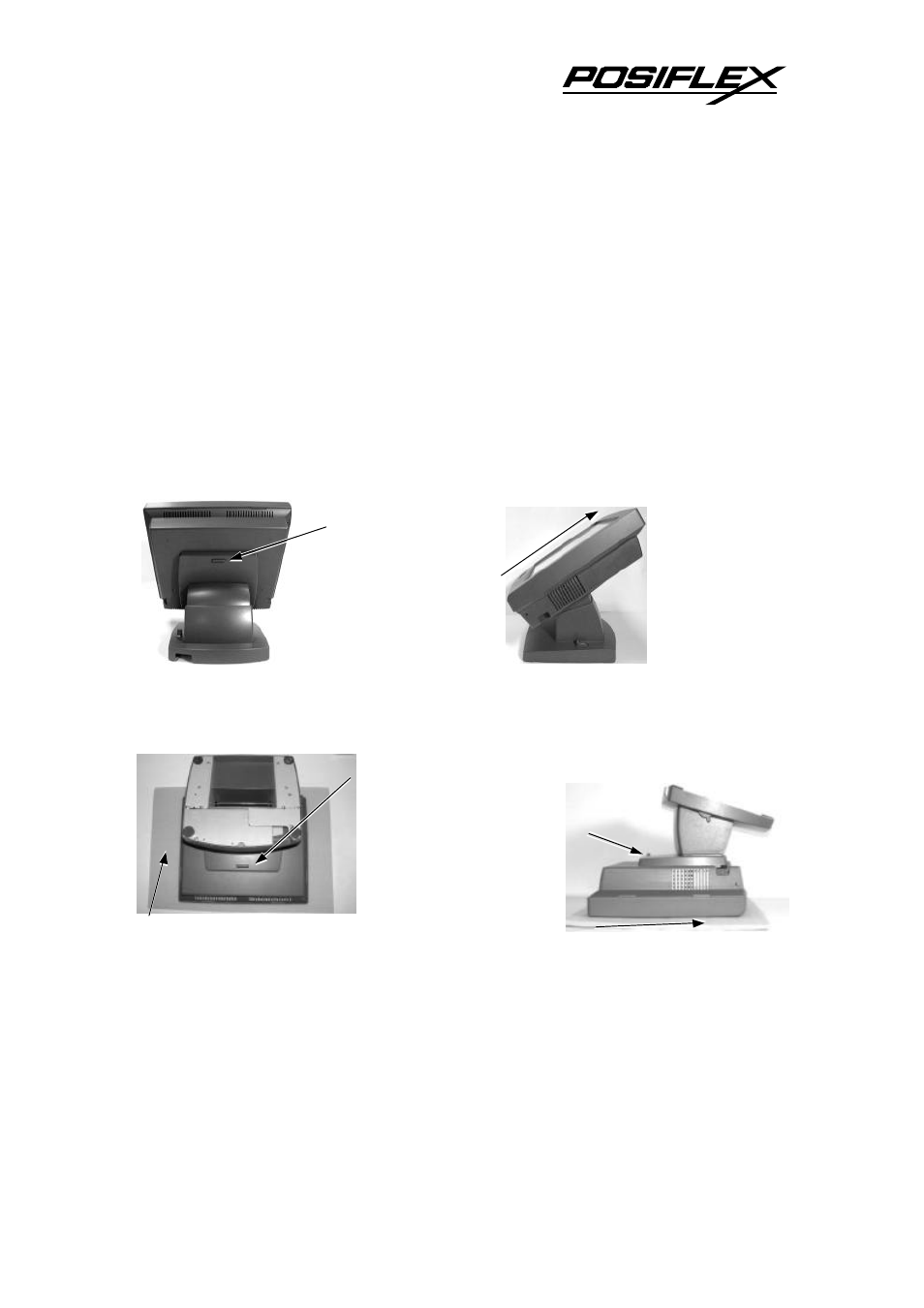

Press the Lock/Release button
and lift the main unit to
detach it from the
stand assembly.
Press the Lock/Release button and slide the stand
assembly downward (as viewed from
the main unit) to detach it from
the main unit.
A soft clean flat surface, such as a piece of cloth on the desk.
