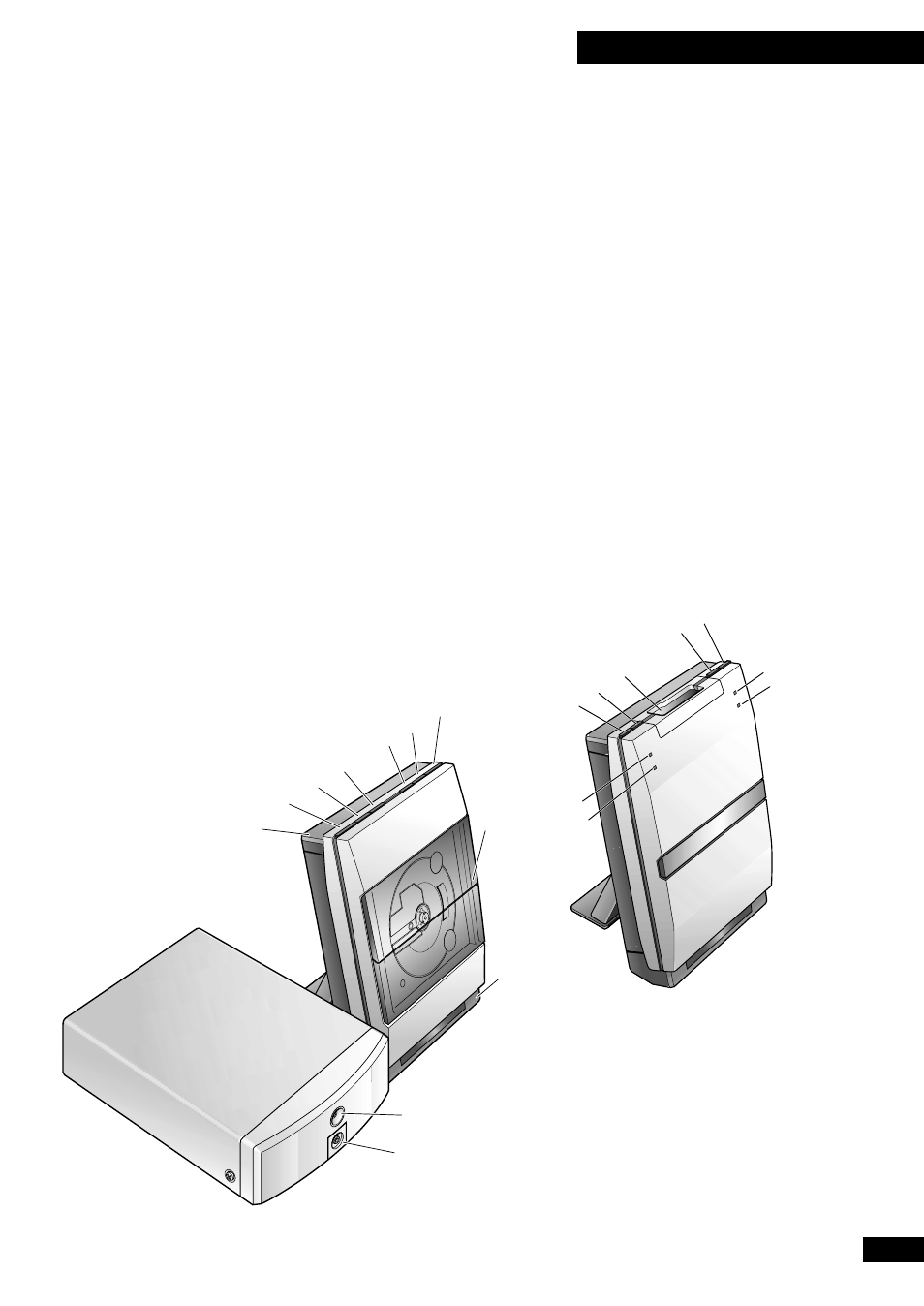

3 Controls and Displays
CD-tuner
1 Top cover – Remove to access the antenna terminals and
auxiliary inputs
2 STANDBY/ON – Press to switch the system on or into
standby
3 VOL – – Use to reduce the volume
4 VOL + – Use to increase the volume
5
7
– Press to stop the currently playing CD
6
6 – Press to start CD playback, or pause a disc that’s
already playing (press again to restart)
7 OPEN/CLOSE – Press to open/close the disc
compartment
8 Disc compartment – The disc compartment
automatically opens when you move your hand near
9 Standby indicator – Lights when the system is in
standby.
Amplifier
1 Power indicator – lights when the system is on
2 Headphone jack – plug in a pair of headphones for
private listening (the sound from the speakers is muted when
headphones are plugged in)
ST AN DB Y
2
3
4
5
6
7
1 8
9
2
1
Tape deck
(For UK model only)
1
23 – Press to play a tape or reverse a tape that’s already
playing.
2
7
– Press to stop a tape.
3 Cassette tape slot.
4
¶8 –
Press to put the unit into record-pause.
5
0 – Press to eject a tape.
6 Play indicator – Lights when a tape is playing.
7 Endless play indicator – Lights when the reverse mode
is set to Endless
(reverse mode is One Way if not lit).
8 REC – Lights when recording or in record-pause.
9 DOLBY NR – Lights when Dolby Noise Reduction is
switched on.
• Dolby noise reduction manufactured under license
from Dolby Laboratories.
• “Dolby”, and the double-D symbol are trademarks of
Dolby Laboratories.
1
2
3
4
5
6
7
8
9
