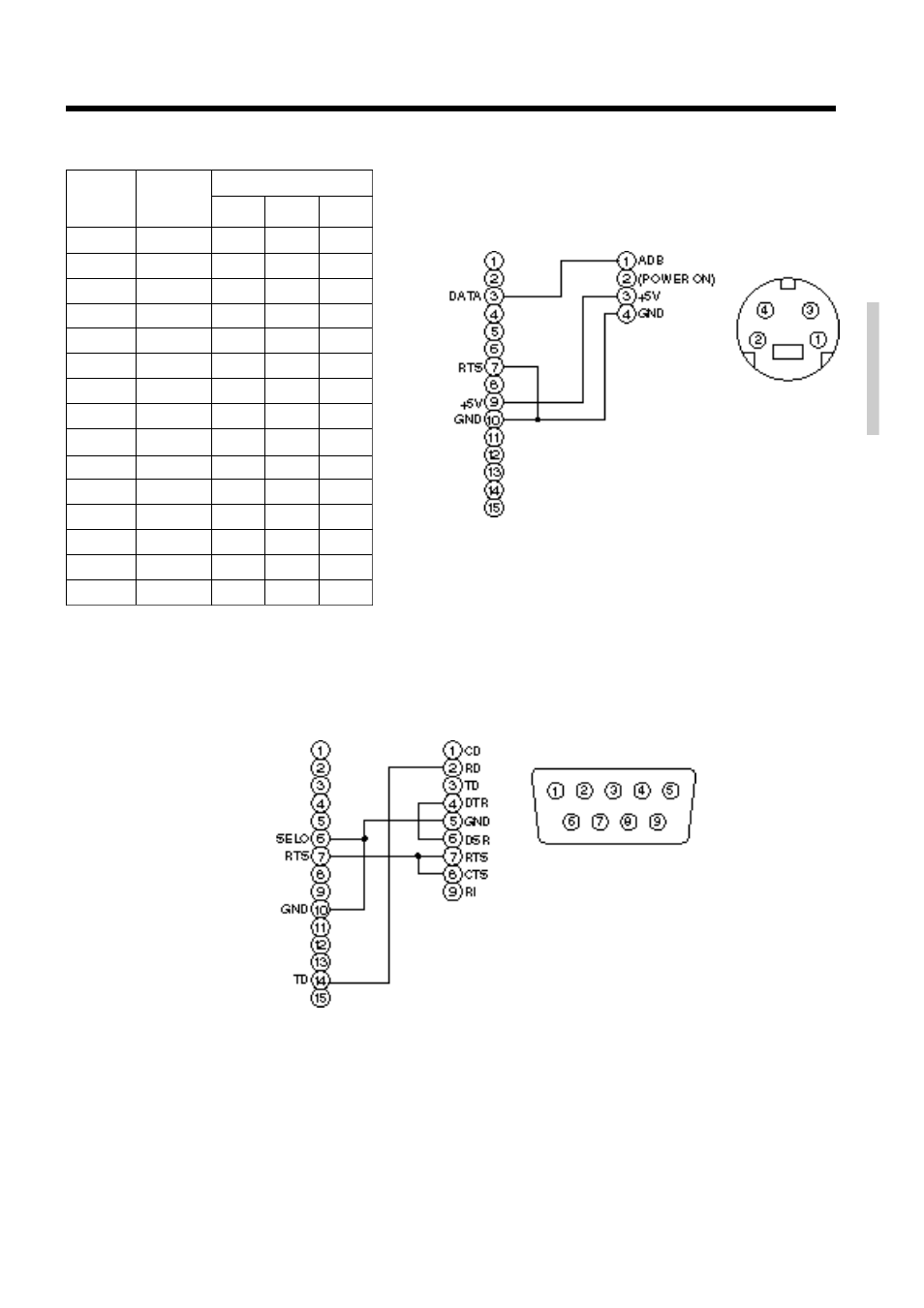

A n s chluß an die Steuers i g n a l bu chse (Fort s e t z u n g )
Steuersignalbuchse (CONTROL)
ADB-Maus (Mac)
Projektor Computer
Computer
Vierpolige Maus-
Minibuchse (DIN)
Mauskabel (ADB) (Option)
Serienmaus
Projektor Computer
9polige Mausbuchse
(D-sub)
Mauskabel (Serienkabel) (Option)
Stift-Nr. RS-232C
Maus
PS/2 ADB Serial
1
2 CLK
3 DATA DATA
4
5
6 SELO SELO SELO
7 RTS RTS RTS RTS
8
9 +5V +5V
10 GND GND GND GND
11
12
13 RD
14 TD TD
15
Computer
