Focus or flange- back adjustment, Focus or flange-back adjustment – Panasonic WV-C L924A User Manual
Page 16
The following adjustment should be made by qualified
service personnel or system installers.
1. Loosen the screw on the side of the camera.
2. Turn the flange-back adjusting ring to the desired
position.
Note:
Adjusting a focus in the visible rays may be
soft-focused with the near-infrared light.
-16-

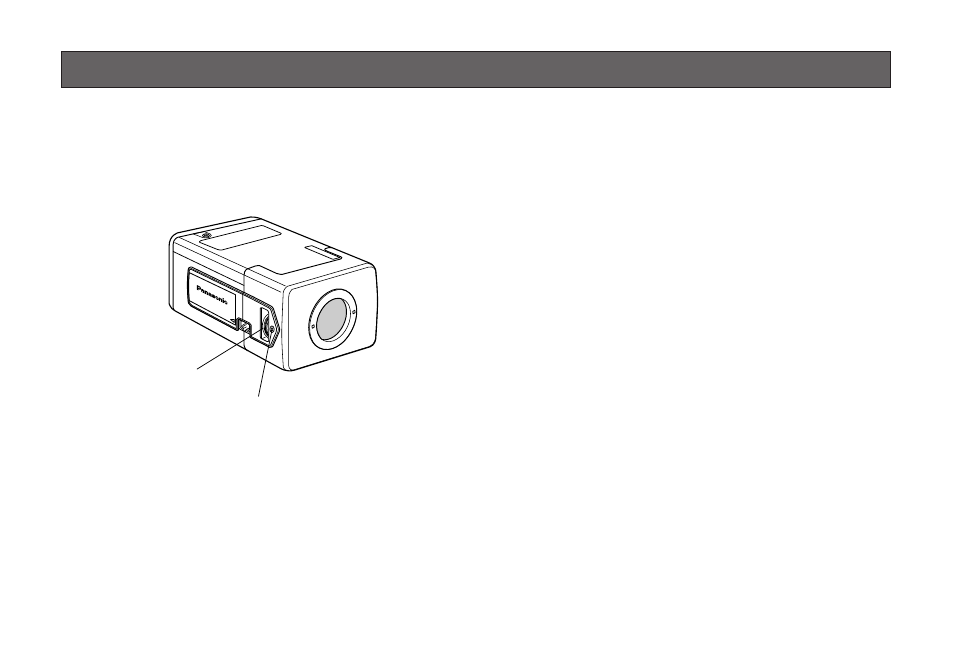

Screw
Flange-back
Adjusting Ring
3. Tighten the screws on the side of the camera.
Caution:
Tightening the screw by force will cause
damage to the screw or deviation of focus.
FOCUS OR FLANGE-BACK ADJUSTMENT
