CHAPTER 7 RJ-45 PIN ASSIGNMENT
Pin
Numbered Ports
(MDI-X port)
Uplink Port (MDI-II port)
1 Input Receive Data + Output Transmit Data+
2 Input Receive Data - Output Transmit Data-
3 Output Transmit Data+ Input Receive Data +
6 Output Transmit Data- Input Receive Data -
4,5,7,8 Not used Not used

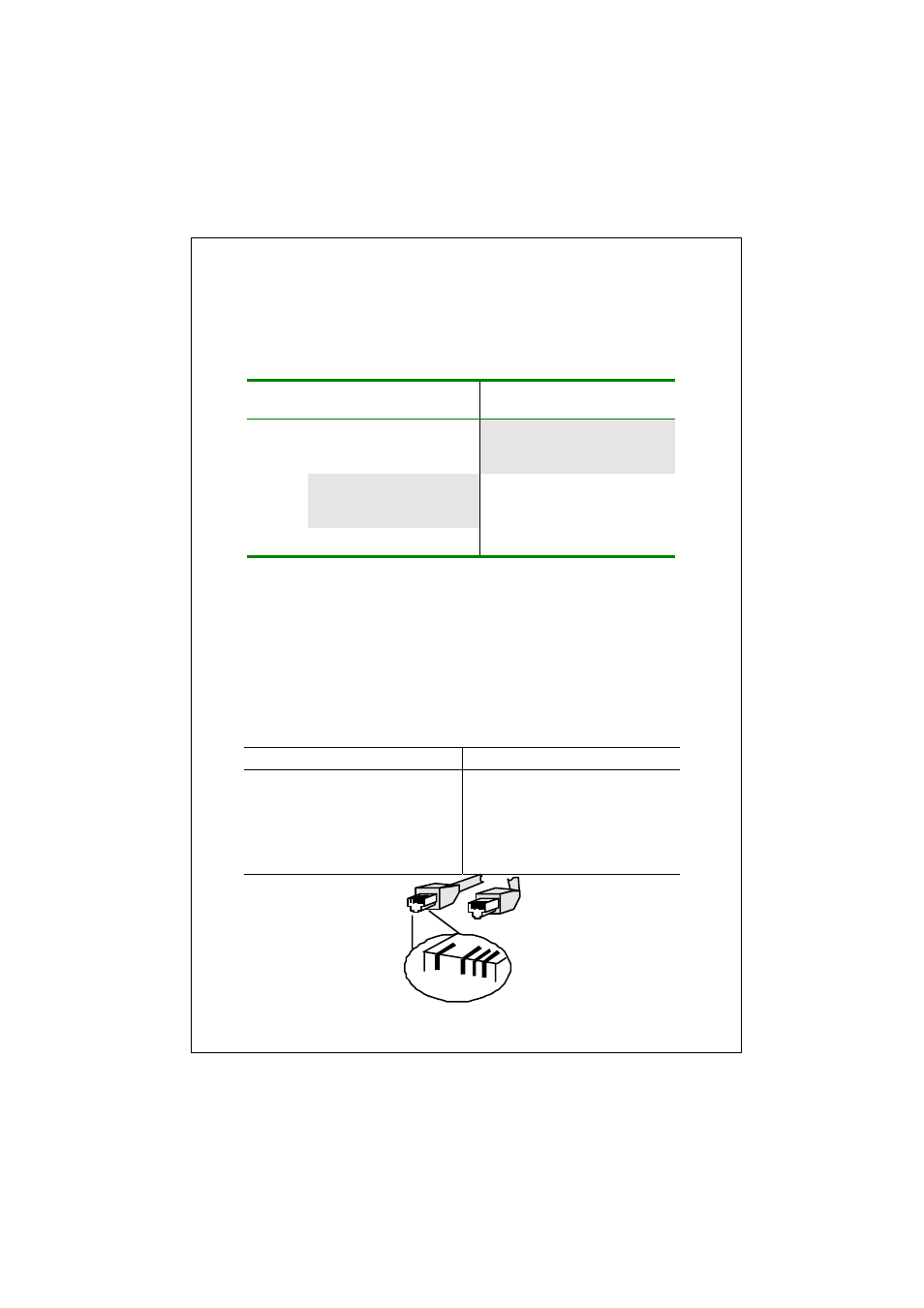

Schematics for both straight and crossover twisted-pair cable
are shown below. (Note that crossover cable is only required if
you cascade hubs via the RJ-45 station ports; i.e. the Uplink
port is not used.)
7.1 Straight-Through/Crossover Cable
The pin assignment of the cables both ends should be as be-
low:
Straight-through Crossover
Hub (MDI-X) Adapter(MDI-II) Hub (MDI-X) Hub (MDI-X)
Pin 1 Pin 1 Pin 1 Pin 3
Pin 2 Pin 2 Pin 2 Pin 6
Pin 3 Pin 3 Pin 3 Pin 1
Pin 6 Pin 6 Pin 6 Pin 2
2 1 3 6
1 2 3
6
2 1 3 6
