8 SmartNode 2290 Series Quick Start Guide
Connect with the serial interface
The Console port is wired as an EIA-561, RS-232 port. Use the included Model 16F-561 adapter and cable (see
figure 8 ) between the SmartNode’s Console port and a PC or workstation’s RS-232 serial interface. Activate the
terminal emulation program on the PC or workstation that supports the serial interface (e.g. HyperTerm).

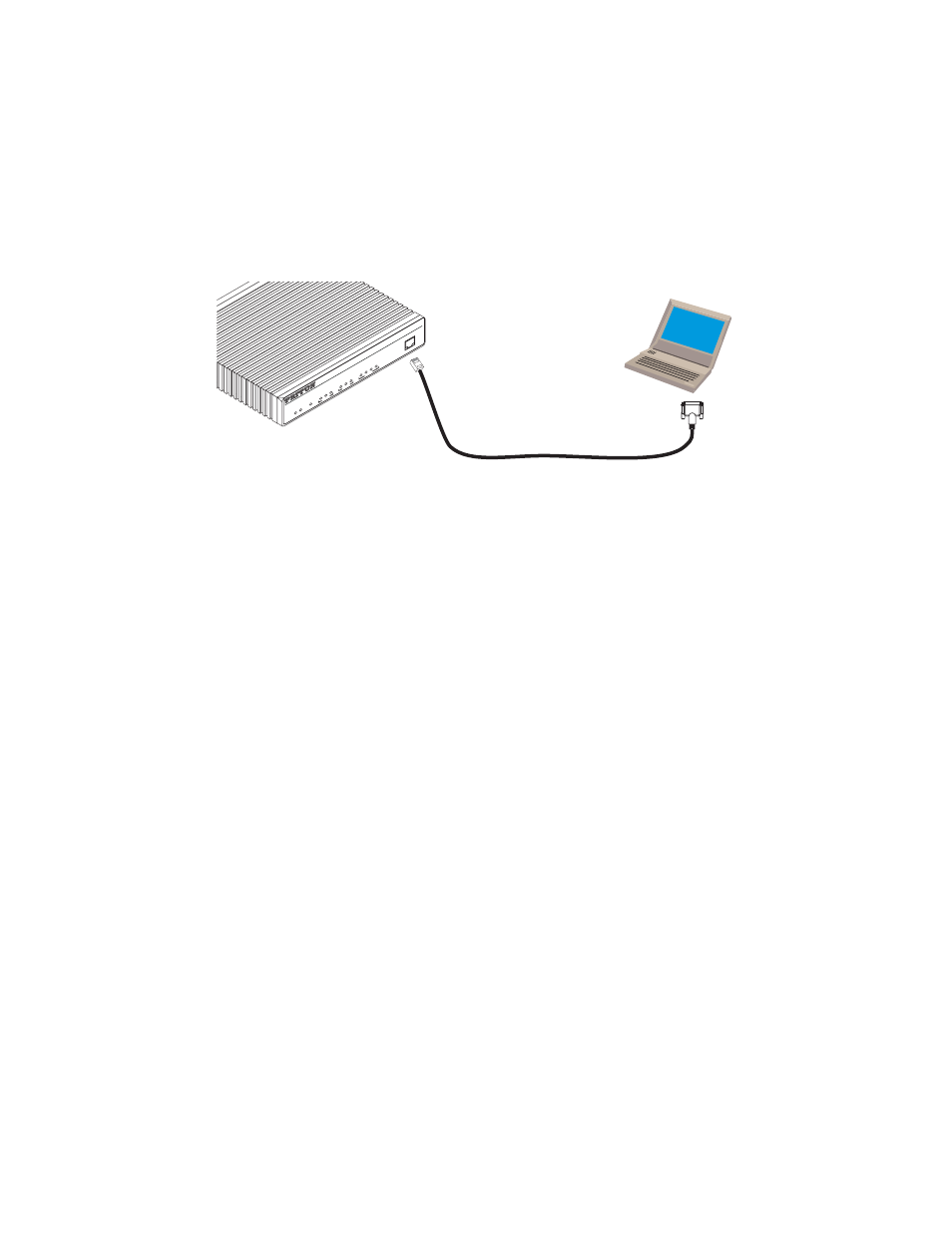

Figure 8. Connecting to the terminal
Terminal emulation program settings:
• 9600 baud
• no parity
• 8 bit
• 1 stop bit
• 1 start bit
• No flow control
Serial Terminal
Note A Patton Model 16F-561 RJ45 to DB-9 adapter is included with
each SmartNode Series device
