8. Windows 98 detects the USB modem automatically and displays
the message Add New Hardware Wizard , click Next to continue
(see Figure 8).

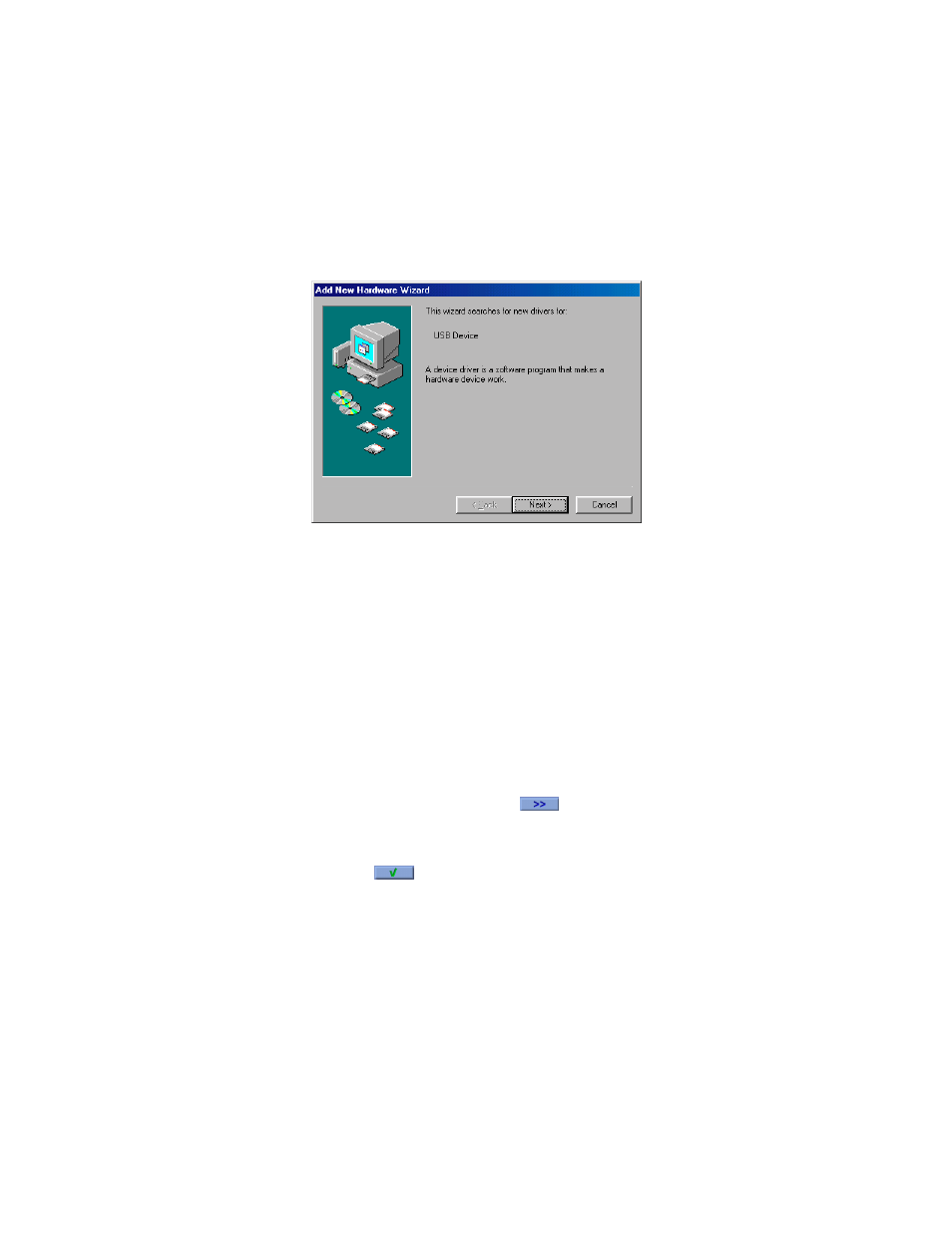

Figure 8. Add New Hardware Wizard window
Congratulations! The modem is installed.
3.2 SETTING UP THE MODEM IN WINDOWS ME
This section describes how to install your Model 2192 USB modem in
Windows. When installed, the installation should look like the diagram
shown in Figure 1 on page 7.
Note The connection diagram in Figure 1 on page 7 includes an
optional RJ-11 modular T adapter so the USB modem and a
telephone can share the same telephone wall jack. If you will not
be sharing the wall jack, it is not necessary to install a T adapter.
1. Insert the CD into your CD-ROM and the system will execute the
setup.exe automatically. The Modem Installation window (see
Figure 2 on page 8) will appear. Click to begin installing the
modem driver.
2. When the Setup Complete message displays (see Figure 3 on
page 8), Click .
3. Connect one end of the USB cable supplied with the modem to the
USB port on the modem (see Figure 4 on page 9).
4. Connect the other end of the cable to one of the PC’s USB ports.
The port is usually labeled with the symbol shown in Figure 5 on
page 9.
