7
3.0 INSTALLATION
This chapter contains the following sections that describe installing the
modem driver software:
• Section 3.1, “Setting Up the Modem in Windows 98” on page 7
• Section 3.2, “Setting Up the Modem in Windows ME” on page 11
• Section , “Congratulations! The modem is installed.” on page 12
• Section , “Congratulations! The modem is installed.” on page 13
3.1 SETTING UP THE MODEM IN WINDOWS 98
This section describes how to install your Model 2192 USB modem in
Windows. When installed, the installation should look like the diagram
shown in Figure 1.
Note The connection diagram in Figure 1 includes an optional RJ-11
modular T adapter so the USB modem and a telephone can
share the same telephone wall jack. If you will not be sharing the
wall jack, it is not necessary to install a T adapter.

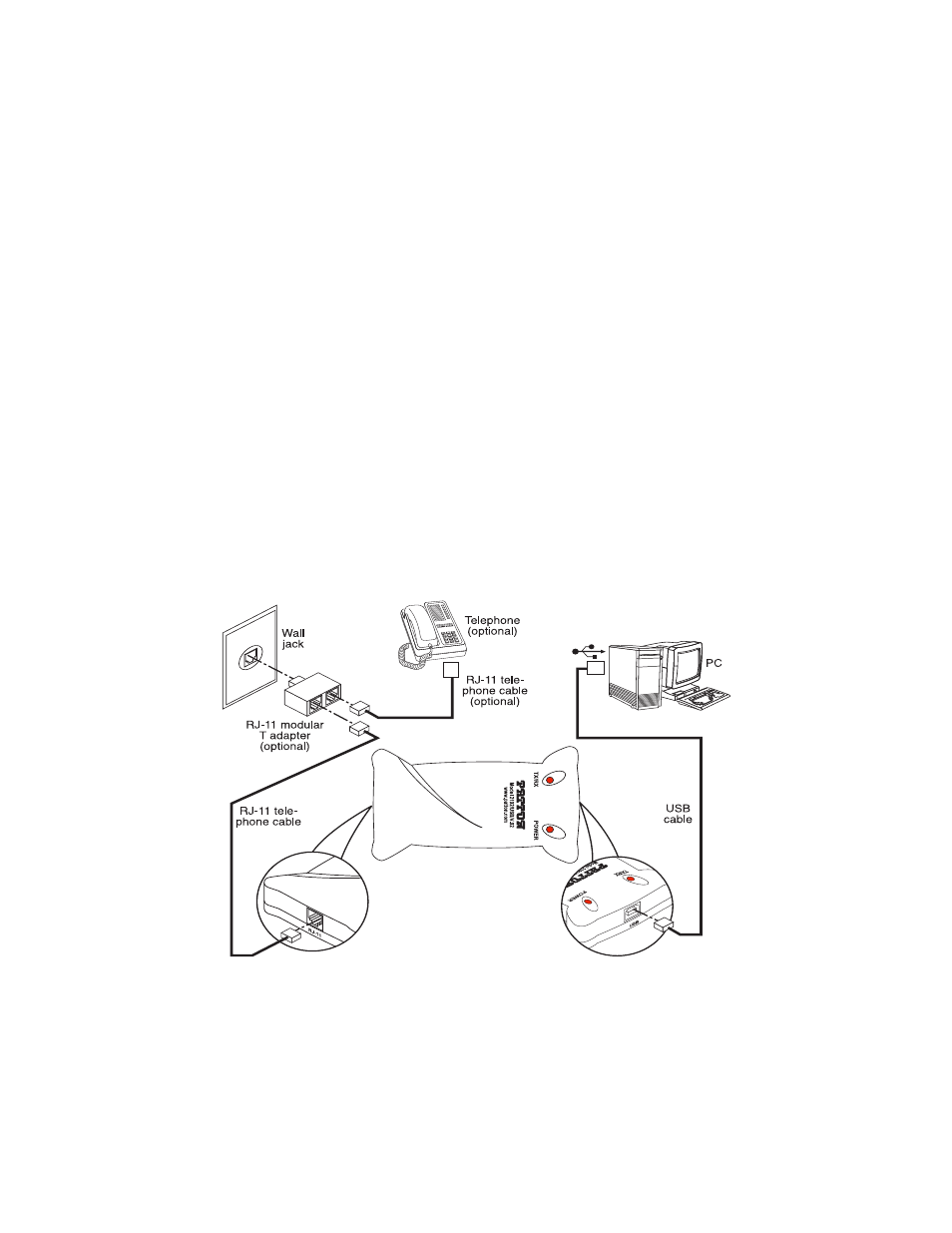

Figure 1. Connection diagram
