This connection is required if you want to make recordings
from an external CD player with a digital coaxial output.
1 For external recording, connect the cable 3 between the
DIGITAL IN-socket on the set and the DIGITAL OUT-socket
of an external CD player.
Note: Your set is equipped with a digital coaxial output
(common output for CD recorder & CD changer deck).
This output can be used for digital playback. (e.g.
Philips receiver FR960 or FR970.)
This connection is required if you want to make recordings
from an external CD player with a digital optical output.
When connecting the Digital
Optical cable, make sure it
is fully inserted until
there is a click.
1 Remove the dust caps from the digital optical connection.
(We recommend you save the cap.)
2 For external recording, connect a fibre-optic cable 4
between the digital optical input of the set and the digital-
optical output of an external CD player.
Note: For playback, the digital coaxial outputs or analog
outputs of the CD Changer and CD recorder should be
connected to an amplifier.
DIGITAL
IN OUT
ANALOG DIGITAL
IN OUT
OPTICAL
IN
L
R
TAPE/CDR
IN OUT
IN OUT
OPTICAL
OUT
1
4
RECEIVER/AMPLIFIER
CD RECORDER
CD PLAYER
2

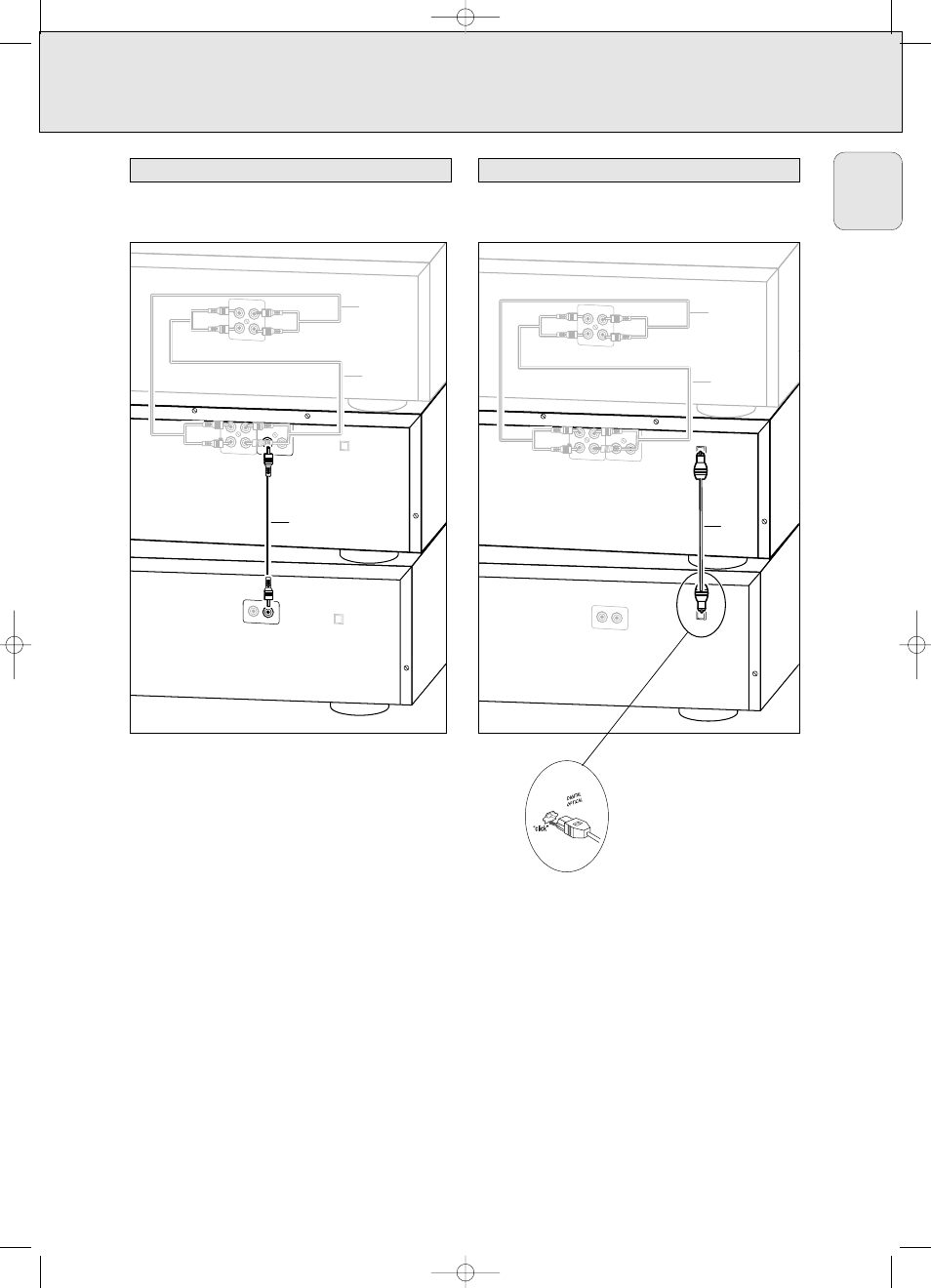

Digital optical connections
DIGITAL
IN OUT
ANALOG DIGITAL
IN OUT
OPTICAL
IN
L
R
TAPE/CDR
IN OUT
IN OUT
OPTICAL
OUT
1
3
RECEIVER/AMPLIFIER
CD RECORDER
CD PLAYER
2
Digital coaxial connections
